LLT M12 6pin Audio plug CCTV Cable Ip67 Quick Disconnect Cable Connector

Audio & Video Connector M12 Push-Lock Model: LLT-M12-05006F3034

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M12

Pin

6pin

IP Rating

IP65/IP67

Rated Current

5A

Rated Voltage

60V

Product Series

M12

Wiring Type

By molding

Interface Type

2 to 8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M12-6pin audio waterproof cable connector is specially designed for reliable audio signal transmission in wet, outdoor, or harsh environmental conditions. It integrates professional audio contact design with a high‑performance waterproof structure, ensuring clear, stable sound transmission while effectively blocking moisture, dust, and splash damage. Featuring corrosion‑resistant gold‑plated terminals, it provides low distortion, low noise, and excellent audio fidelity. The housing is made of durable or high‑strength engineering plastic, with a secure locking connection to prevent accidental disconnection under vibration or movement. It achieve IP65 to IP67 waterproof and dustproof protection, making them suitable for long‑term outdoor and humid‑environment use. With a compact structure and easy plug‑and‑play installation, it supports various audio equipment connections including speakers, microphones, mixers, outdoor audio systems, stage equipment, and marine audio devices. Stable, durable, and weatherproof, this connector ensures consistent audio performance even in challenging environments.

Application Fit

Typical application directions

  • Cable-to-cable transitions in outdoor and industrial equipment
  • Harness assemblies that need strain relief and overmold planning
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

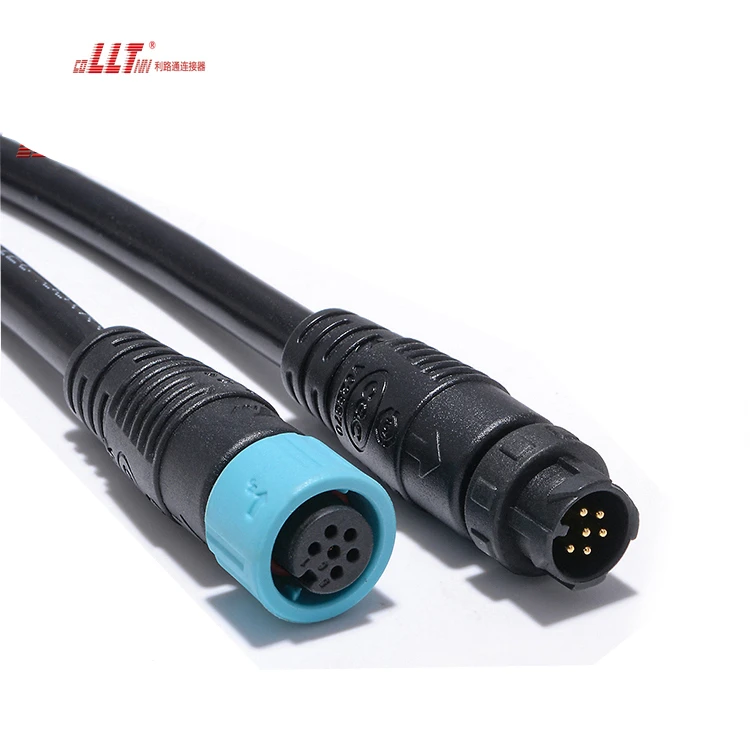

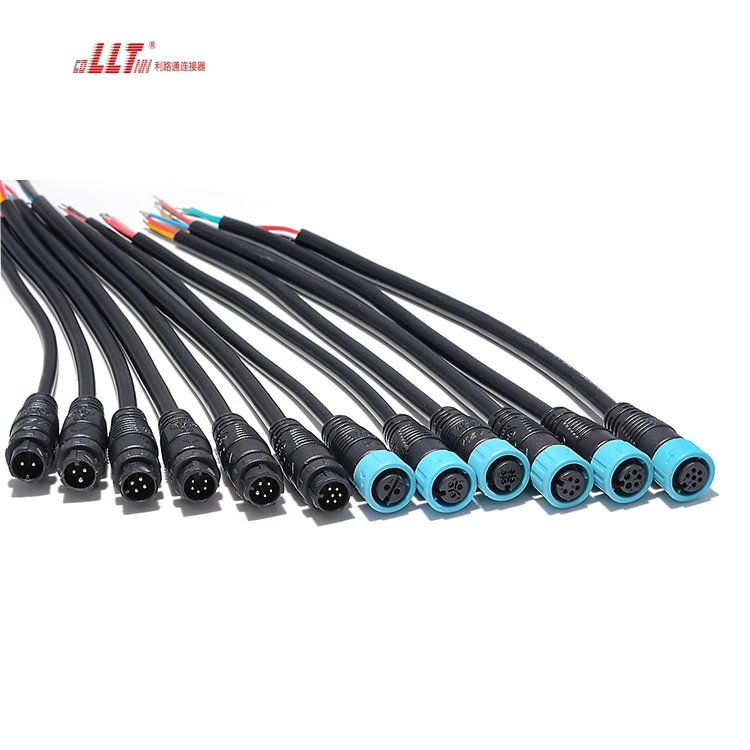

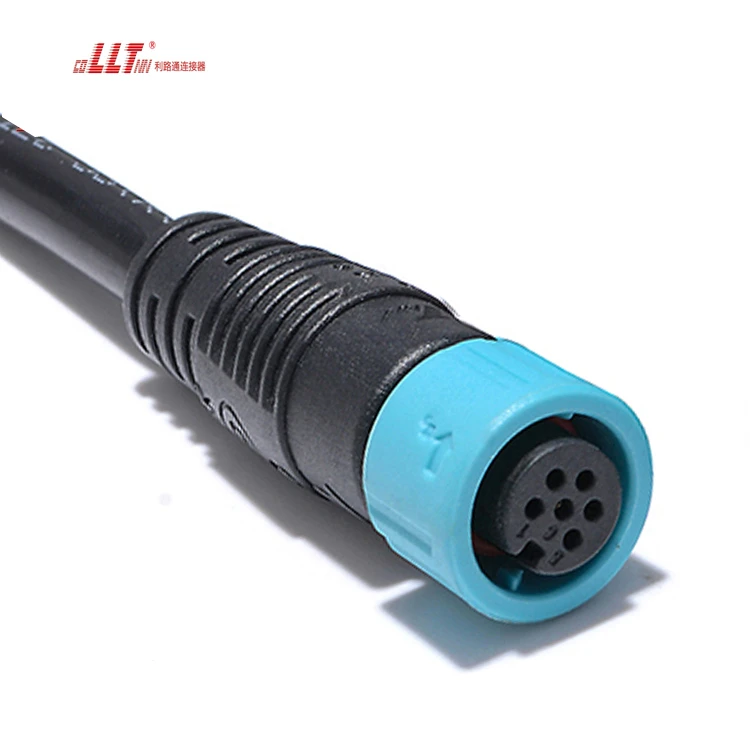

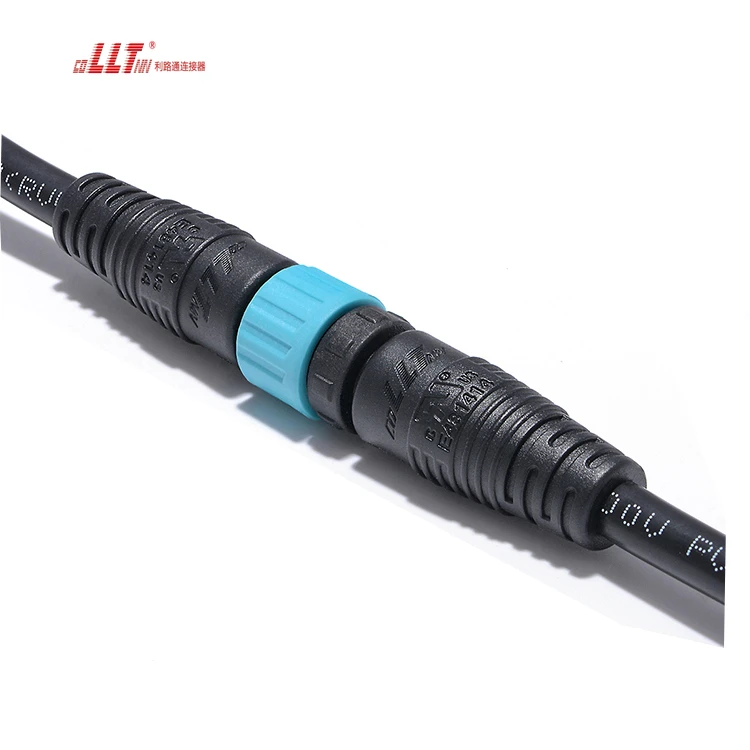

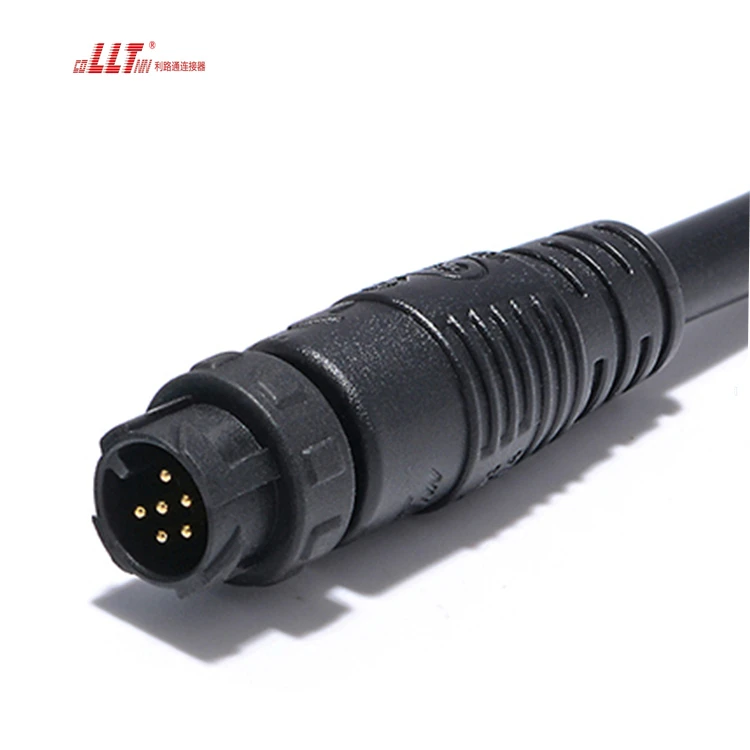

Visual Gallery

Product details, interface geometry, and cable integration views

Technical FAQ

What should be confirmed before selecting LLT M12 6pin Audio plug CCTV Cable Ip67 Quick Disconnect Cable Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT M12 6pin Audio plug CCTV Cable Ip67 Quick Disconnect Cable Connector is currently configured around 2 to 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M12 6pin Audio plug CCTV Cable Ip67 Quick Disconnect Cable Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
