5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 5pin pin layout, thread lock interface. Termination direction is soldering, which should be checked against the actual harness build.

20A Waterproof Connectors M25 Threaded Model: LLT-M25-20005M2861
M25 / Threaded 5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M25

Pin

5pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M25

Wiring Type

Soldering

Interface Type

Thread lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M25-5pin panel connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through thread lock. attach cable by solder.We have 6.5/8.5/11/13mm grommet can fit your different diameter sheath cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

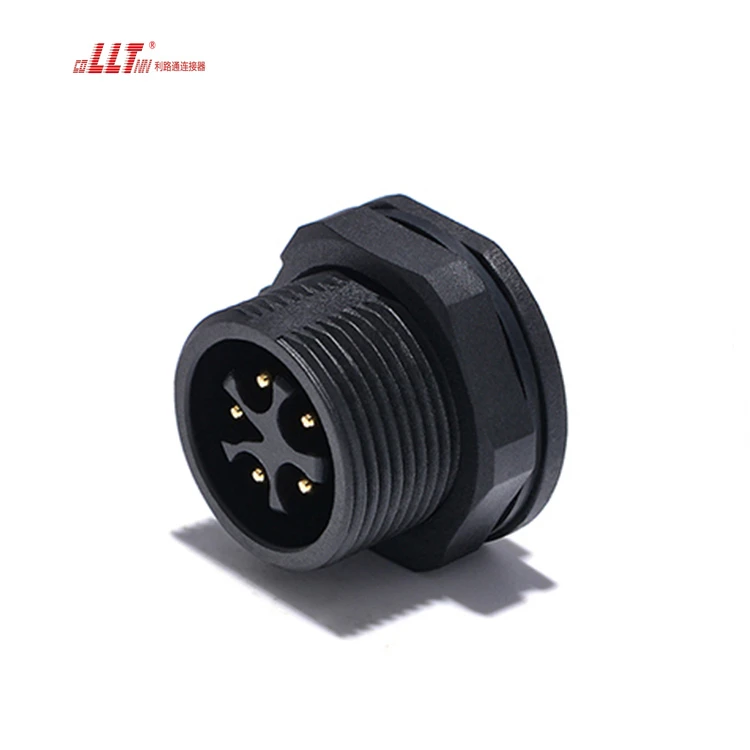

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 1

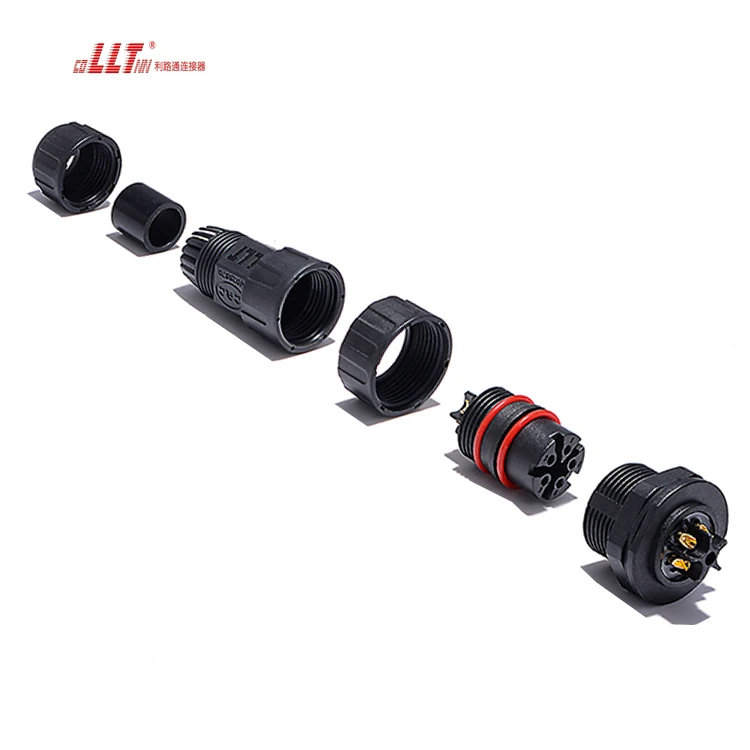

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 2

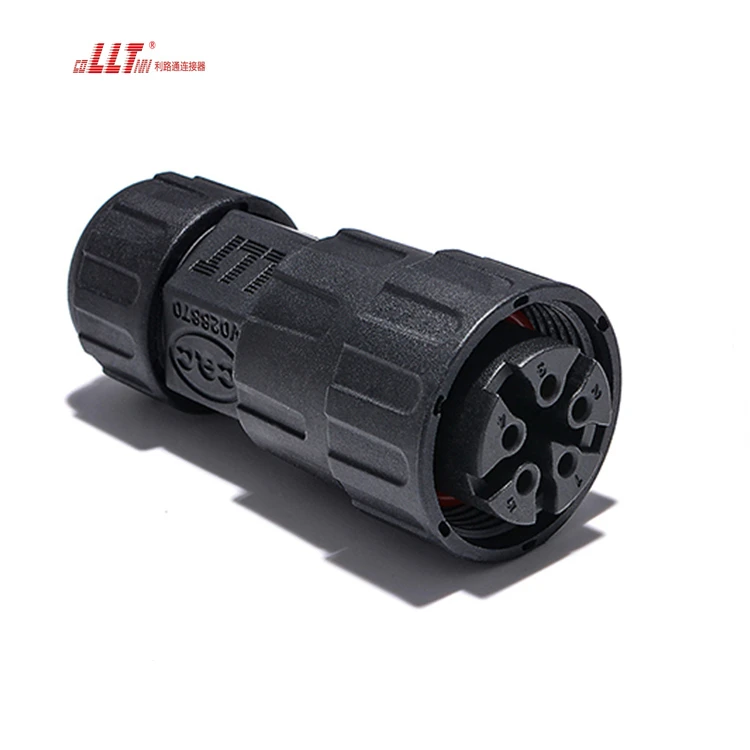

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 3

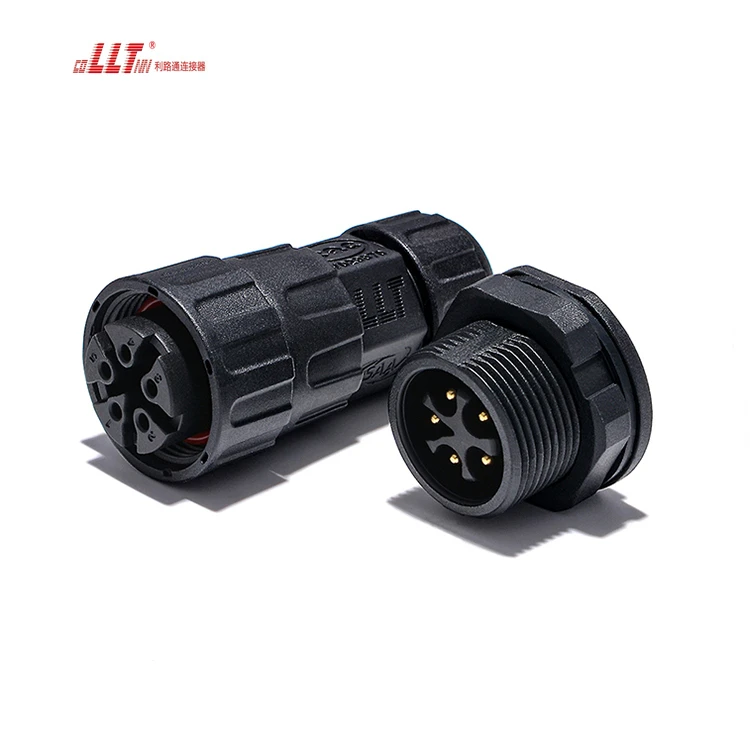

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 4

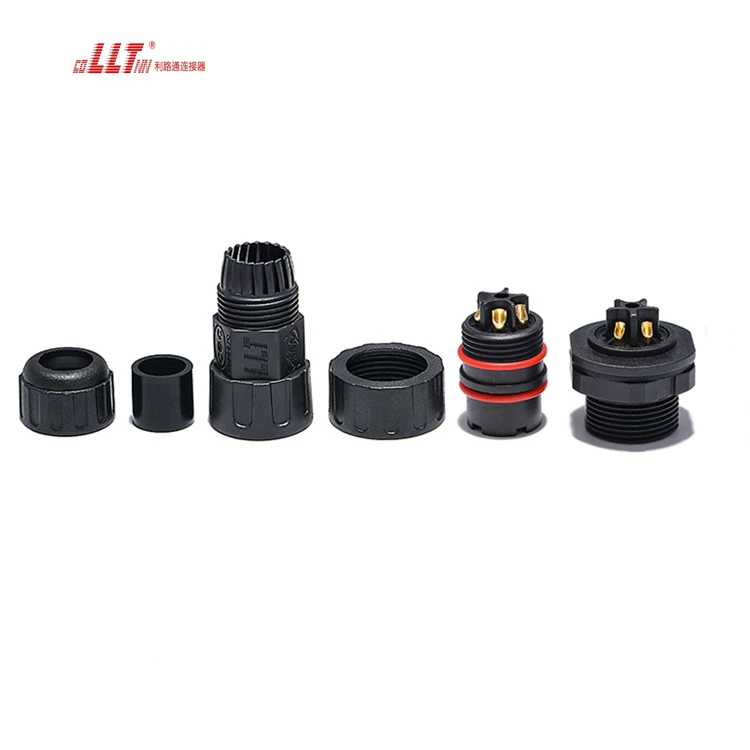

5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 5
5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector gallery image 6

Technical FAQ

What should be confirmed before selecting 5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. 5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for 5pin LLT Connector M25 20A 600V butt plug socket wire panel mount connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
