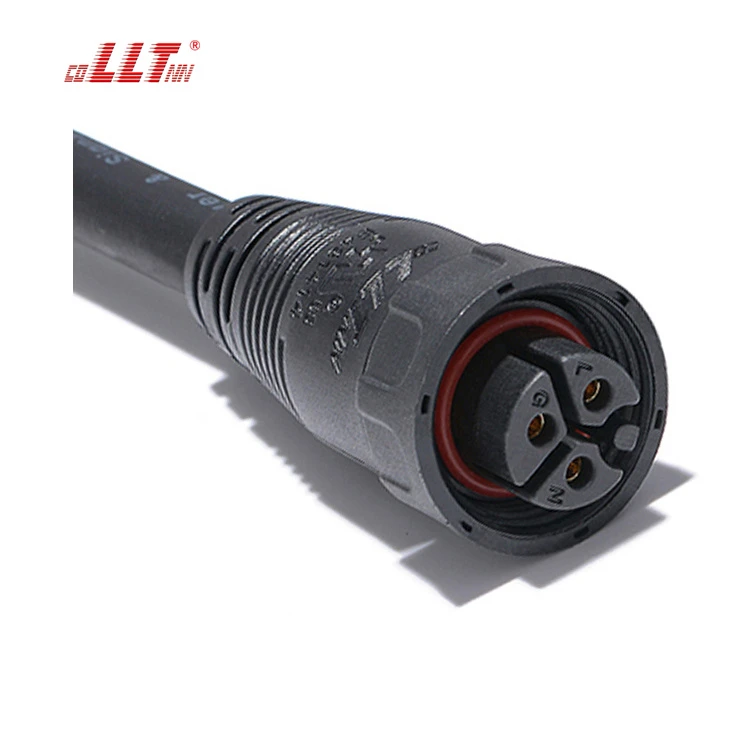

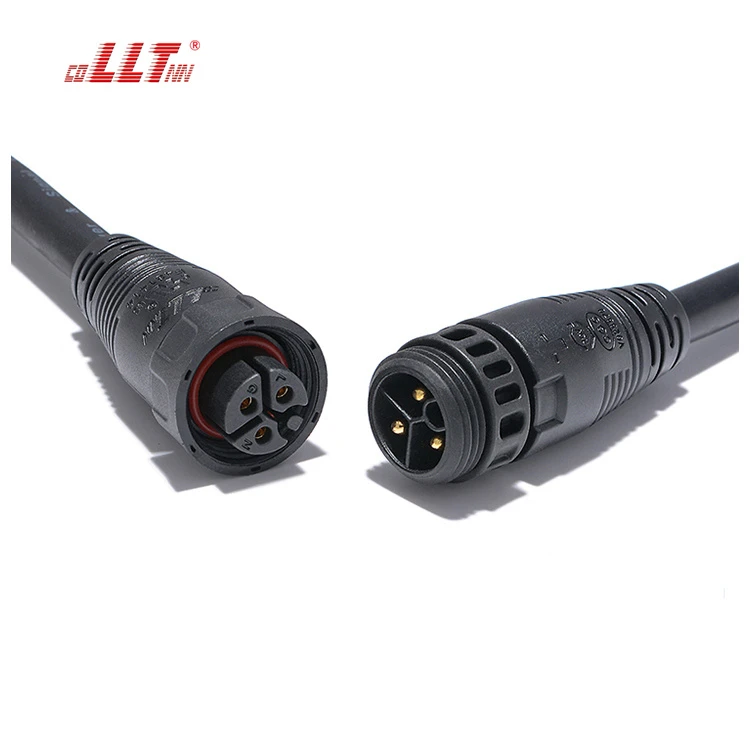

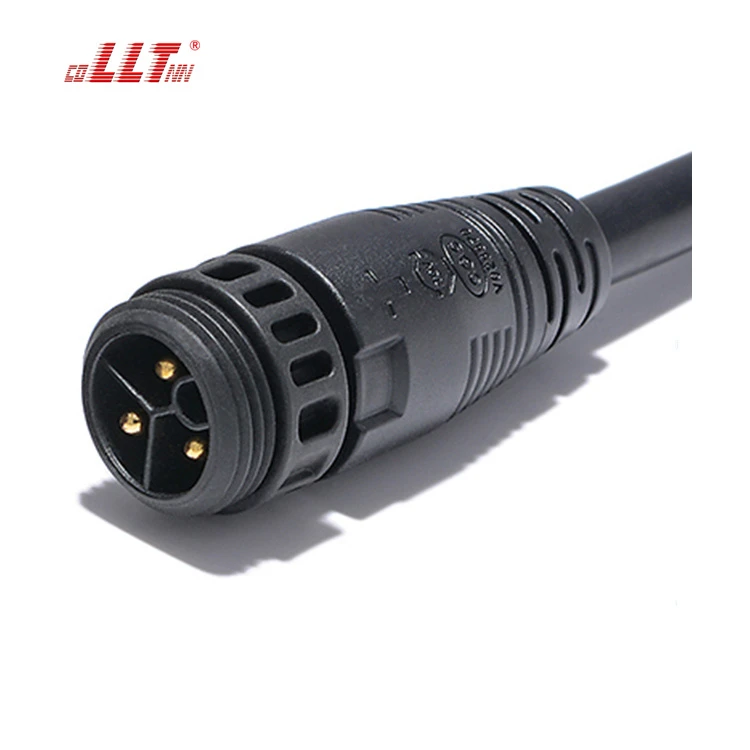

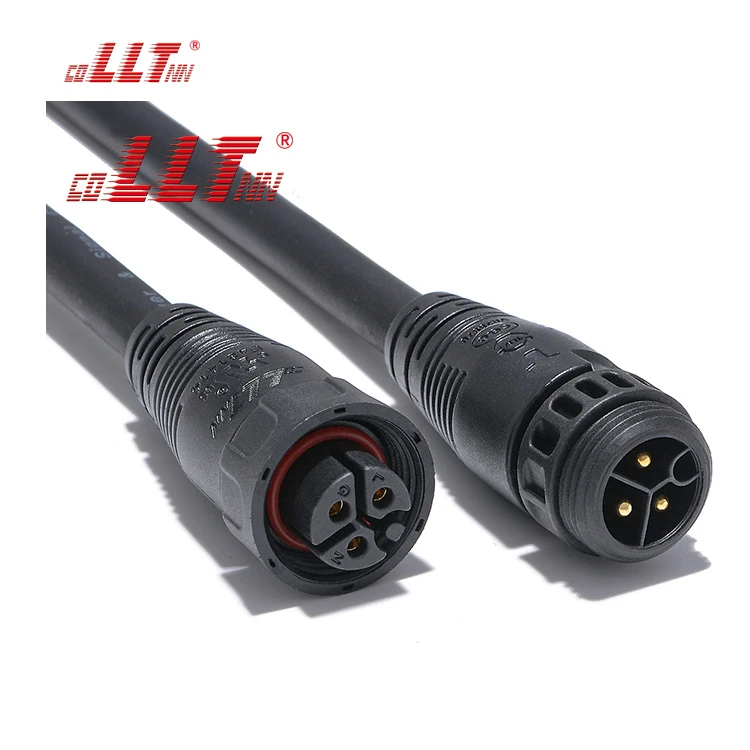

LLT M19 Screw Lock Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors
M19 Screw locking waterproof connector is a great choice for your application, thanks to its thread locking structure, the protection level could meet IP68. If you are looking for IP68 waterproof connectors, screw locking M19 connectors will be a perfet option. it is widely used in outdoor LED lighting, Agricultural Grow Lights,Horticulture and Electric power equipment.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M19
Pin
2-18
IP Rating
IP67
Rated Current
20A
Rated Voltage
600V
Product Series
M19
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M19 Screw Lock Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M19 Screw Lock Cable Molded 20A Waterproof Connectors Male Female 3 Pin Connectors?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
