LLT 10A 3 Pin Circular Power Connector , Male Female Power Connector M16 Push Locking
Description of Male Female connectors 10A current rated male circular waterproof connector m16 industrial connector Cable to cable,cable to board available 2-12pin available Industrial Electrical Plug socket Sealed against dust and fluid (IP65/IP67) Vibration resistance,impact resistance,stretching resistance socket with cover M16 3pin male plug to female is a good connection model, widely used in LED lighting, especially in outdoor application, even underwater.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 8.5mm
Pin
2-12 Pin
IP Rating
IP68
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references

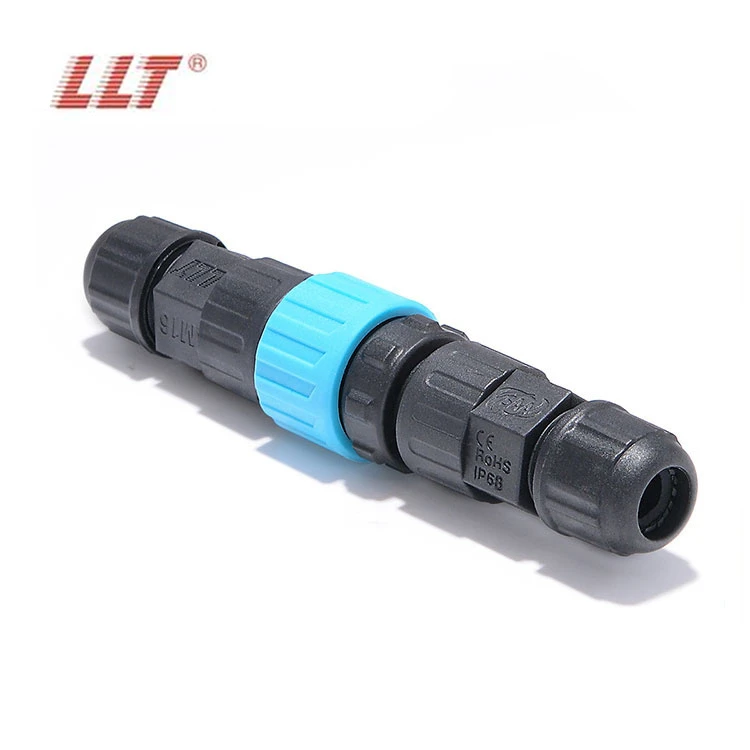

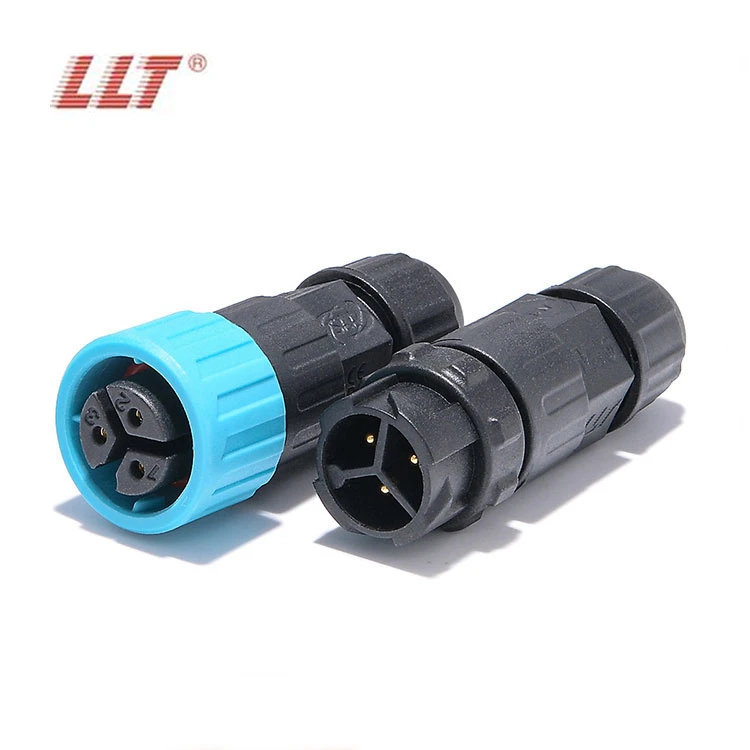

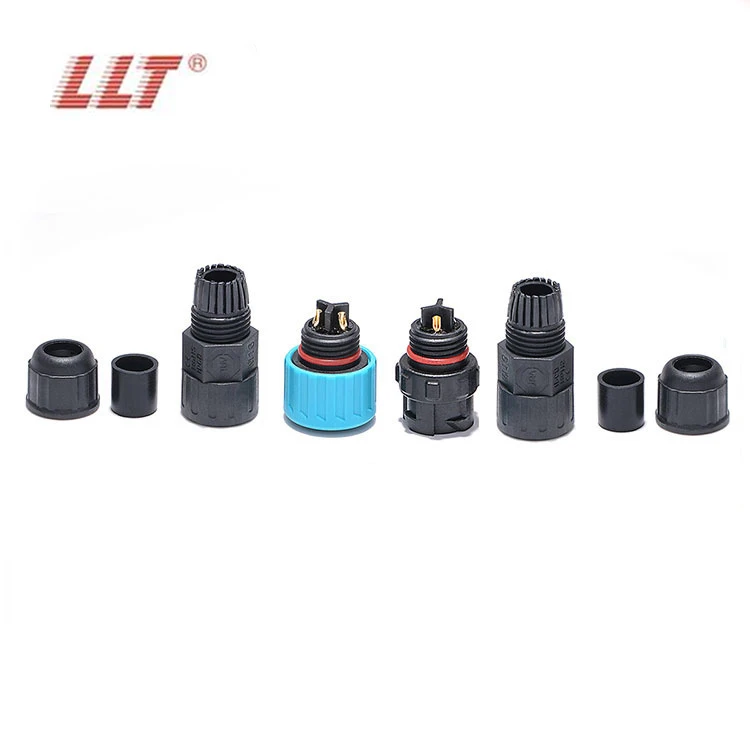

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT 10A 3 Pin Circular Power Connector , Male Female Power Connector M16 Push Locking?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT 10A 3 Pin Circular Power Connector , Male Female Power Connector M16 Push Locking?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
