LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 10A current range, 2pin pin layout, 2 to 8pin interface. Termination direction is by solder, which should be checked against the actual harness build.

10A Waterproof Connectors M12 Threaded Model: LLT-M12-10002F1051
M12 / Threaded LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M12

Pin

2pin

IP Rating

IP67/IP68

Rated Current

10A

Rated Voltage

110V

Product Series

M12

Wiring Type

by Solder

Interface Type

2 to 8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

The LLT M12-2in field assembly connector can get IP67/IP68 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble. The male mate female through thread lock. attach cable by solder.We have 4.2/5.5/6.1mm grommet can fit your different diameter sheath cable. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 1

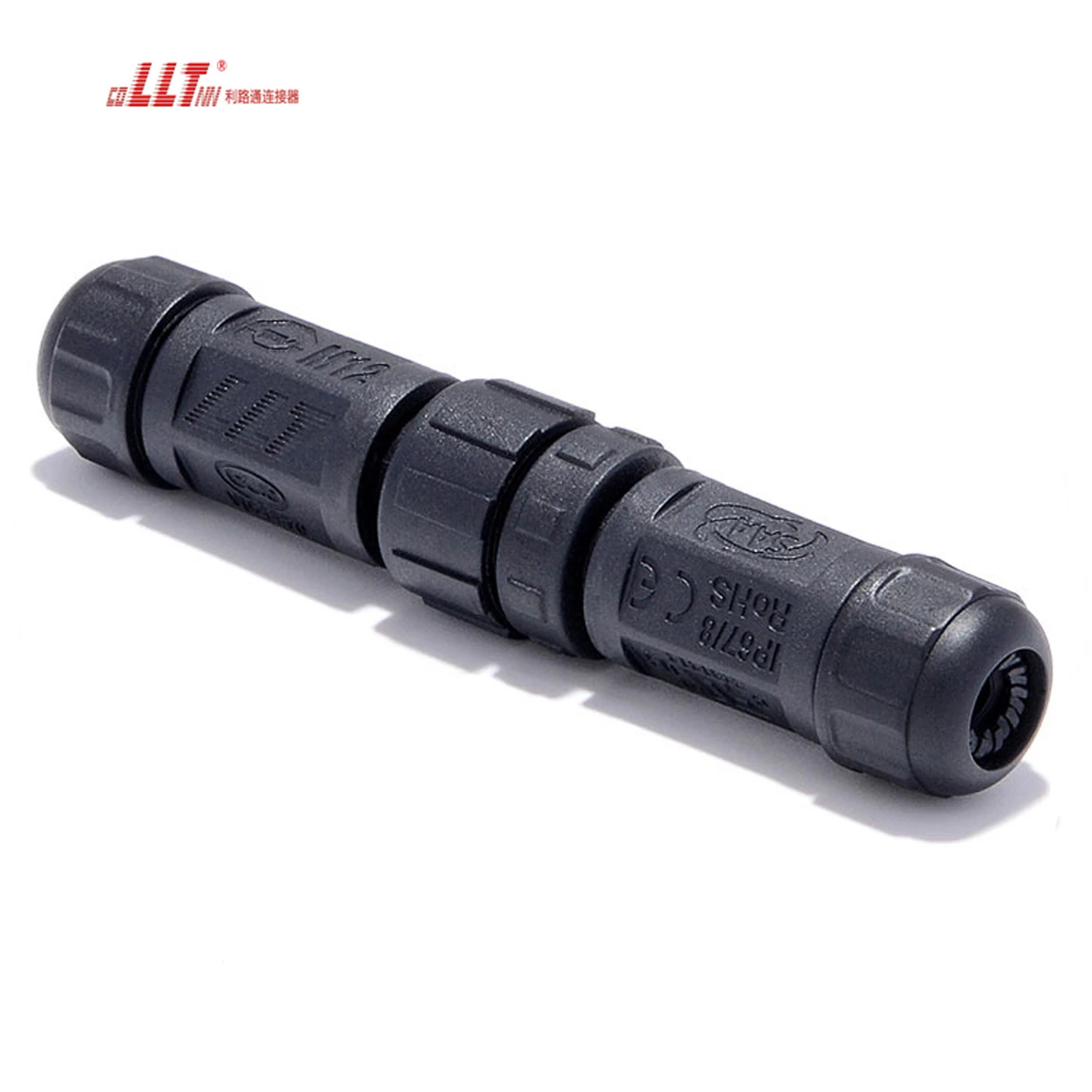

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 2

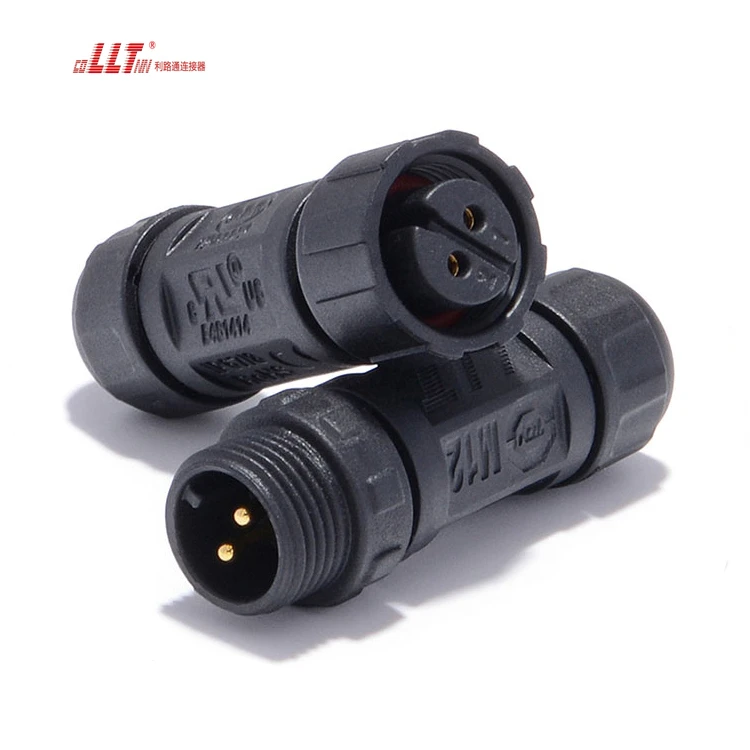

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 3

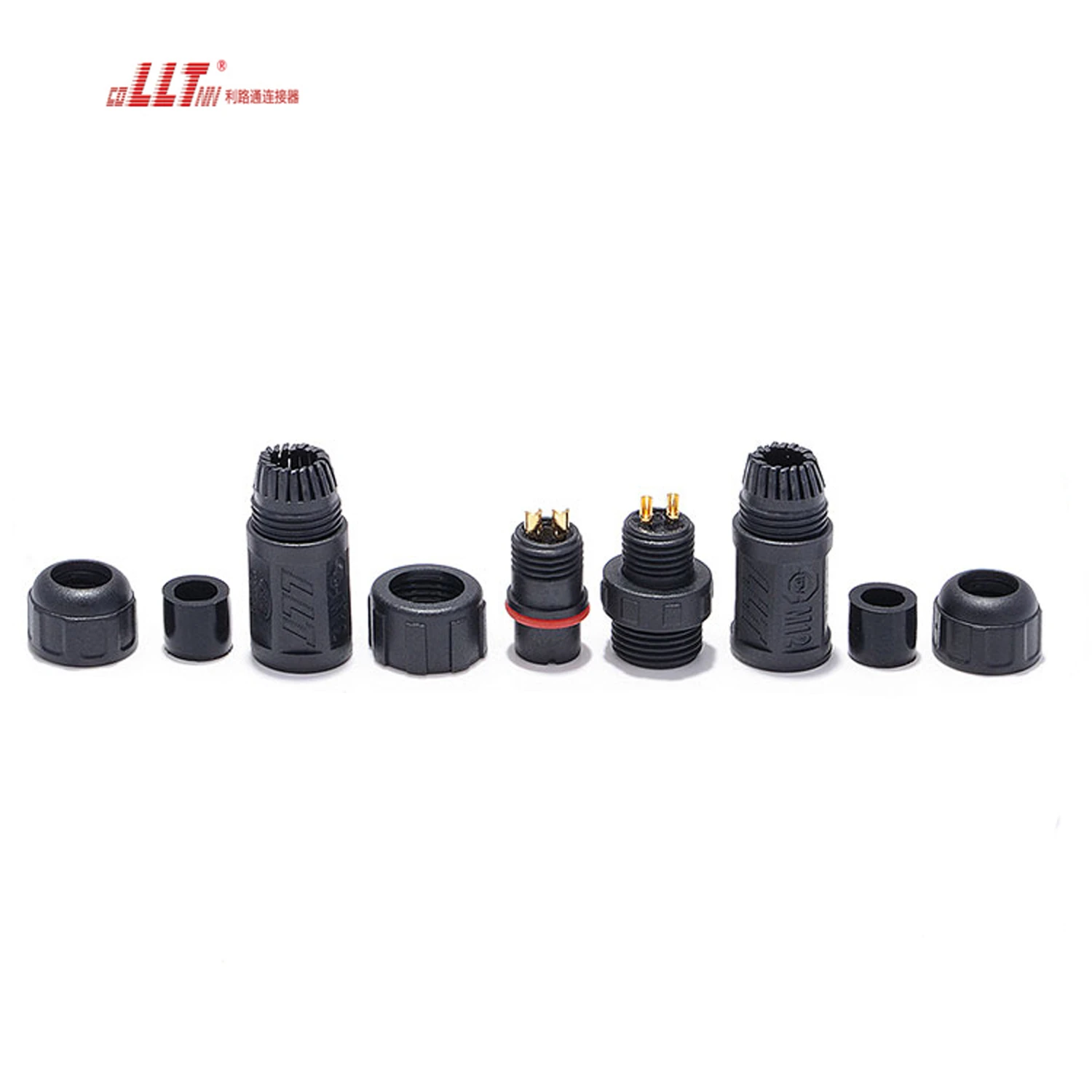

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 4

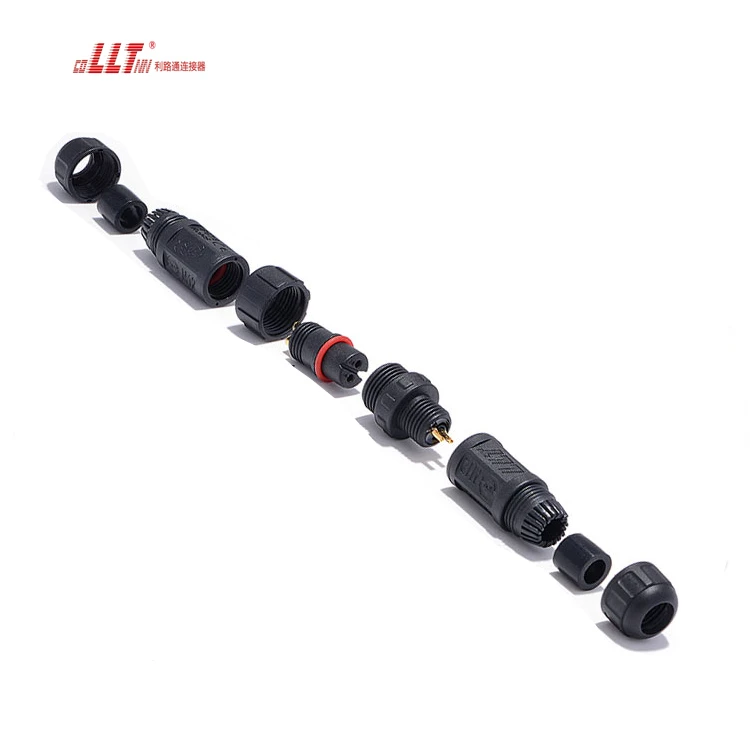

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 5

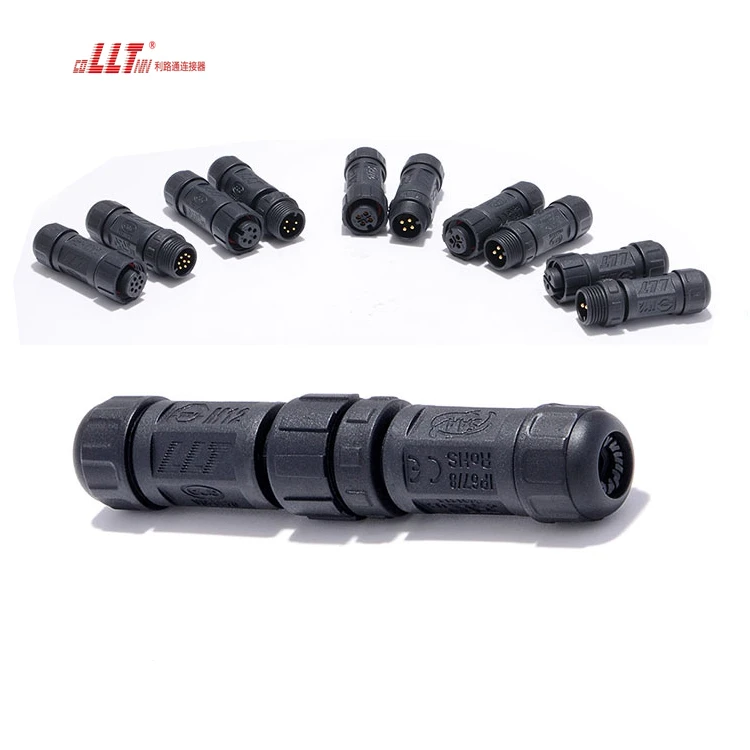

LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector is currently configured around 2 to 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Connector 2pin Male Female M12 Electrical Wire Ip68 Waterproof Power Assembly Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
