LLT T Shape 3way Automotive Led Splitter IP67 Waterproof Cable Connector

Pre-branched Connector M16 Push-Lock Model: LLT-T-S102

Get My Contact

Click to reveal the dedicated contact linked to this product page.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16-T

Pin

2pin

IP Rating

IP65/IP67

Rated Current

15A

Rated Voltage

300V

Product Series

M16-T

Wiring Type

By molding

Interface Type

Push lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M16-T molded cable connector can get IP65/ IP67 waterproof protection . under the normal temperature,plug the male female connector put into the 1m depth water ,after 4 hours inner connector have no immersion happened. It can be used in harsh environment It is very convenient to assemble . The male mate female through push lock .The inner T circuit can be in parallel or in series. It can burden 15A/300V This model 2 to 5pin can be choice.It can mold the outer diameter less than 9.5mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement . Our factory specilize in this field around twenty five years ,we rank in the top manufacturer .We Own full sets certificate ,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market ;We can provide competitive price ;Support ODM,OEM ,customized design;100% quality guarantee ,12 months warranty ;Reliable after-sales service ,salesman 24 hours on line to solve your question

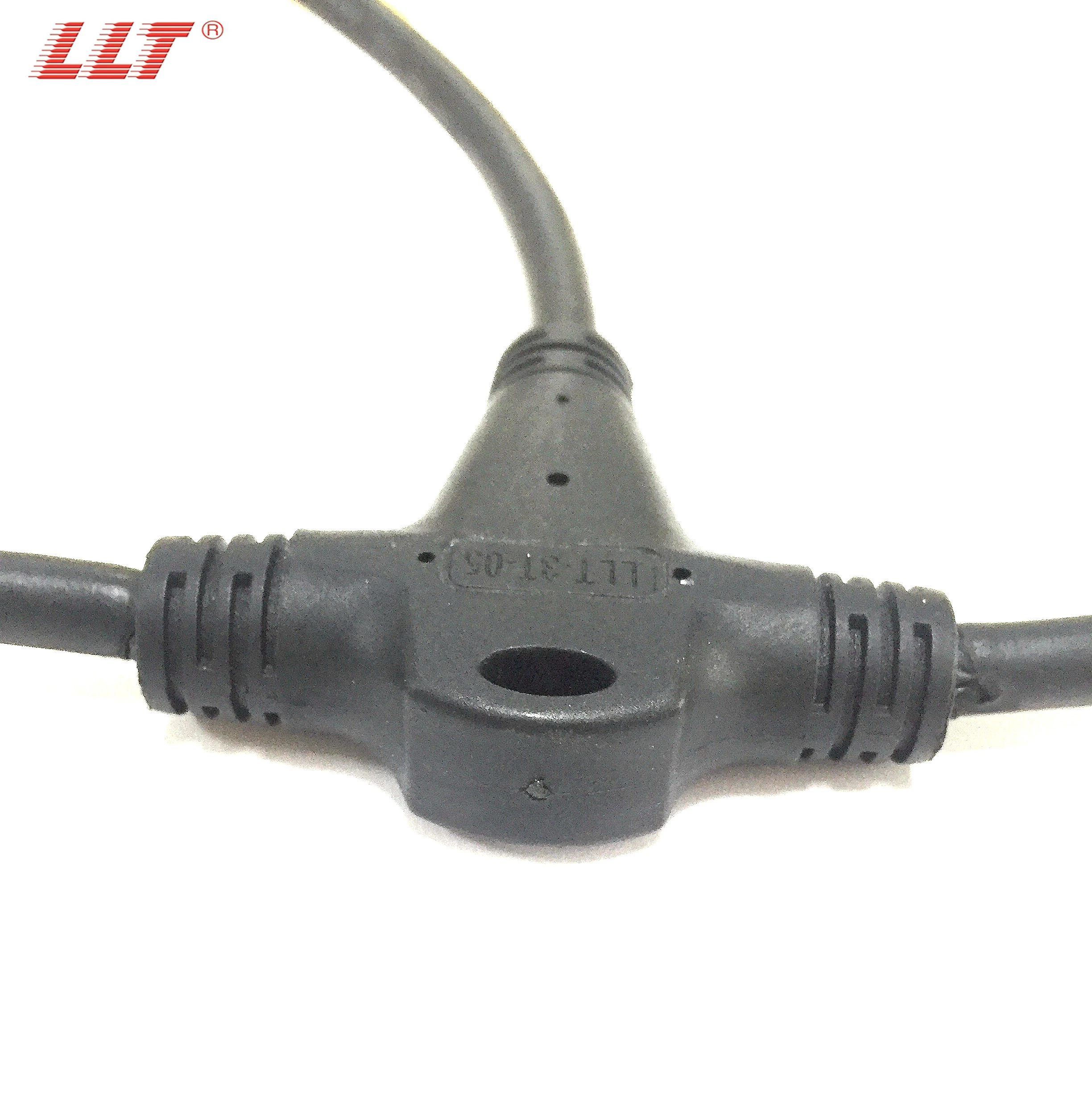

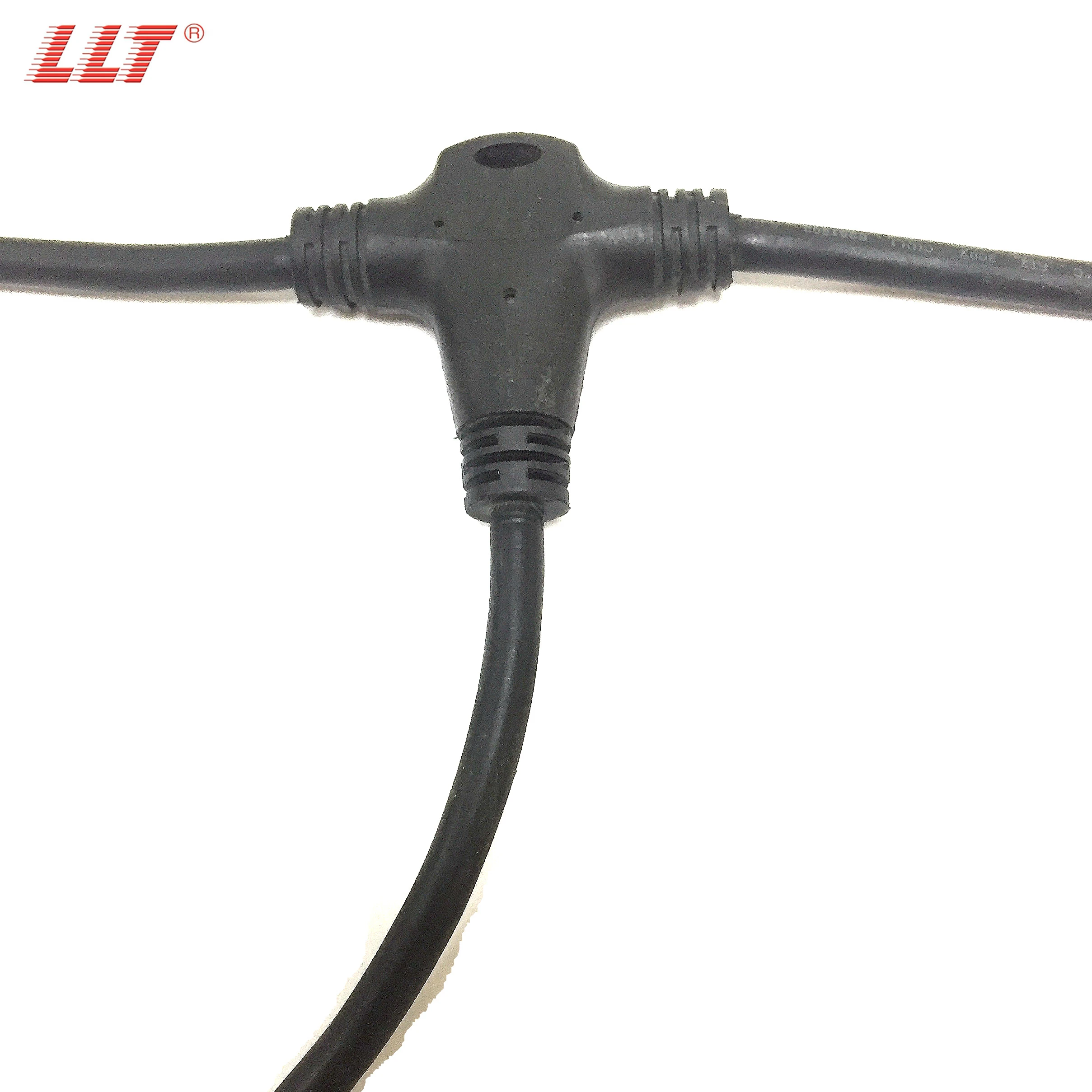

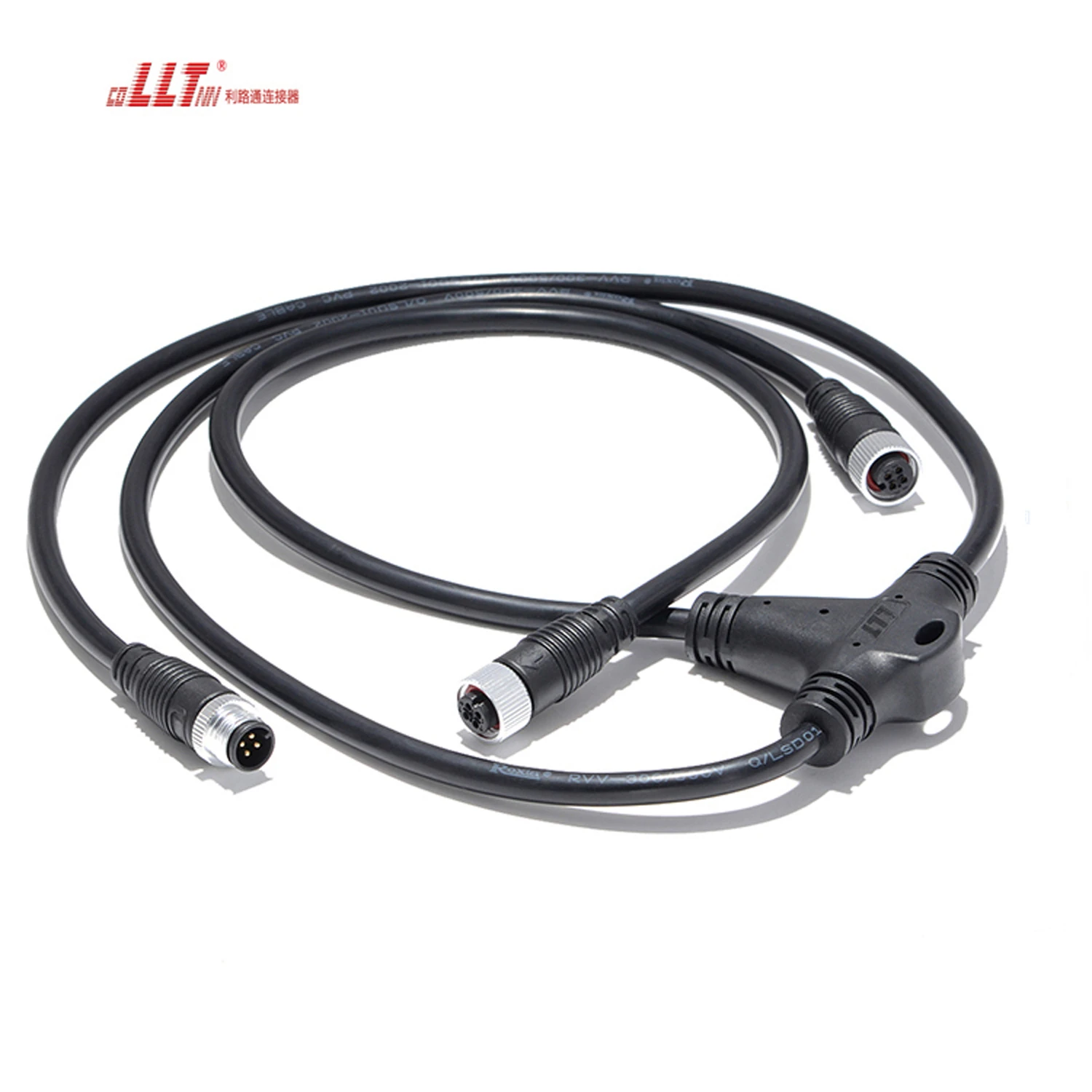

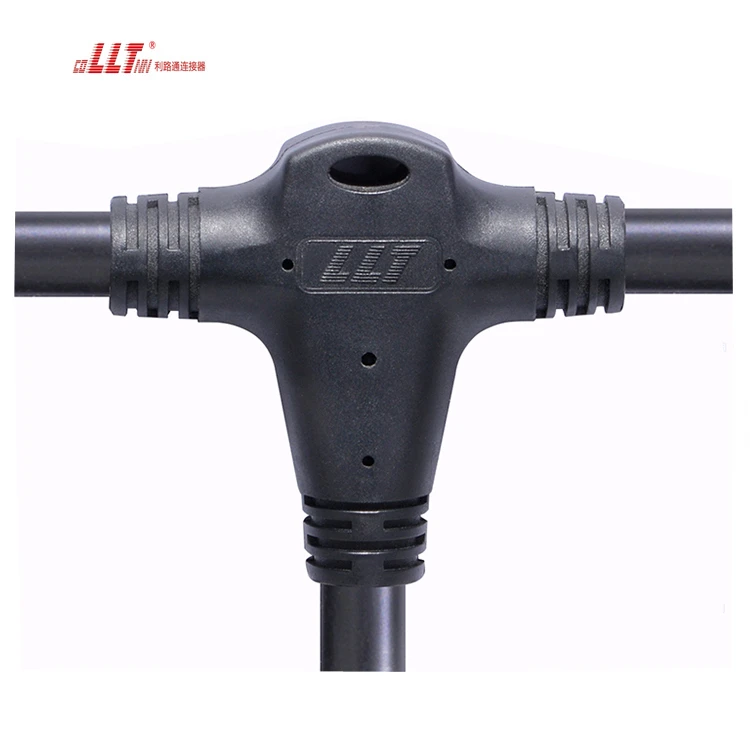

Visual Gallery

Product details, interface geometry, and cable integration views
