LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector

Pre-branched Connector Pre-Branched JunctionBox Threaded Model: LLT-M19-Y03
Pre-Branched JunctionBox / Threaded LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

3pin

IP Rating

IP65/IP67

Rated Current

20A

Rated Voltage

600V

Product Series

Pre-Branched JunctionBox

Wiring Type

By molding

Interface Type

Thread lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-Y 3pin molded cable connector can get IP65/IP67 waterproof rate ,male connector mate female connector via thread lock.The body matrial is PA66, V-0 fire retardant. Conduct material is plated gold brass .It can burden 20A/600V .The inner Y circuit can be in parallel or in series .This model 2-8pin can be choice, It can mold the outer diameter less than 13mm PVC ,Ruber cable .We can produce it with customized cable length following different requirement .The Work temperature is Minus 25℃ to 105℃ . It is widely used in Grow light, LED light,Outdoor light,Signal transmission,Power drive ,Illuminating industry and et cetera. We have cooperated with domestic and abroad customers, winning many project ,such as Beijing Olympic Game Stadium ,Bird's Nest ,Water Cube,Bangkok New International Airport,Shanghai World Expo and etc , I wish we can win your project ,looking forward to cooperating with you .

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

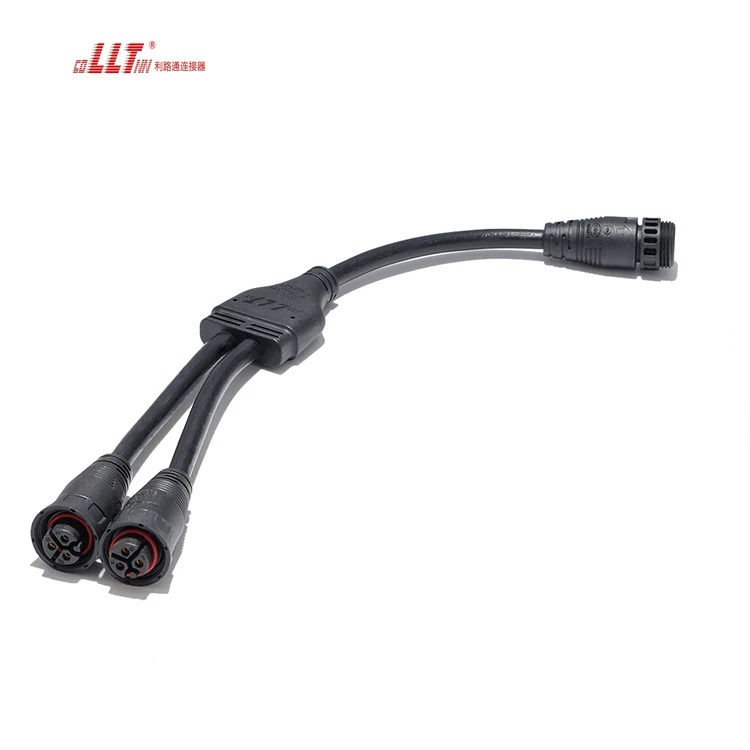

LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector gallery image 1

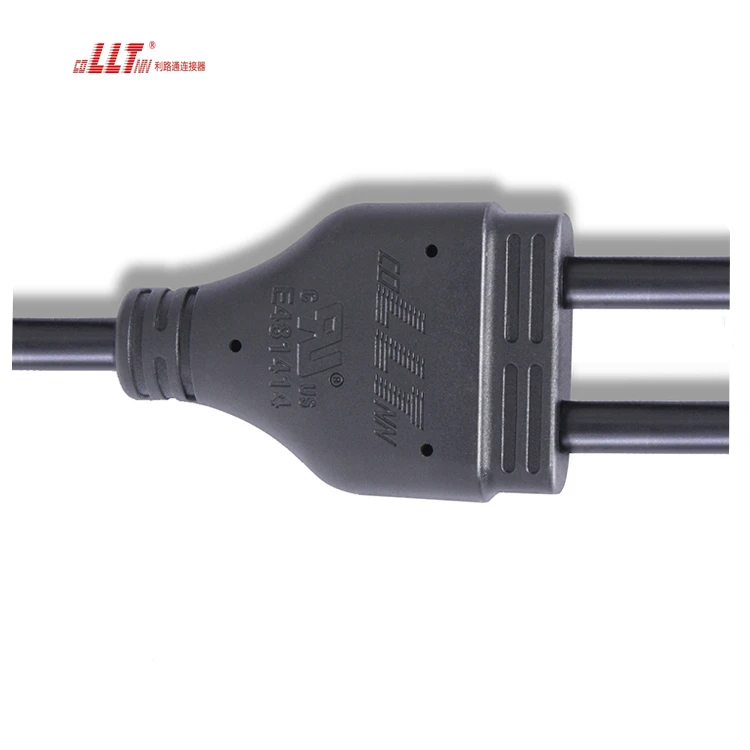

LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector gallery image 2

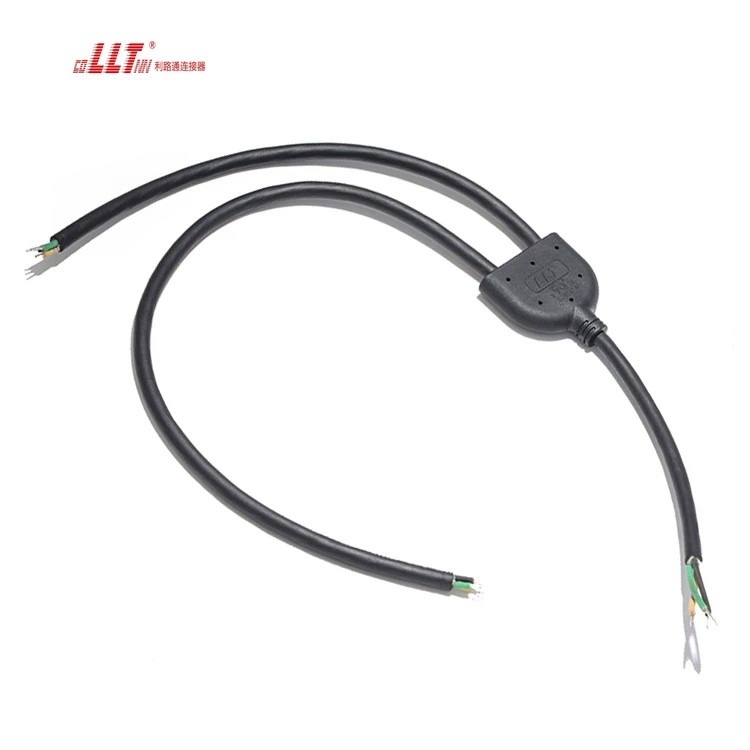

LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector gallery image 3

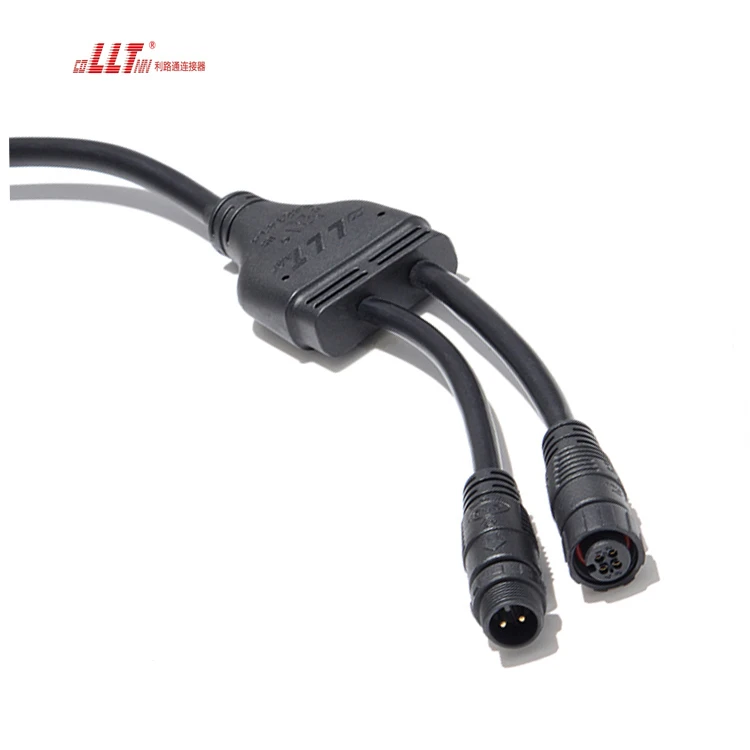

LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector gallery image 4

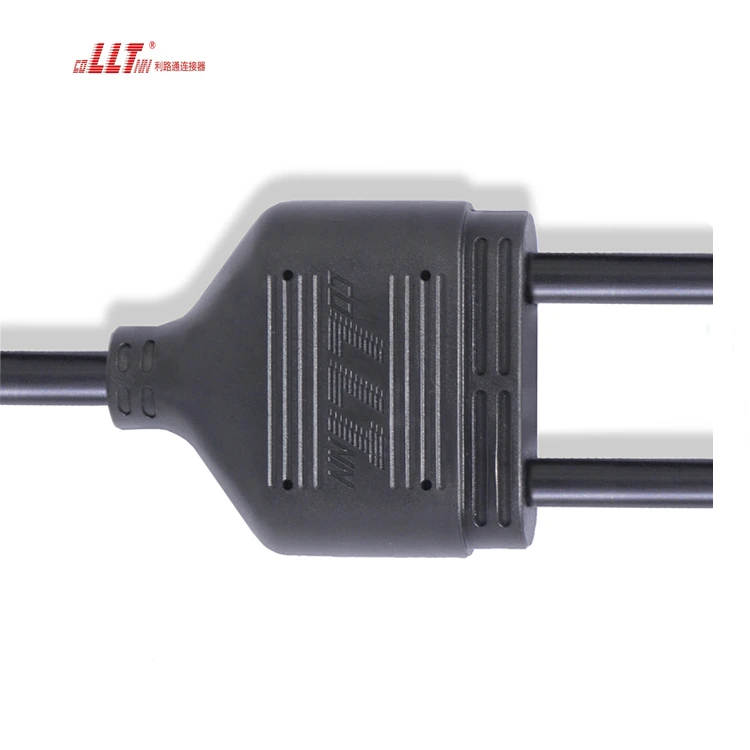

LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector gallery image 5

Technical FAQ

What should be confirmed before selecting LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector is currently configured around thread lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
