LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector

Pre-branched Connector M12 Threaded Model: LLT-M12-10002F5221
M12 / Threaded LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M12

Pin

2pin

IP Rating

IP67/IP68

Rated Current

10A

Rated Voltage

110V

Product Series

M12

Wiring Type

Soldering

Interface Type

Push lock

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M12-2pin 3way T assembly connector can get IP67/IP68 waterproof rate ,male connector mate female connector via thread lock.The body matrial is PA66,V-0 fire retardant.Conduct material is plated gold brass.The M12-T inner circuit can be in parallel or in series. It can burden 10A/110V, This model 2-8pin can be choice, the Work temperature is Minus 25℃ to 105℃ . It is widely used in Grow light, LED light,Outdoor light,Signal transmission,Power drive ,Illuminating industry and et cetera.We have cooperated with domestic and abroad customer, winning many project ,such as Beijing Olympic Game Stadium ,Bird's Nest ,Water Cube,Bangkok New International Airport,Shanghai World Expo and etc , I wish we can win your project ,looking forward to cooperating with you .

Application Fit

Typical application directions

  • Outdoor lighting modules and landscape installations
  • Roadside, architectural, and municipal equipment exposed to weather
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

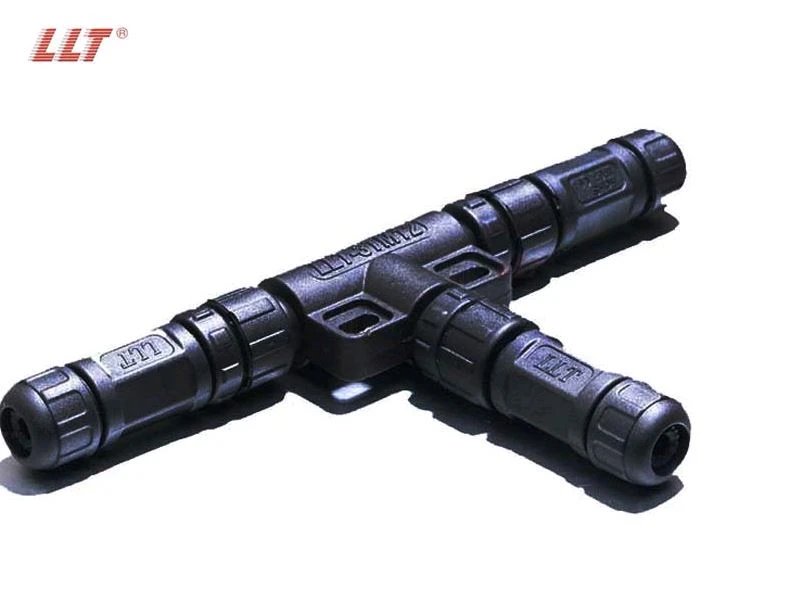

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 1

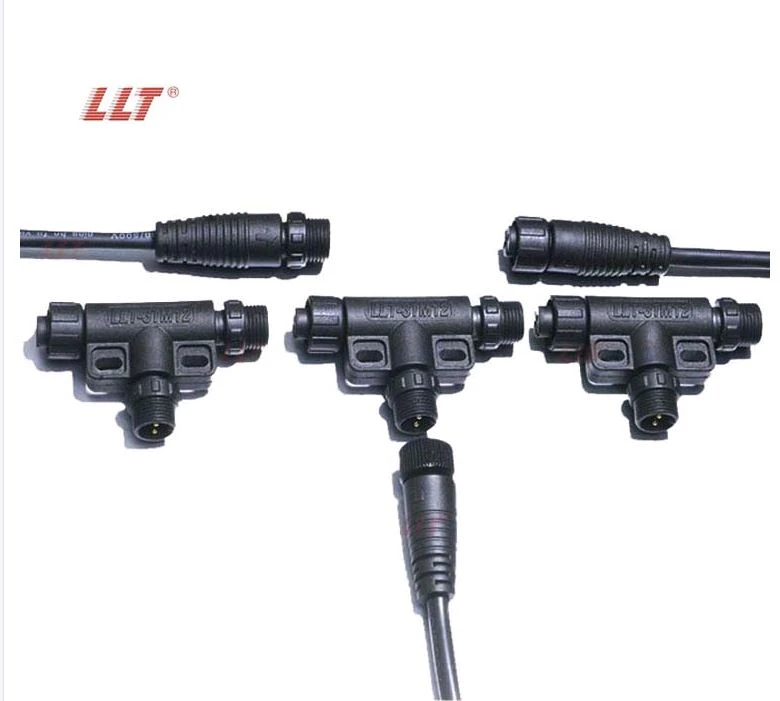

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 2

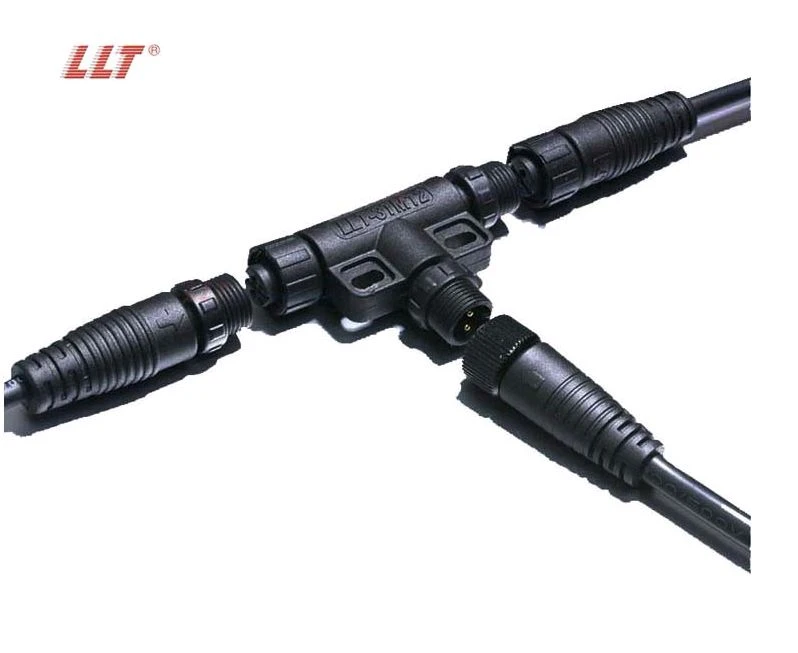

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 3

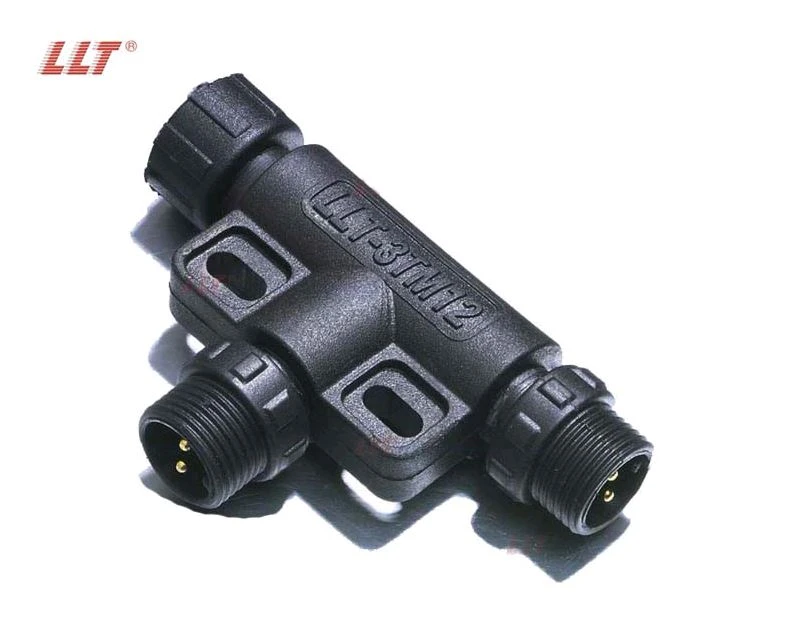

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 4

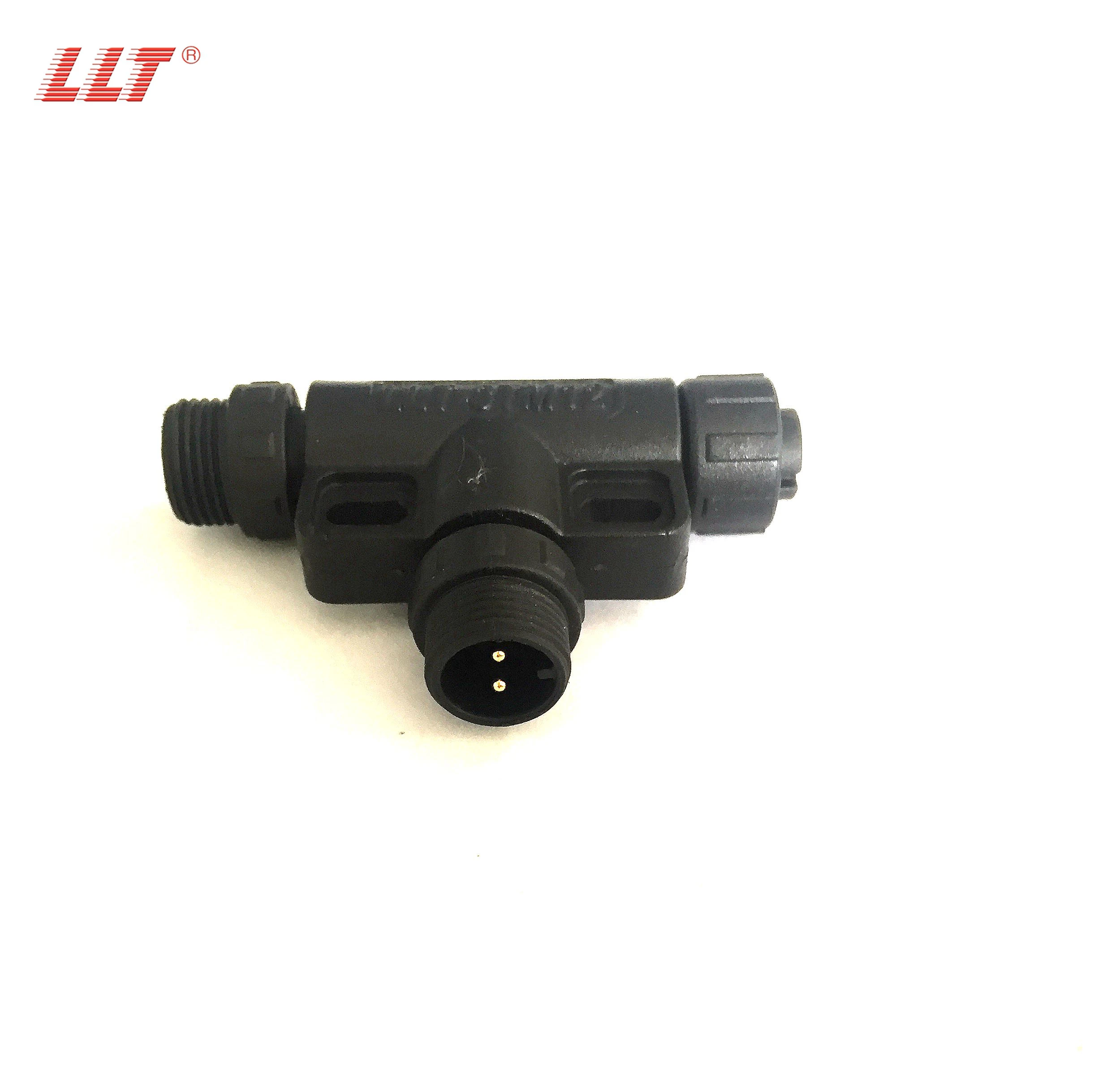

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 5

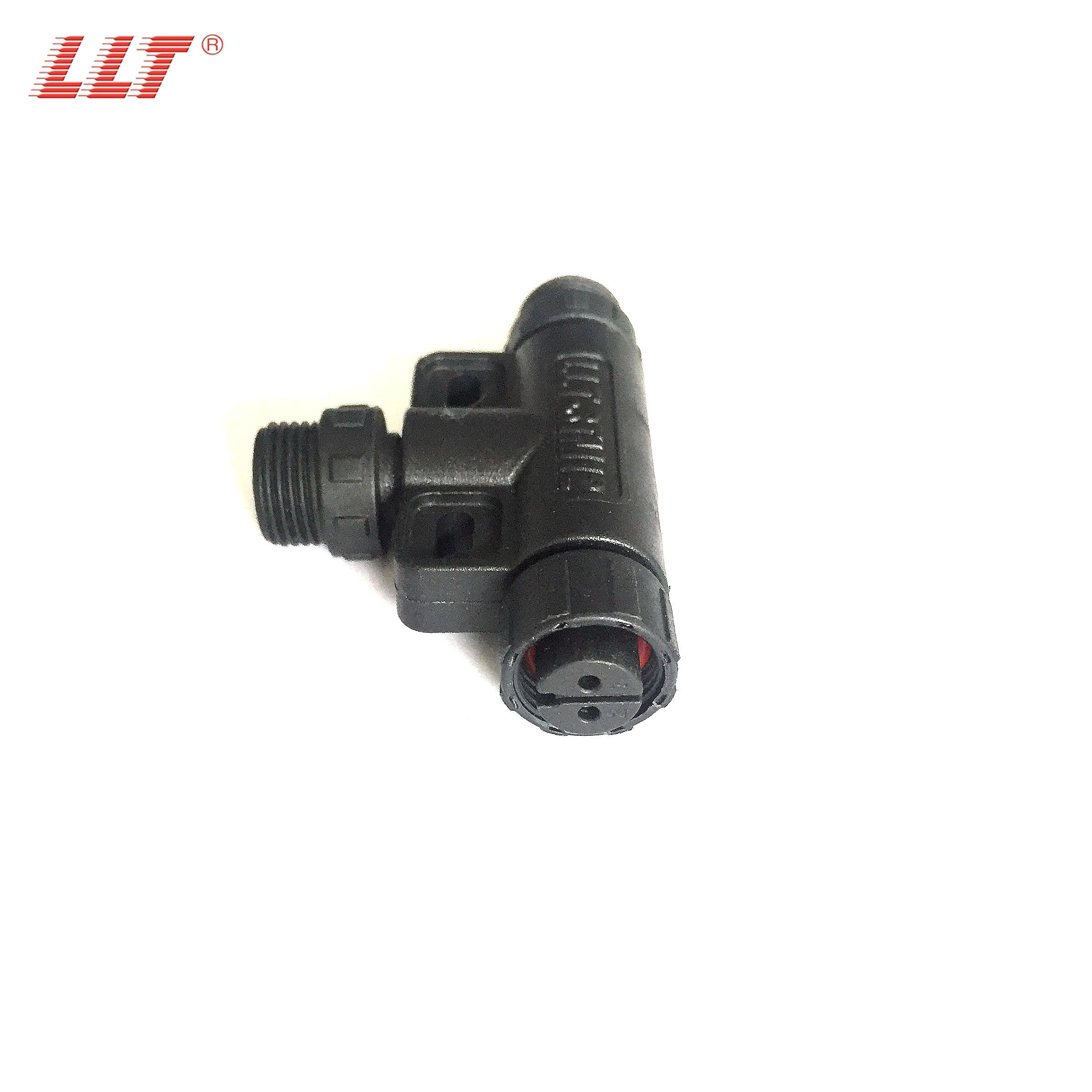

LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector gallery image 6

Related Products

Compare nearby references in this family

LLT 1 Out 2 Branch Adapter Push Lock IP67 IP65 Cable Connector Y Splitter Joint Connector Cable
LLT 1 Out 2 Branch Adapter Push Lock IP67 IP65 Cable Connector Y Splitter Joint Connector Cable M19 / Push-Lock
LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector
LLT 3pin 1 Output 2 Splitter Plastic IP67 Waterproof Power Electrical Y Branch Cable Adapter Connector Pre-Branched JunctionBox / Threaded
IP65 IP67 5pin Y Type M16 Waterproof Splitter 4way Branch Cable Connector
IP65 IP67 5pin Y Type M16 Waterproof Splitter 4way Branch Cable Connector M16 / Threaded
LLT Y 1 Output 3 Distributor 2pin Splitter IP67 Waterproof Led Cable Connector for Illumination
LLT Y 1 Output 3 Distributor 2pin Splitter IP67 Waterproof Led Cable Connector for Illumination Pre-Branched JunctionBox / Push-Lock

Technical FAQ

What should be confirmed before selecting LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector is currently configured around push lock interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT IP68 Waterproof Tree Connector 3way 2pin M12 T Plastic Circular Led Light Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
