M19-2pin 20A female PCB power panel connector

M19-2pin 20A female PCB power panel connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 2-18 pin pin layout, 2pin interface. Termination direction is solder on the pcb, which should be checked against the actual harness build.

PCB Connector M19 Threaded Model: LLT-M19-20002F2863
M19 / Threaded M19-2pin 20A female PCB power panel connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M19

Pin

2-18 pin

IP Rating

IP67/IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

solder on the PCB

Interface Type

2pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M19-2pin female PCB panel connector can support 20A/600V,Relies on materials like rubber gaskets, silicone O-rings, or integral injection molding to seal the connection interface and wire entry, blocking moisture intrusion. It can get IP67/IP68 waterproof protection. Soldered directly to your PCB pad for permanent.Wire to board way to connect wires or cable assemblies to PCBs Via thread lock,mainly for power connections.They are commonly found in fans, sensors, and control panels.

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

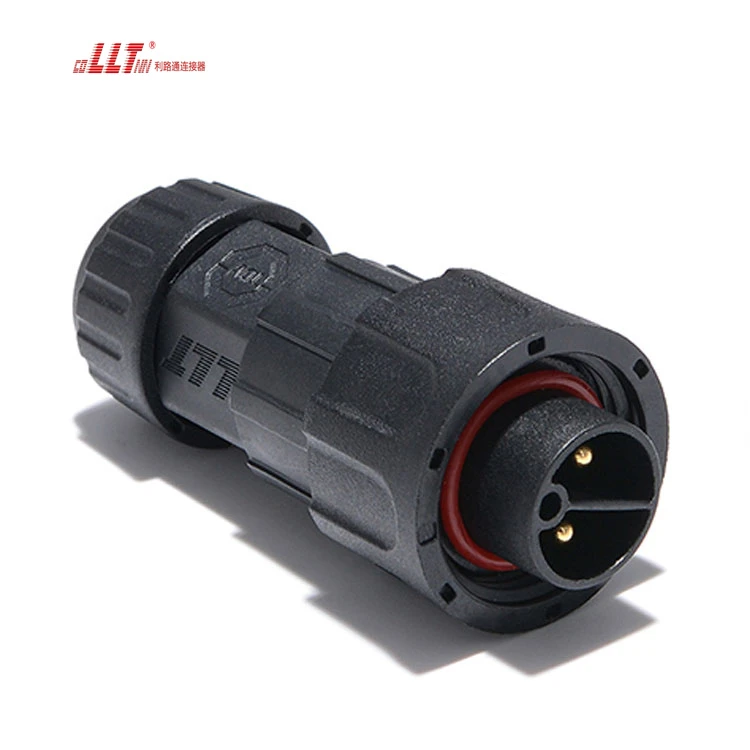

M19-2pin 20A female PCB power panel connector gallery image 1

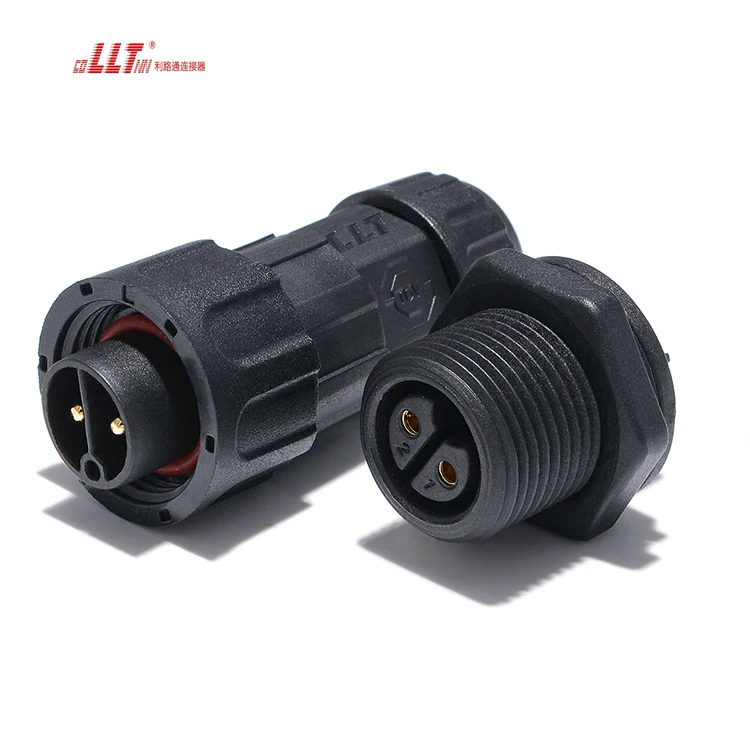

M19-2pin 20A female PCB power panel connector gallery image 2

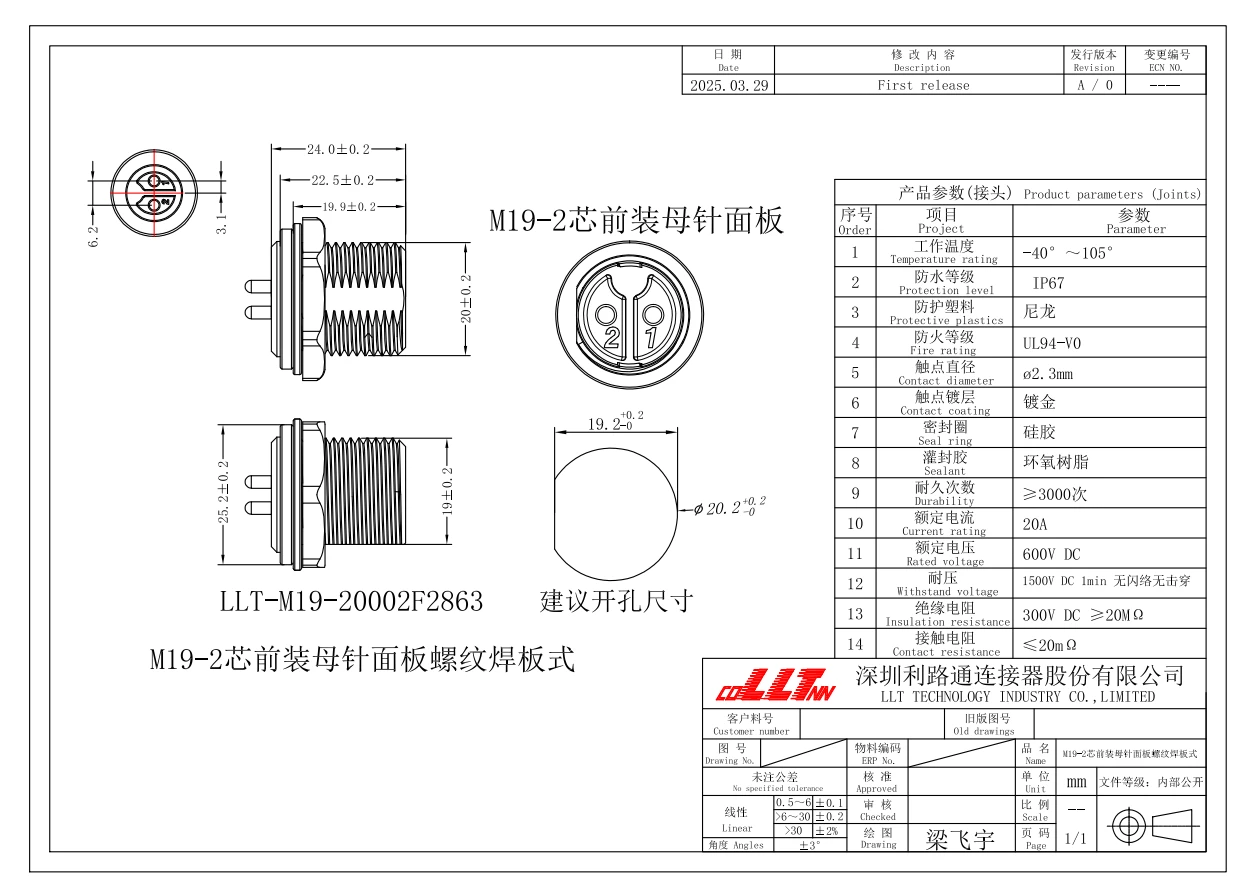

M19-2pin 20A female PCB power panel connector gallery image 3

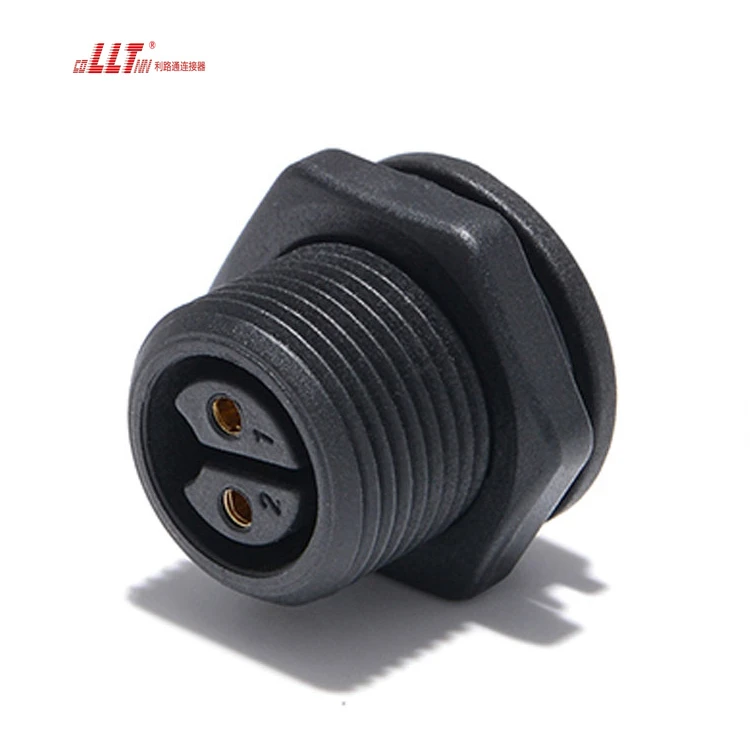

M19-2pin 20A female PCB power panel connector gallery image 4
M19-2pin 20A female PCB power panel connector gallery image 5

Technical FAQ

What should be confirmed before selecting M19-2pin 20A female PCB power panel connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. M19-2pin 20A female PCB power panel connector is currently configured around 2pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for M19-2pin 20A female PCB power panel connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.

Request Quote Open PCB Connector
