M12 8pin male PCB panel mount connector

M12 8pin male PCB panel mount connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP68, 5A current range, 2-8pin pin layout, 8pin interface. Termination direction is solder on the pcb, which should be checked against the actual harness build.

PCB Connector M12 Threaded Model: LLT-M12-05008M2863
M12 / Threaded M12 8pin male PCB panel mount connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M12

Pin

2-8pin

IP Rating

IP68

Rated Current

5A

Rated Voltage

60V

Product Series

M12

Wiring Type

solder on the PCB

Interface Type

8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

M12-8pin PCB connector support 5A/60V. It is an electromechanical interface mounted on a printed circuit board. It enables the connection between two circuits without permanent soldering, facilitating the transfer of power, data, or both between boards, cables, or external devices. It reliably transmits signals and power, ensuring no data loss and sufficient power supply. It physically secures components, resisting vibration and impact, and preventing accidental disconnection. It is customized products, need you design your PCB base on the pin layout. They are used to connect wires or cable assemblies to PCBs, mainly for power connections and signaling, and are commonly found in fans, sensors, and control panels.

Application Fit

Typical application directions

  • Control cabinets and machine enclosures requiring front-to-rear sealed interfaces
  • Distributed I/O points where panel thickness and rear-space limits affect part choice
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

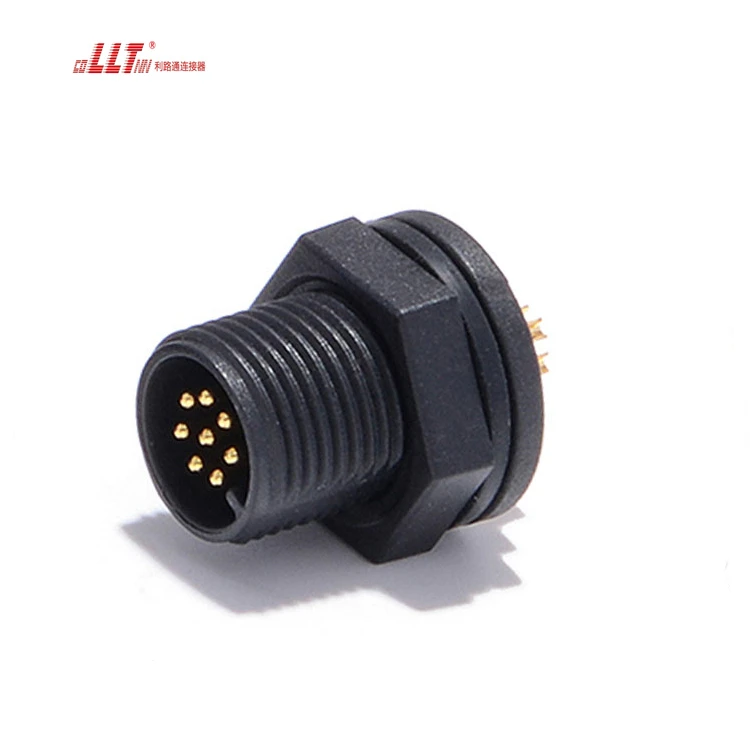

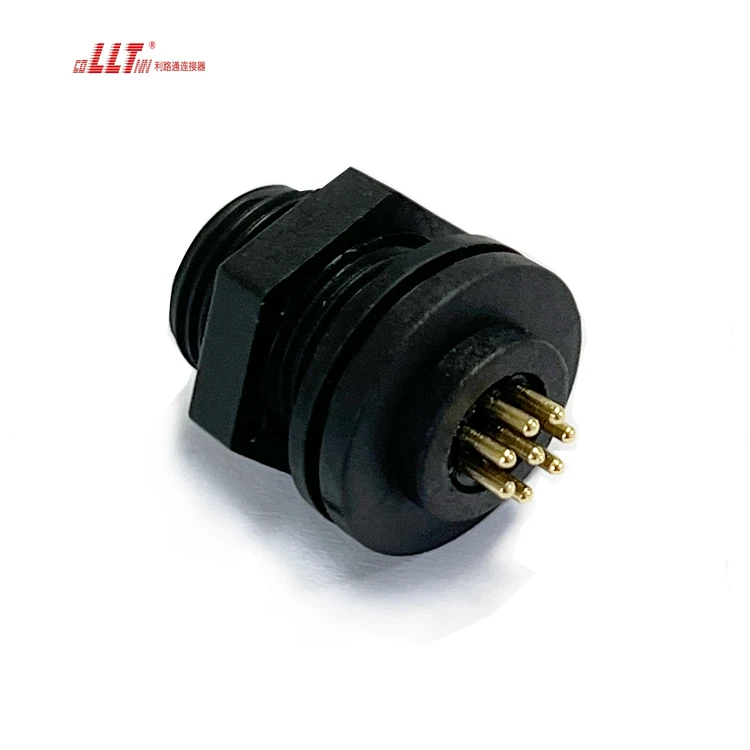

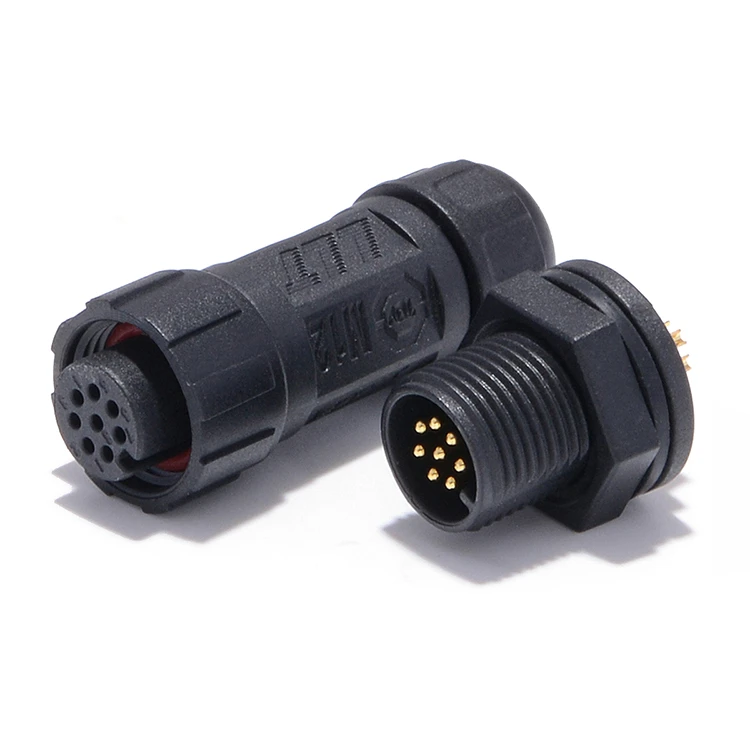

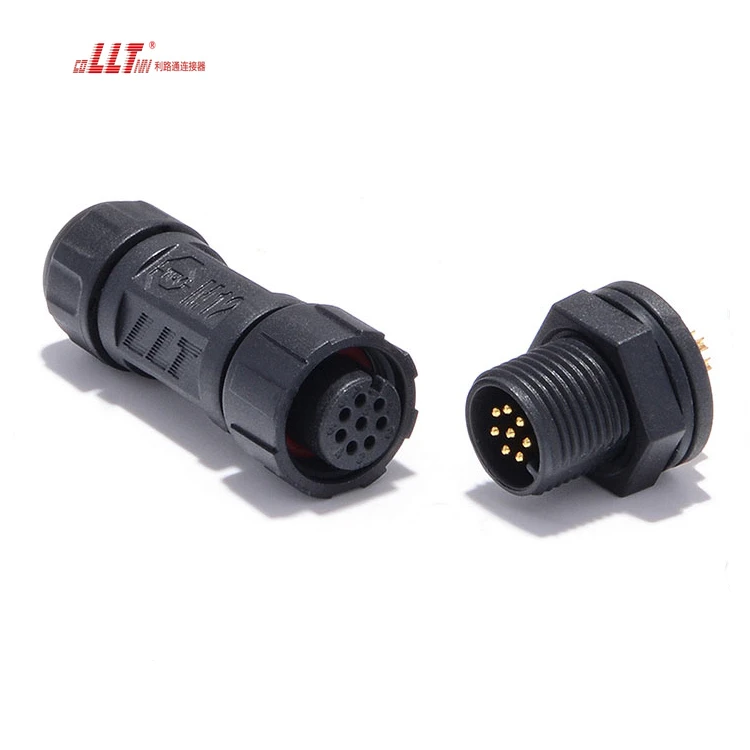

M12 8pin male PCB panel mount connector gallery image 1
M12 8pin male PCB panel mount connector gallery image 2
M12 8pin male PCB panel mount connector gallery image 3
M12 8pin male PCB panel mount connector gallery image 4
M12 8pin male PCB panel mount connector gallery image 5
M12 8pin male PCB panel mount connector gallery image 6

Technical FAQ

What should be confirmed before selecting M12 8pin male PCB panel mount connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. M12 8pin male PCB panel mount connector is currently configured around 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for M12 8pin male PCB panel mount connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
