LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP68, 20A current range, 2 to 4pin pin layout, 2pin interface. Termination direction is screw, which should be checked against the actual harness build.

Junction Box L20 Threaded Model: LLT-L20-20002T0001
L20 / Threaded LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

L20

Pin

2 to 4pin

IP Rating

IP68

Rated Current

20A

Rated Voltage

300V

Product Series

L20

Wiring Type

Screw

Interface Type

2pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Basic Overview - Series: L20 (M20 threaded diameter) - Pins: 2-pin configuration - Protection rating: Typically IP67 or IP68, waterproof, dustproof, and anti-corrosion - Application: Suitable for outdoor LED lighting, stage equipment, industrial sensors, automotive wiring, security devices, and marine electrical systems Key Specifications - Thread size: M20 - Rated voltage: 300V–500V AC/DC - Rated current: 20A per connector - Wiring methods: Screw terminal connection - Operating temperature range: -40°C to +105°C - Housing material: PA66 nylon - Contact material: Copper alloy with nickel plating Structure Types Available in multiple forms to meet different installation needs: - Cable-to-cable in-line connectors - Panel-mount connectors for equipment enclosures - T-type split connectors for multi-branch wiring Features - Stable connection, high tensile strength, not easy to loose - Good sealing performance for outdoor and wet environments - Quick plug-and-unplug operation - Durable and reusable for long-term use

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 1

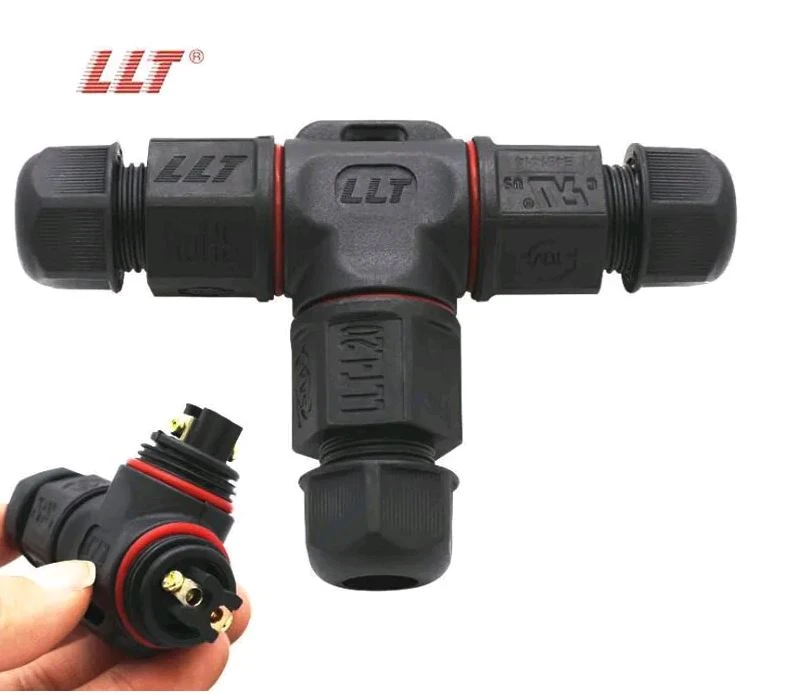

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 2

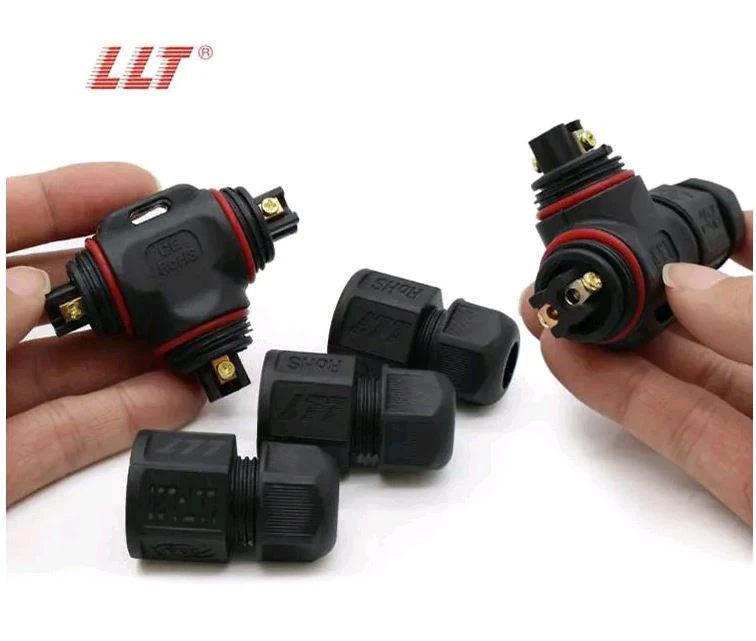

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 3

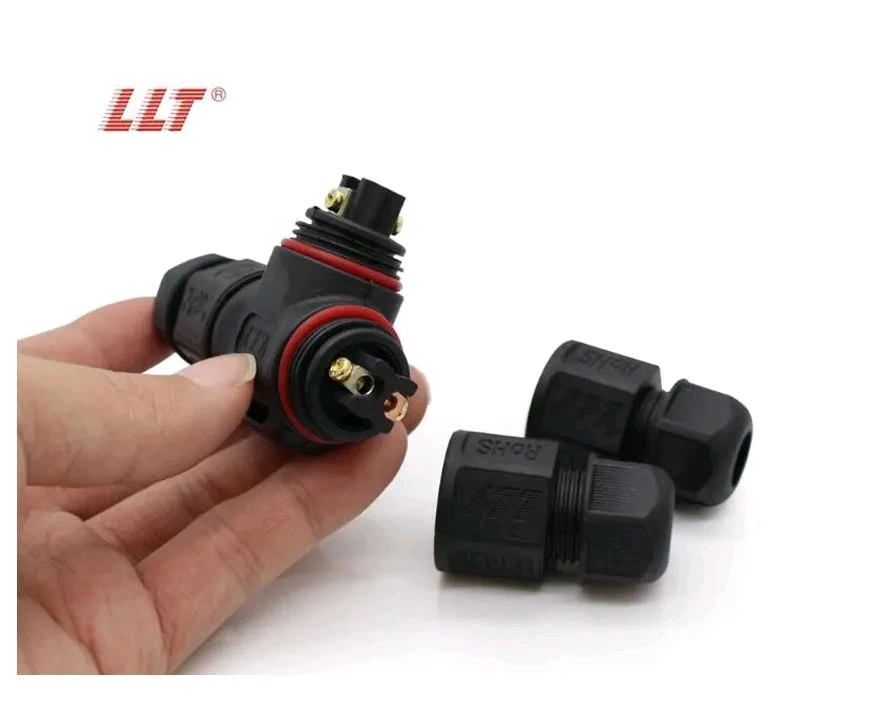

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 4

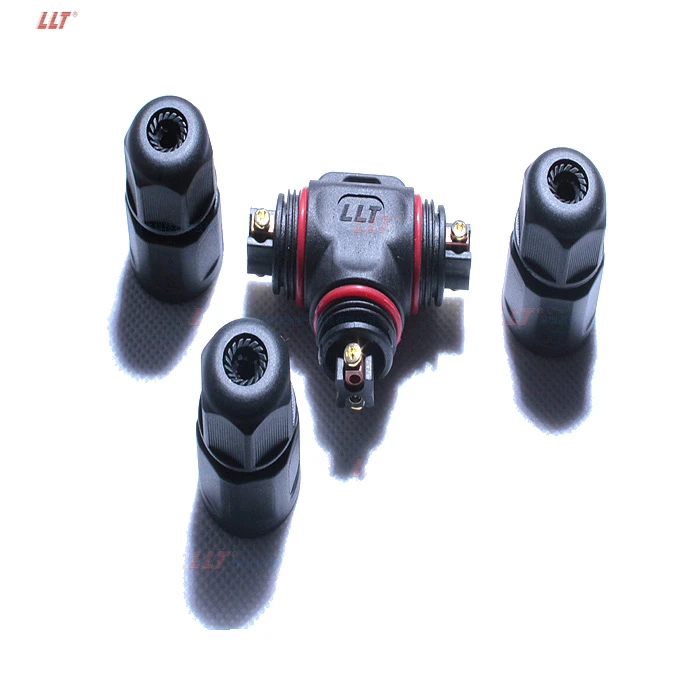

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 5

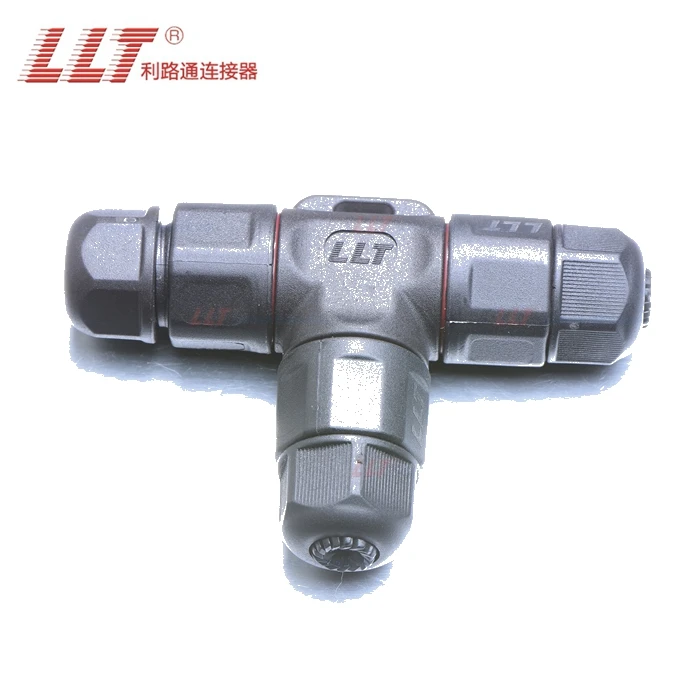

LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector is currently configured around 2pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT L20 T 3way 2pin Distributor Circular Waterproof Screw Wire Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
