Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector

Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 20A current range, 3pin pin layout, 2 to 4pin interface. Termination direction is screw, which should be checked against the actual harness build.

Junction Box L20 Threaded Model: LLT-L20-20003T0001
L20 / Threaded Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

L20

Pin

3pin

IP Rating

IP68

Rated Current

20A

Rated Voltage

300V

Product Series

L20

Wiring Type

Screw

Interface Type

2 to 4pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

The L20‑T connector is a compact, industrial-grade electrical connector typically used for power, signal, or control connections in harsh environments. It features a threaded locking mechanism for secure mating, high mechanical stability, and reliable resistance to vibration, dust, and moisture. Key characteristics: - Robust, circular or rectangular form factor with a threaded coupling system - IP68 rated environmental sealing for outdoor or industrial applications - Stable connection under vibration and mechanical stress - Suitable for power transmission, sensor signals, and control circuits - Widely used in machinery, automation, automotive, and outdoor equipment

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

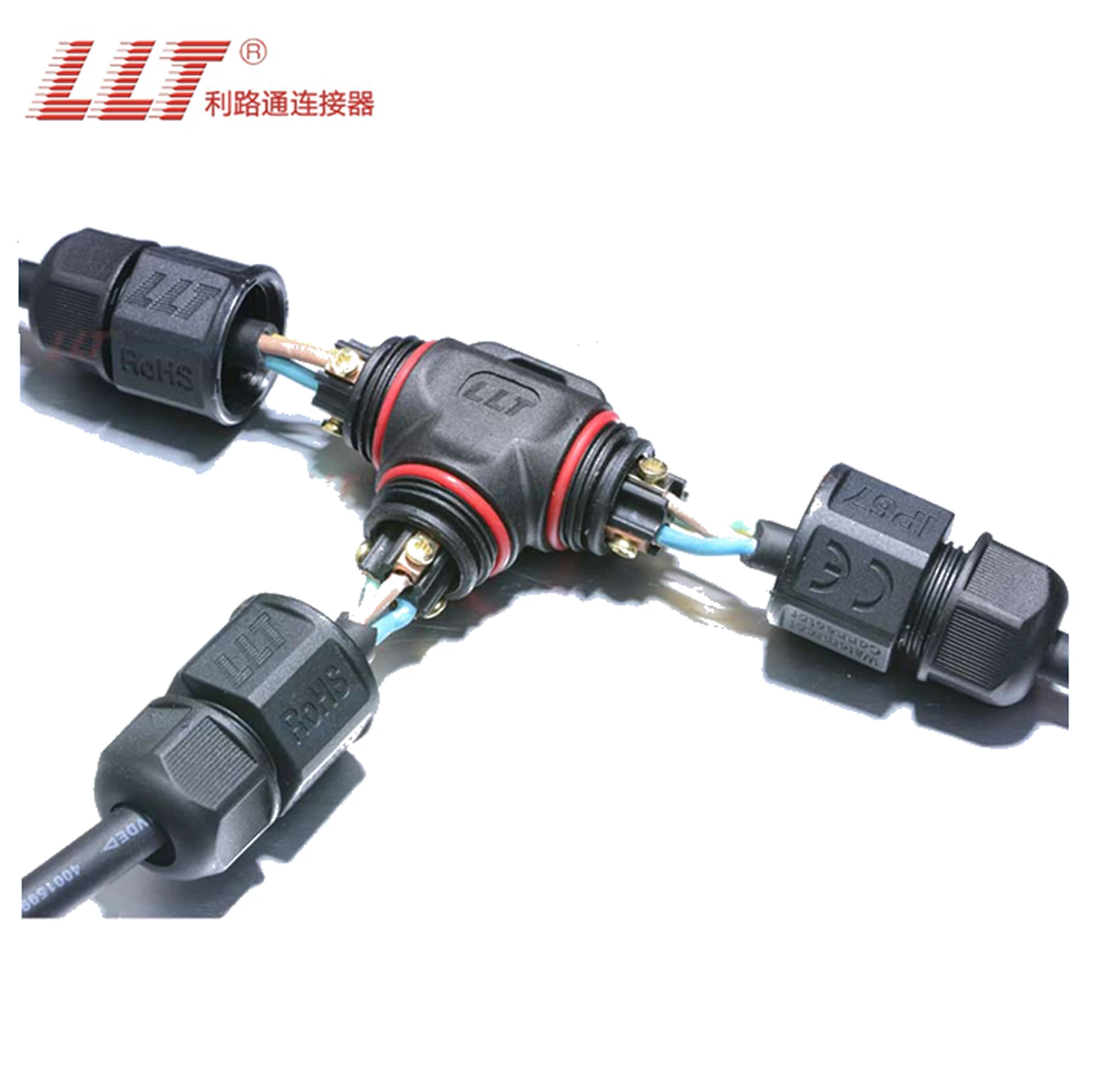

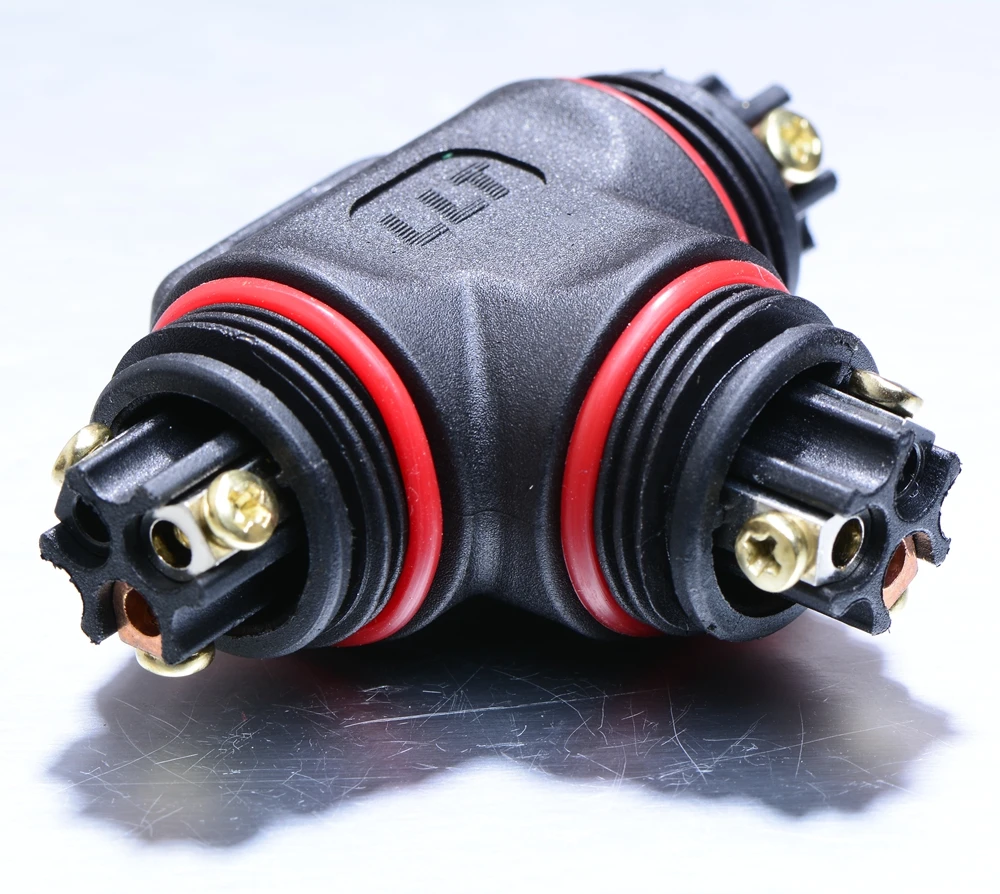

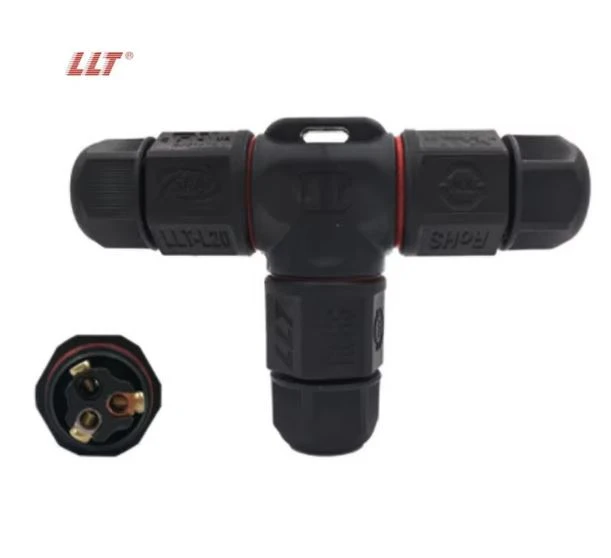

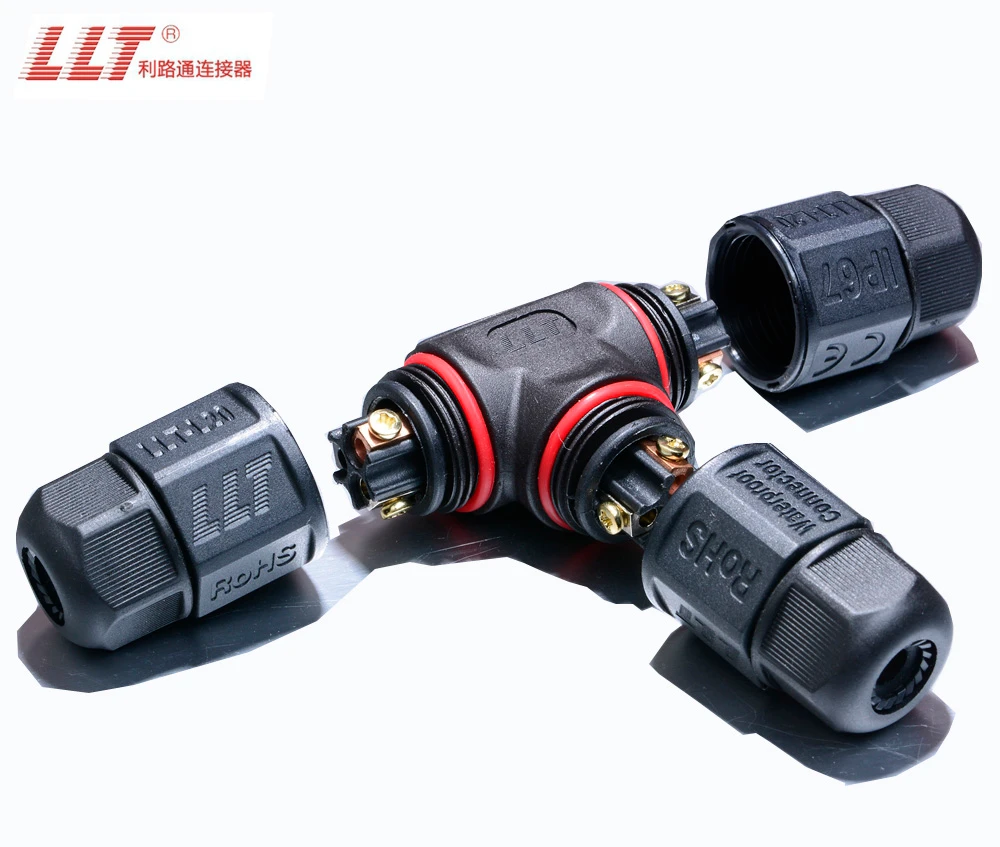

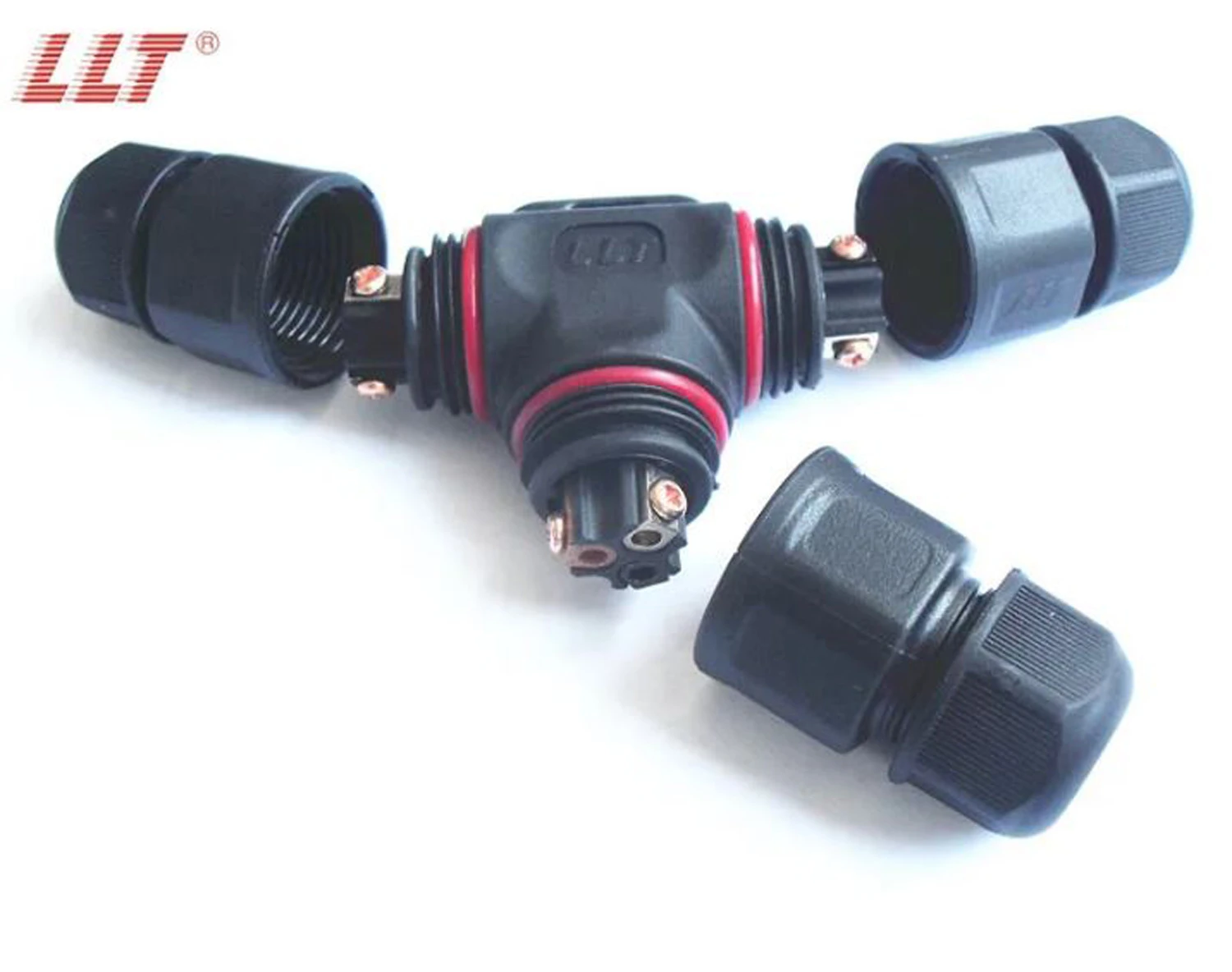

Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 1
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 2
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 3
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 4
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 5
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 6
Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector gallery image 7

Technical FAQ

What should be confirmed before selecting Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector is currently configured around 2 to 4pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for Ip68 Circular 3pin L20 T Shape 3way Led Power Electrical Screw Wire Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
