LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector is a published reference for industrial ethernet links in outdoor or washdown-prone equipment. The visible configuration highlights sealing around IP65/IP67, 10A+5A current range, 2+4 pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is by molding, which should be checked against the actual harness build.

EMI Shielding Connector M16 Threaded Model: LLT-M16-15204F3054
M16 / Threaded LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

2+4 pin

IP Rating

IP65/IP67

Rated Current

10A+5A

Rated Voltage

300V+60V

Product Series

M16

Wiring Type

By molding

Interface Type

2-12pin/2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

M16 2+4PIN Hybrid Molded Cable Connector (Spec. Introduction) Full Specification Introduction The M16 2+4pin molded circular connector is hybrid power-signal integrated overmolded cable connector complying with DIN EN61076-2-106 specification, consisting of 2 large-size power contacts + 4 fine signal pins inside one M16 threaded housing. Electrical Parameters • Rated Voltage: 300V for power pins, 60V for signal pins • Rated Current: Power pole: 10A each; Signal pole: 5A per pin • Contact Resistance: ≤5mΩ (gold-plated brass contacts) • Insulation Resistance: ≥1000MΩ Mechanical & Environmental • Locking: M16 screw thread locking, anti-vibration pull-off • Protection Grade: IP67 (integral PUR/PVC overmolding) • Operating Temperature: -40℃ ~ +105℃ • Mating Lifespan: ≥2000 insertion cycles • Applicable Cable OD: 3.5–8.5mm, customizable cable length & straight/right-angle shape Feature & Application Integrated molding eliminates on-site wiring; shielded optional for EMI shielding to stabilize data transmission. Ideal for small servo motors, proximity sensors, automation actuators, industrial camera power & data connecting.

Application Fit

Typical application directions

  • Industrial Ethernet links in outdoor or washdown-prone equipment
  • Control cabinets, gateways, and monitoring nodes that need ingress protection
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A+5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

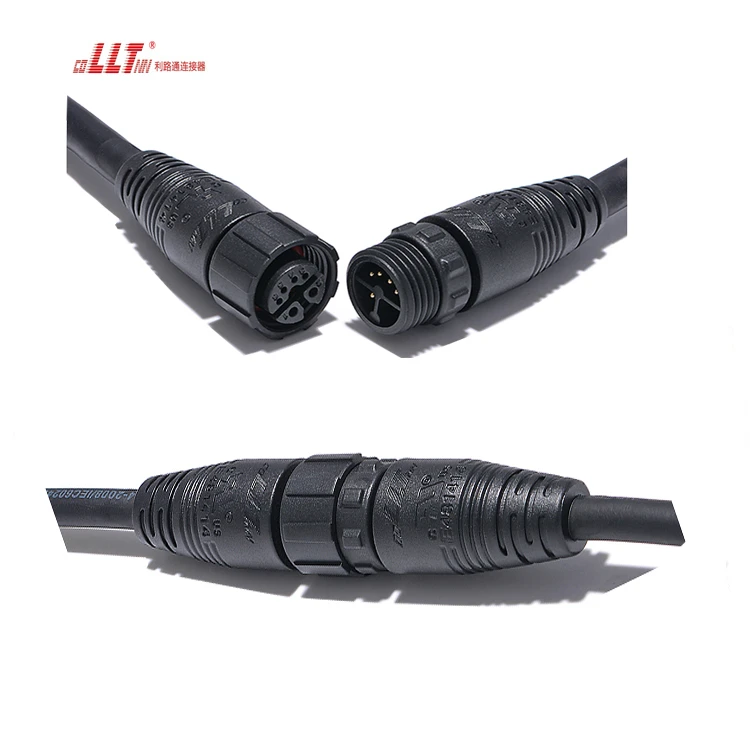

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 1

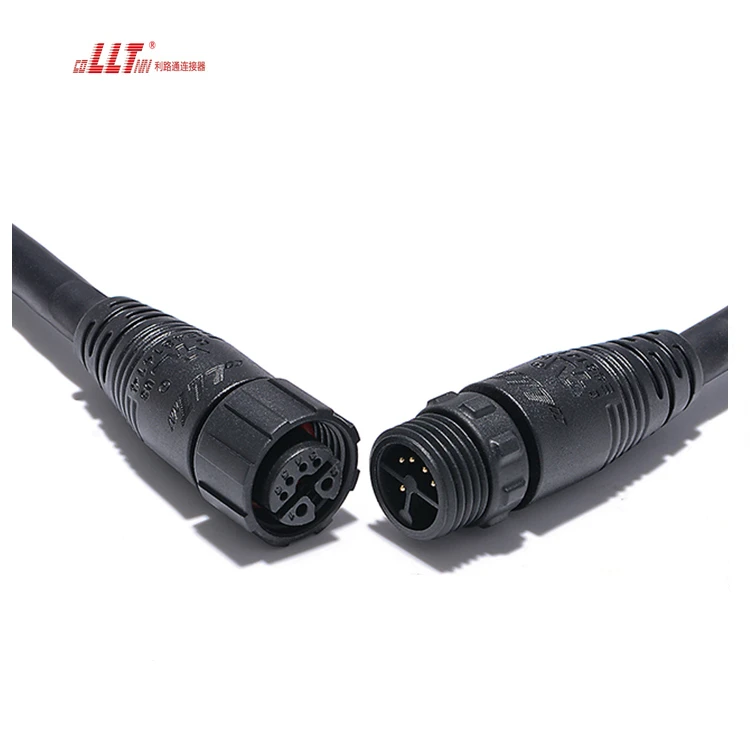

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 2

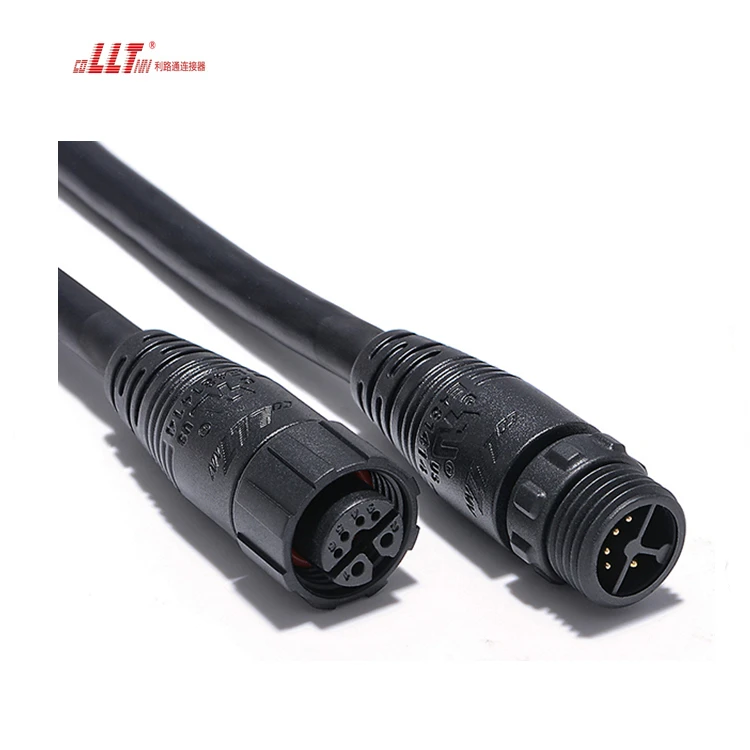

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 3

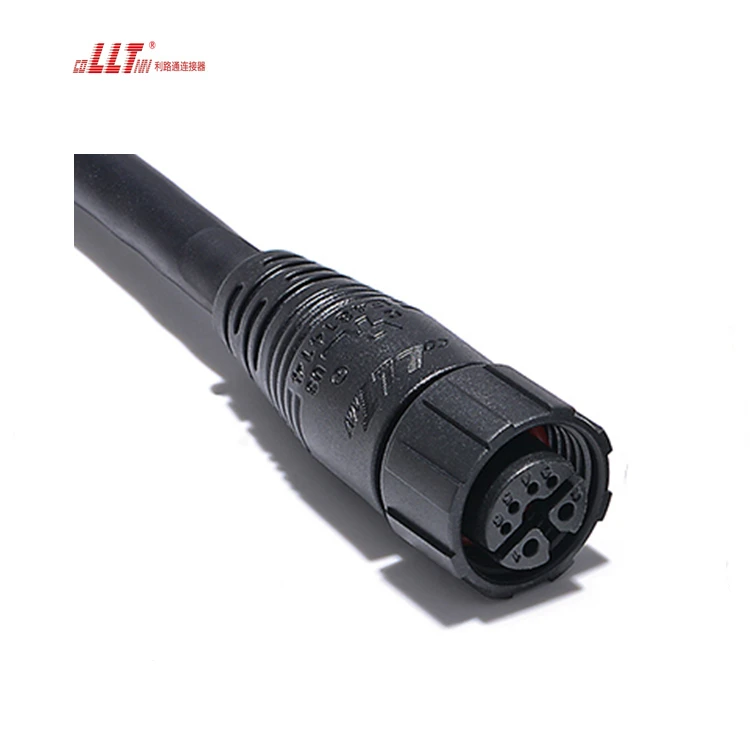

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 4

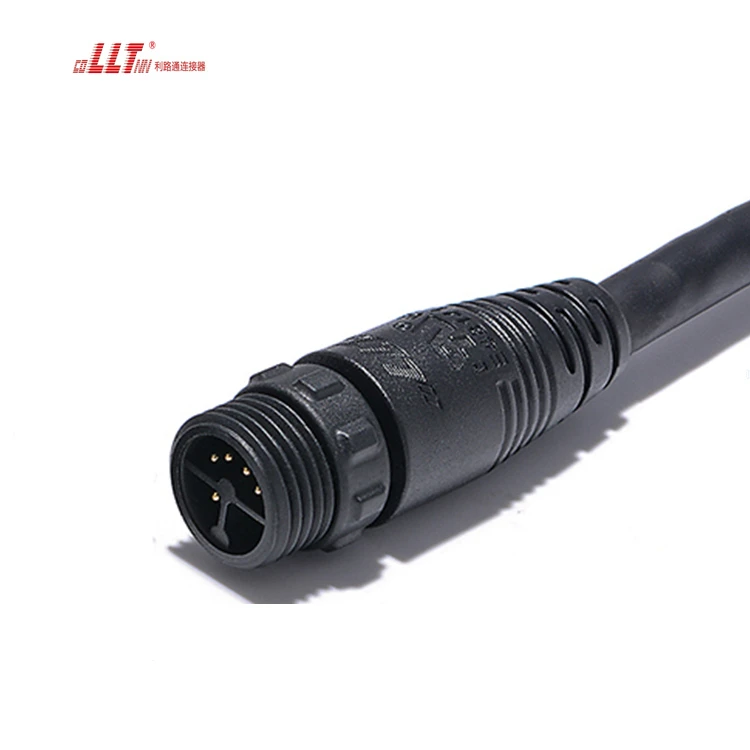

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 5

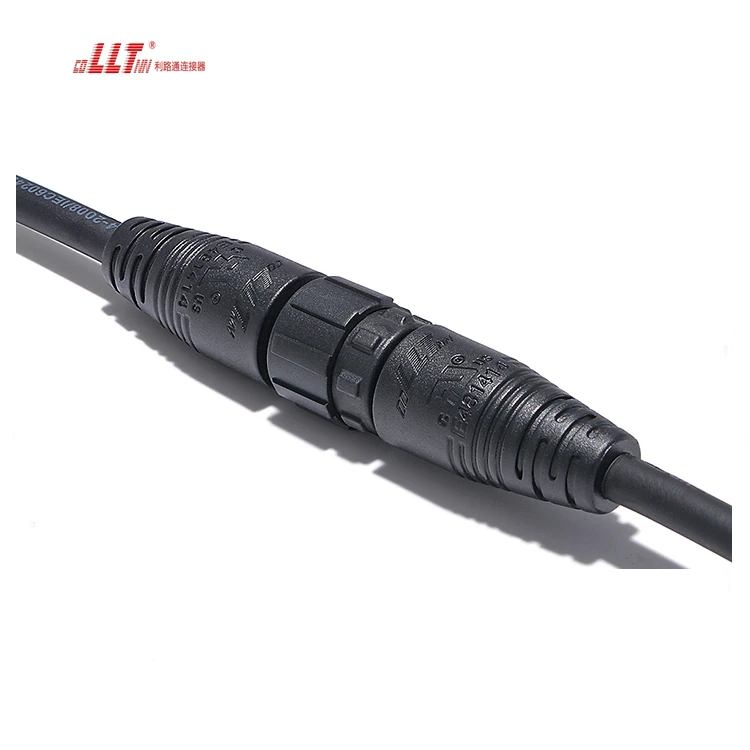

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 6

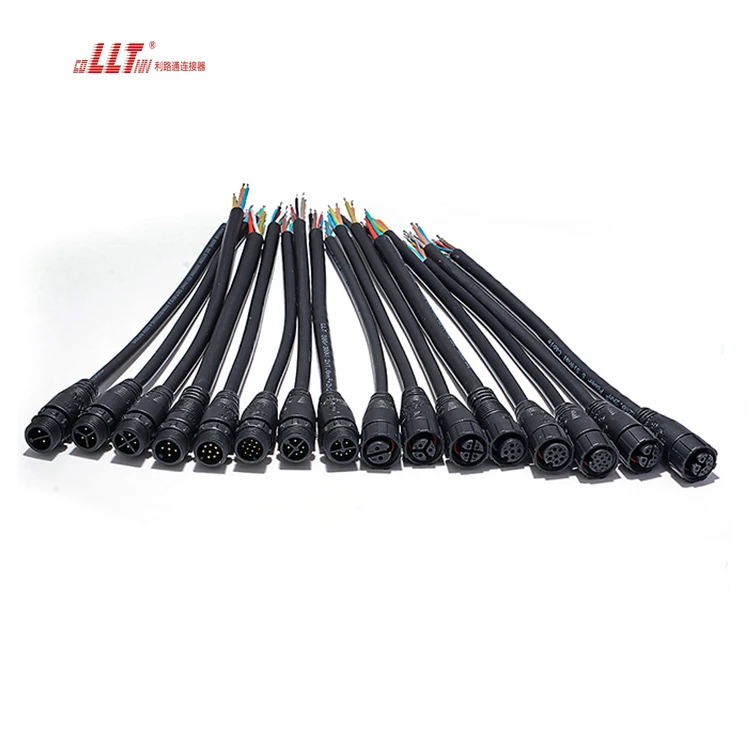

LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 10A+5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 2+4pin Power Plus signal M16 Male Female Light Data Cable Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
