LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP65/IP67, 10A+5A current range, 2+3pin pin layout, 2 to 8pin interface. Termination direction is by molding, which should be checked against the actual harness build.

EMI Shielding Connector M12 Push-Lock Model: LLT-M12-10203F3034
M12 / Push-Lock LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M12

Pin

2+3pin

IP Rating

IP65/IP67

Rated Current

10A+5A

Rated Voltage

110V+60V

Product Series

M12

Wiring Type

By molding

Interface Type

2 to 8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This LLT M12 2+3Pin molded cable self-locking connector is a circular, waterproof, industrial-grade connector with a 12mm thread diameter. It features a 2+3 pin configuration (2 power pins + 3 signal pins) and is pre-molded with a cable for a one-piece, durable assembly. The self-locking design enables quick, tool-free connection and disconnection. Key Features - Pin Configuration: 2+3 pins (2 power, 3 signal) - Locking Mechanism: Push-pull self-locking - Molded Cable: Integrated overmolded shield cable (PVC / PUR / TPU) - Protection Grade: IP67 / IP68 (dustproof & waterproof) - Contact Material: Gold-plated brass - Housing Material: PA66 nylon (flame retardant) - Operating Temperature: -40°C ~ +105°C - Mechanical Life: ≥3000 mating cycles - Compliance: RoHS, REACH, CE,UL,TUV Technical Specifications - Rated Voltage: 110V+60V AC DC - Rated Current: 10A (power) + 5A (signal) - Wire Gauge: Power 16–20AWG; Signal 22-24AWG - Insulation Resistance: >100MΩ - Cable OD: 4–8mm Applications - E-mobility: E-scooter / E-bike charging & signal transmission - Industrial Automation: Sensors, actuators, fieldbus - Outdoor Equipment: LED lighting, solar systems - Marine & Automotive: Harsh environment wiring Advantages - Dual Function: Combines power & signal in one connector - Easy Installation: Tool-free push-pull locking - Rugged & Reliable: Molded cable design, vibration-resistant - High Protection: IP67/IP68 for harsh industrial/outdoor use - Compact: Standard M12 size for space-saving installation

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 10A+5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 1

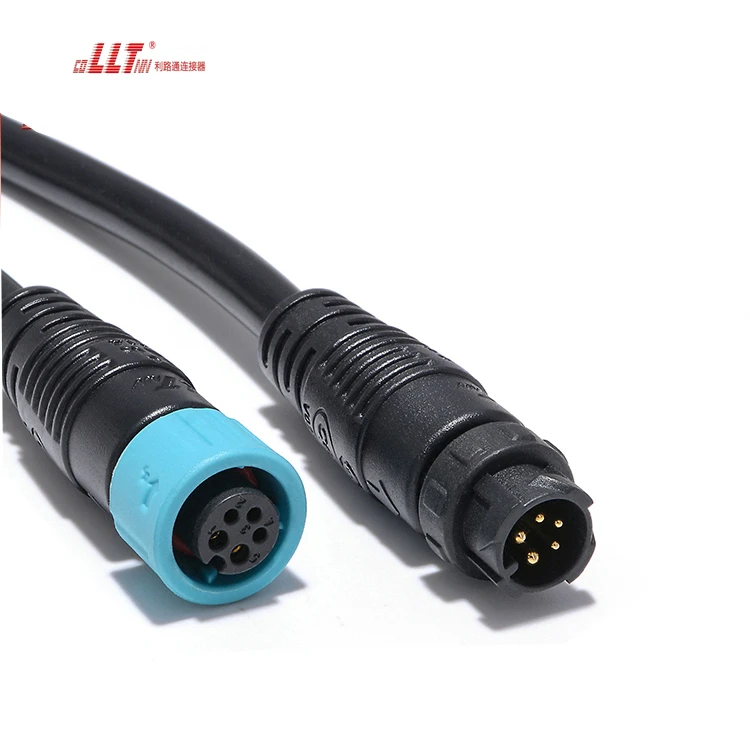

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 2

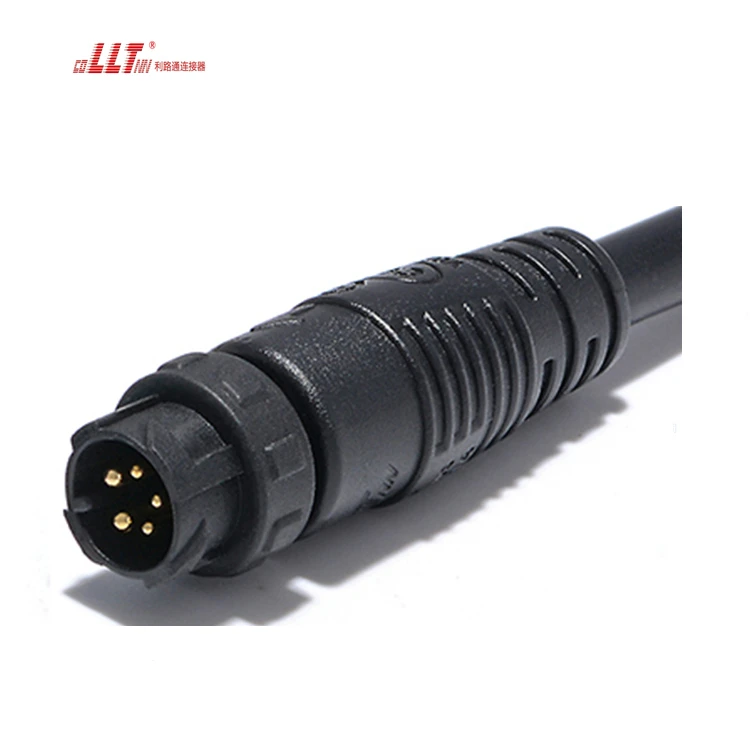

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 3

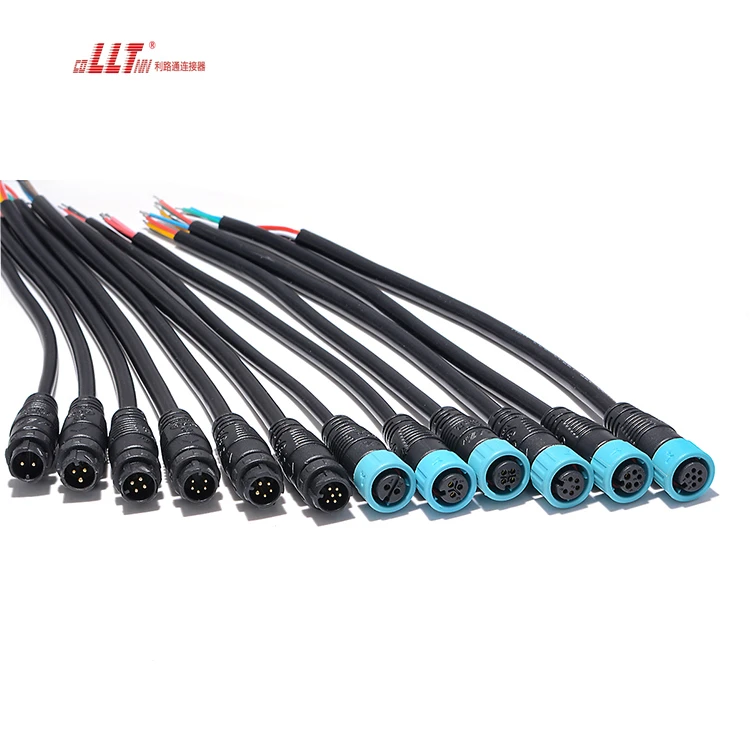

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 4

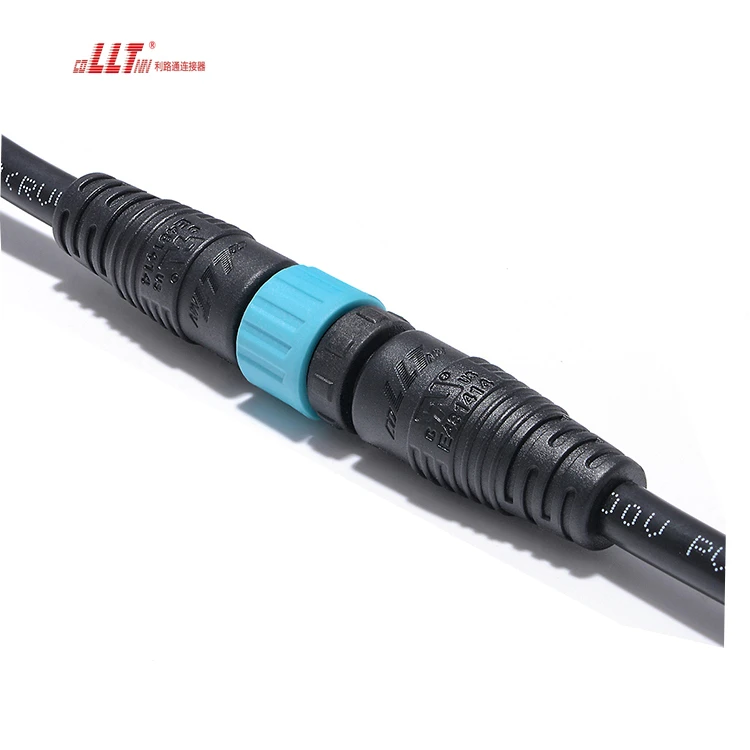

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 5

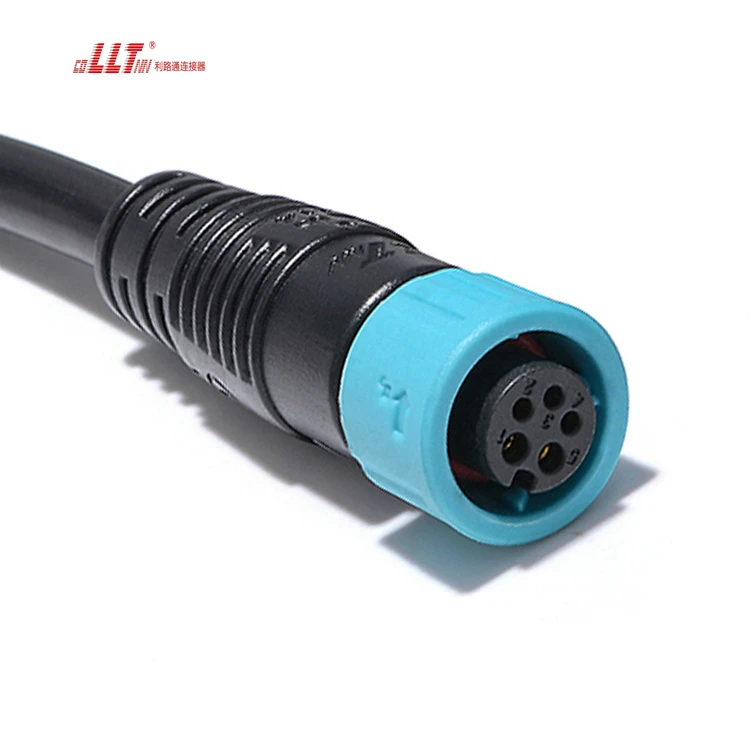

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 6

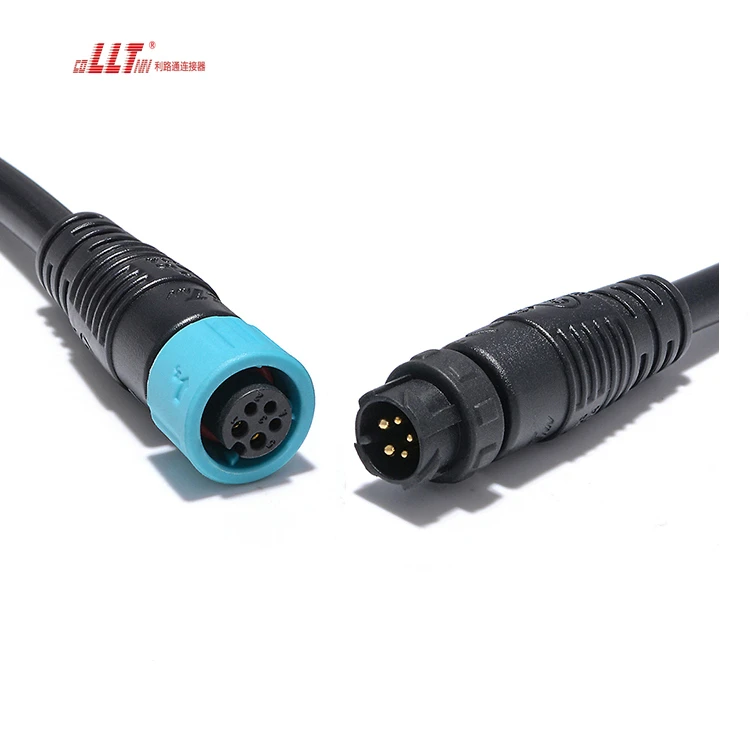

LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector is currently configured around 2 to 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 10A+5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 2+3 Pin M12 Automotive Push Shield Cable Circular Ac Dc Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
