LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting

LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67, 15A current range, 2-12 pin layout.

Docking Connector M16 Push-Lock Model: LLT-M16-15003F1031
M16 / Push-Lock LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

2-12

IP Rating

IP67

Rated Current

15A

Rated Voltage

250V

Product Series

M16

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Waterproof Connectors: 1. We have almost all the pins from 2 to 18 pin, they can transmit power and signals. 2. Good quality, they are certificated by UL,CE,TUV,CQC,RoHS,IP67/IP68. Its quality can pass other certification standards if you want to do it. 3. Both push locking and screw locking are optional. 4. Plenty of options, field assembly connector(straight through & 90 degrees), molded with cable connector(straight through, 90 degrees and T connector), USB and RJ45 connector, 2/3/4 way field assembly connector, circular/square/rhombus socket. 5. Free combination, connect them by male female or panel mount as you like. 6. OEM & ODM are always welcome

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 15A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting gallery image 1
LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting gallery image 2

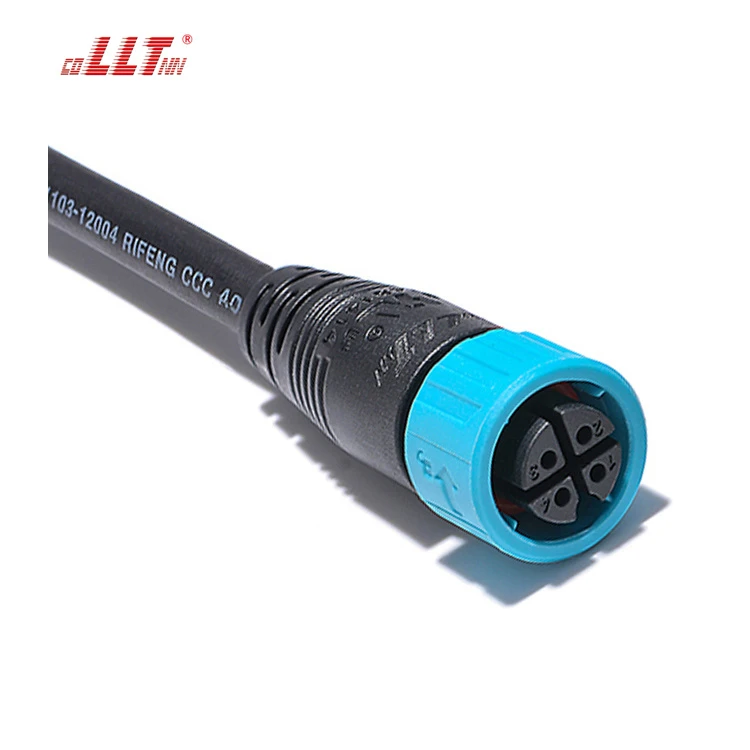

LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting gallery image 3

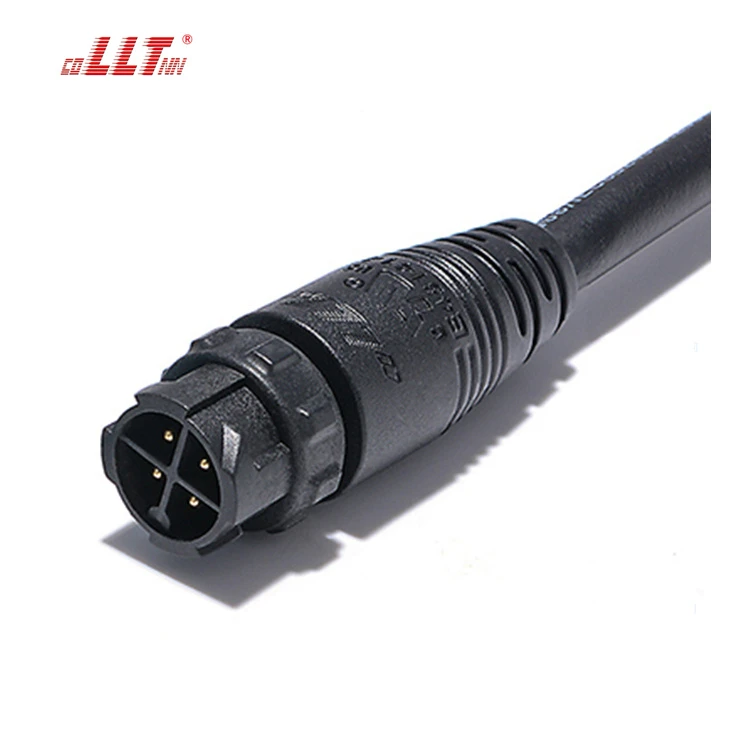

LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting gallery image 4

Technical FAQ

What should be confirmed before selecting LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M16 Male Female Waterproof 2 3 4 5 Pin LED Cable Connector for Outdoor Power Lighting?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
