LLT Connector Product

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector

Name: LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M12-10003F3054

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP65/IP67, 10A current range, 3pin pin layout, thread lock interface. Termination direction is by molding, which should be checked against the actual harness build.

Connector Accesories M12 Threaded Model: LLT-M12-10003F3054

M12 / Threaded LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M12-3pin molded cable connector can get IP65/ IP67 waterproof protection. under the normal temperature,plug the male female connector put into the 1m depth water,after 4 hours inner connector have no immersion happened. It is very convenient to assemble. The male mate female through thread lock. It can mold the outer diameter less than 9mm PVC,Ruber cable,We can produce the customized cable length. Our factory specilize in this field around twenty five years,we rank in the top manufacturer.We Own full sets certificate,such as UL,TUV,CE Rohs,SAA, CCC conform to to all market;We can provide competitive price;Support ODM,OEM,customized design;100% quality guarantee,12 months warranty;Reliable after-sales service,salesman 24 hours on line to solve your question

Application Fit

Typical application directions

Protective caps, mounting hardware, sealing elements, and support parts that keep the main connector system reliable.
Support hardware for panel integration, cable exit control, and field-service protection.
Projects targeting IP65/IP67 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 10A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. L Series Lighting Connectors Outdoor lighting connector reference for field installation and sealing review.

Visual Gallery

Product details, interface geometry, and cable integration views

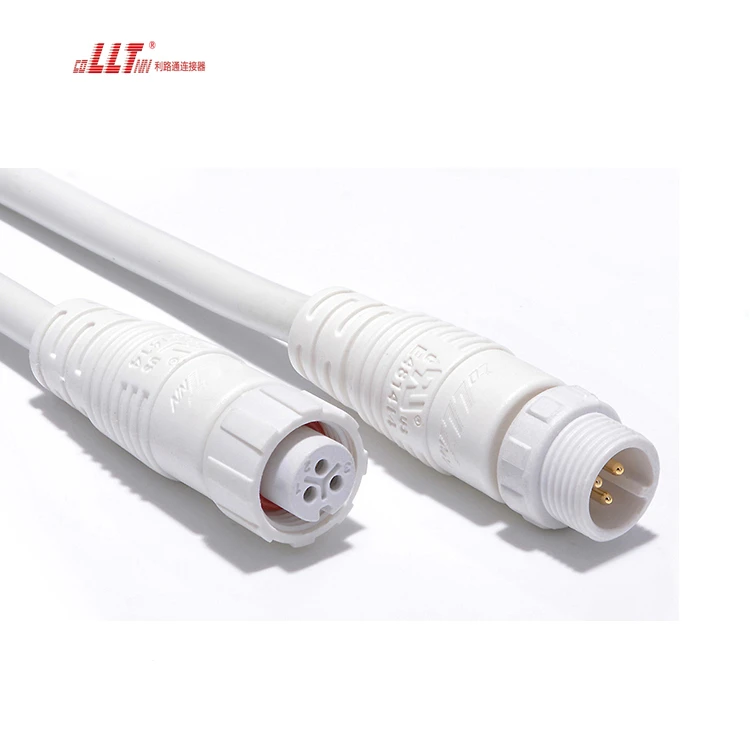

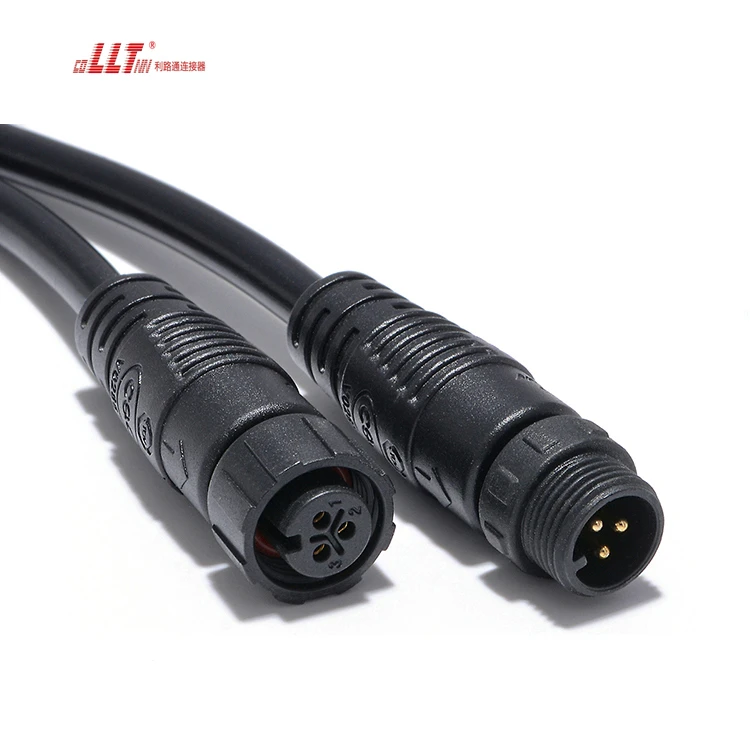

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 1

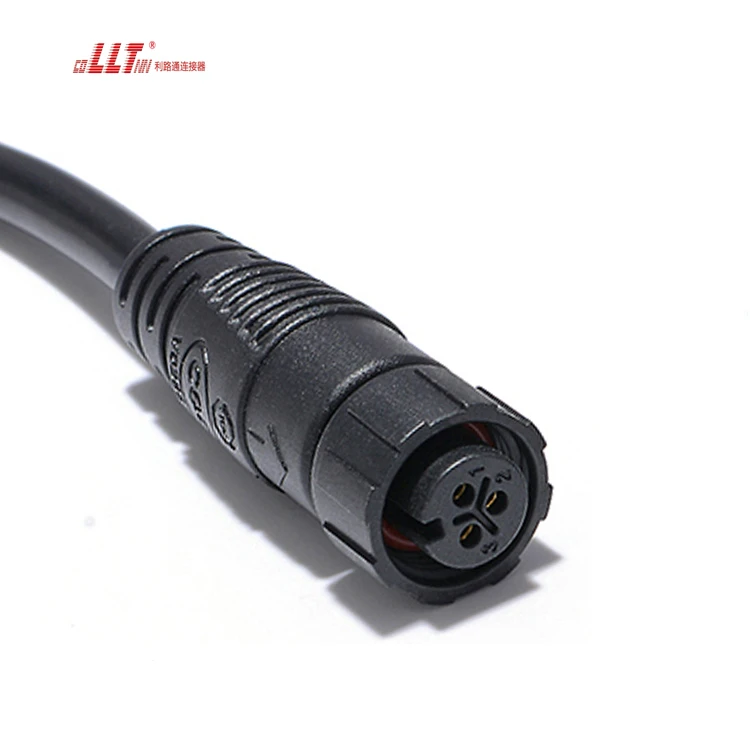

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 2

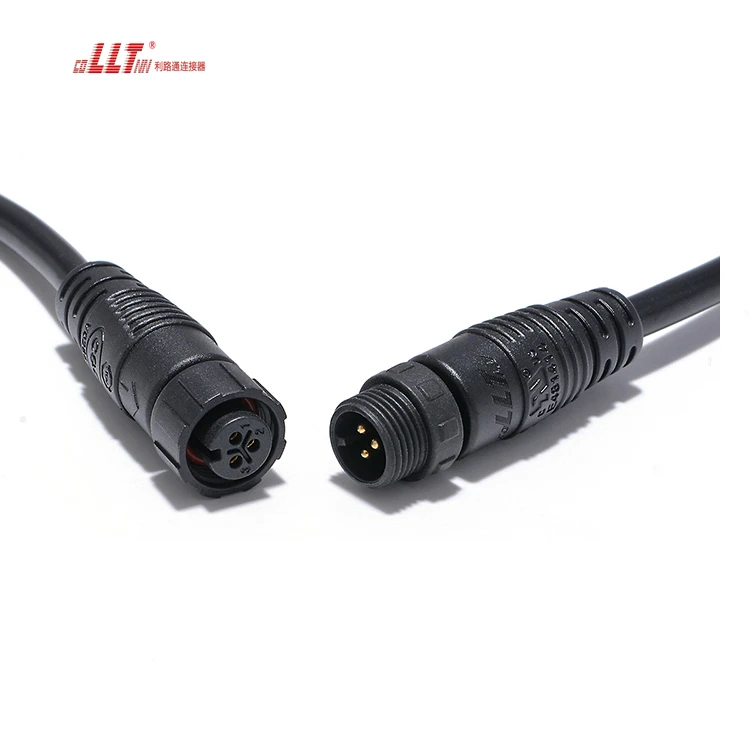

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 3

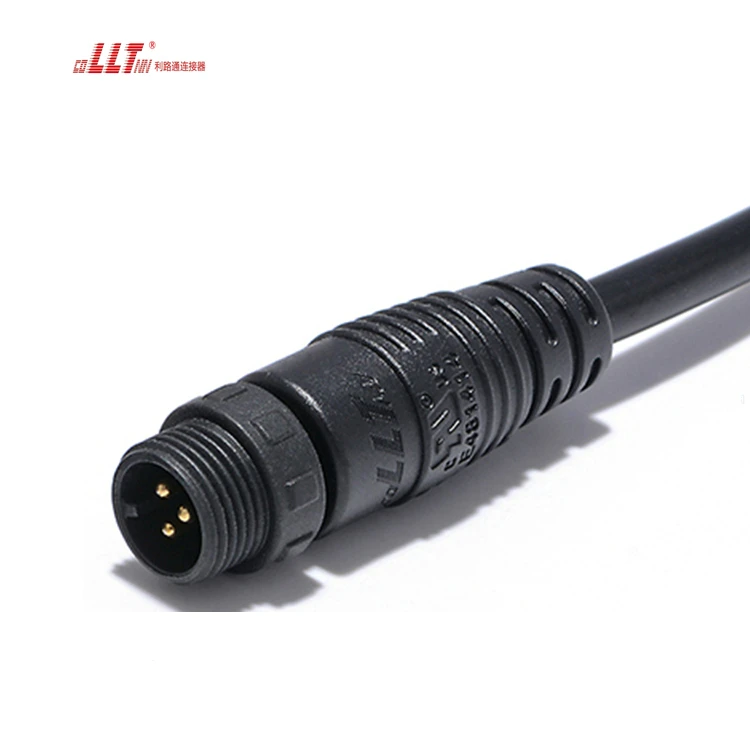

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 4

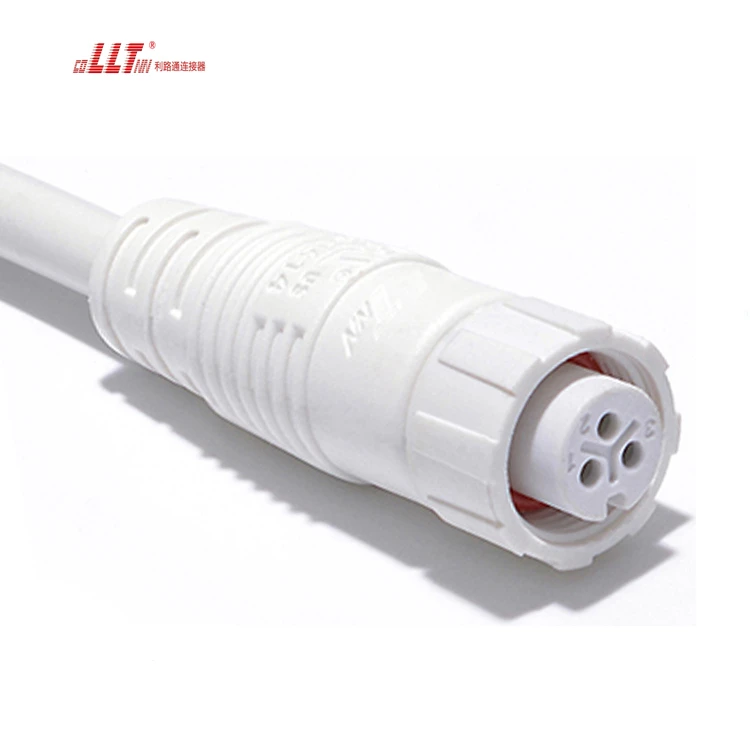

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 5

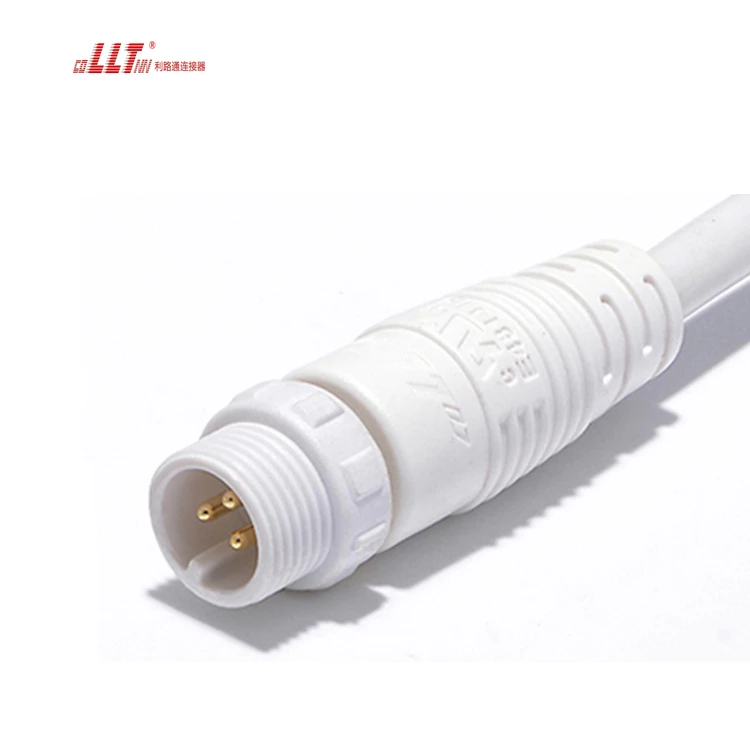

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 6

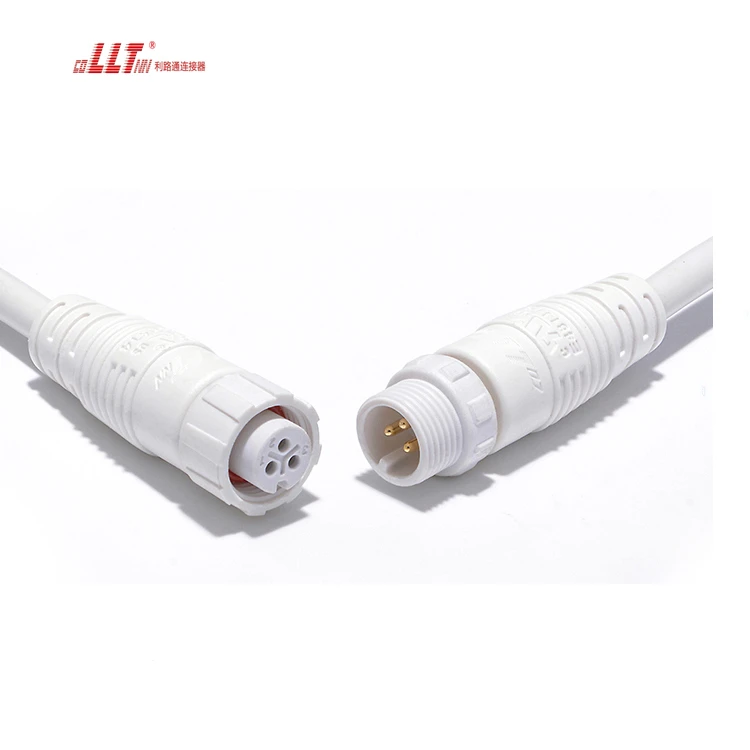

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 7

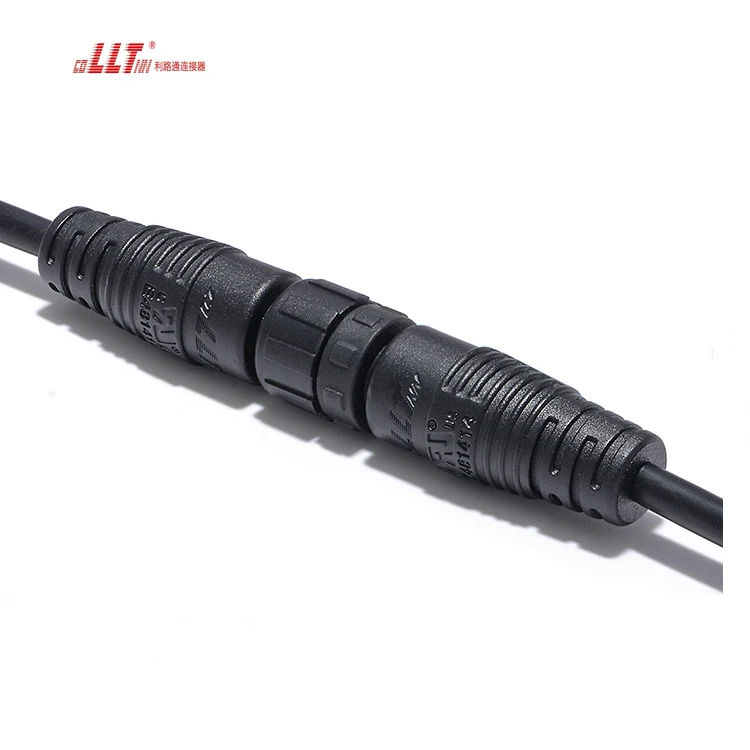

LLT M12 3pin Battery Charge Outdoor Cable IP67 Waterproof Cable Connector gallery image 8
