LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector

LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector is a published reference for control cabinets and machine enclosures requiring front-to-rear sealed interfaces. The visible configuration highlights sealing around IP65/IP67, 5A current range, 4pin pin layout, 2 to 5pin interface. Termination direction is by solder, which should be checked against the actual harness build.

Waterproof Wire Connectors M8 Threaded Model: LLT-M8-05004F3791
M8 / Threaded LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M8

Pin

4pin

IP Rating

IP65/IP67

Rated Current

5A

Rated Voltage

60V

Product Series

M8

Wiring Type

by Solder

Interface Type

2 to 5pin

Mating Cycles

>=2000

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

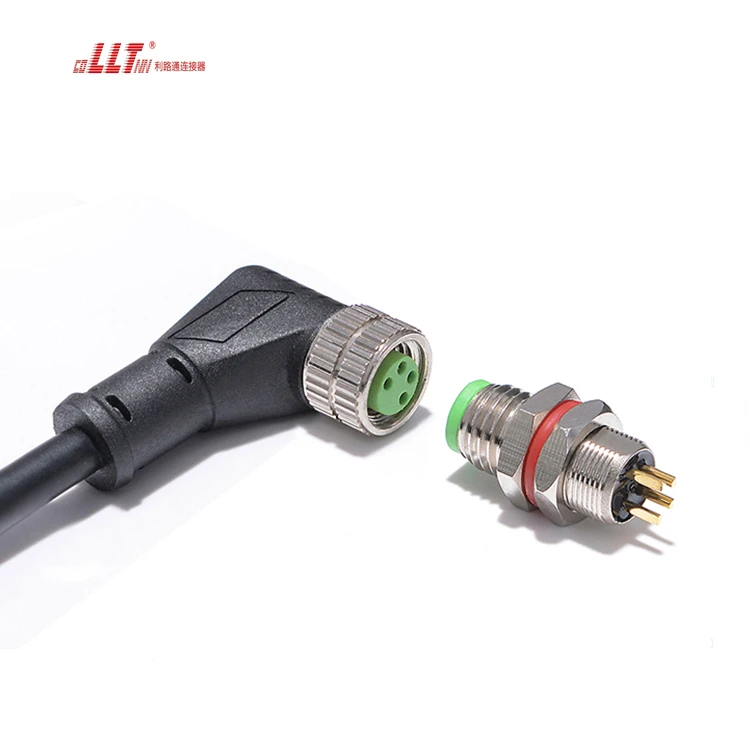

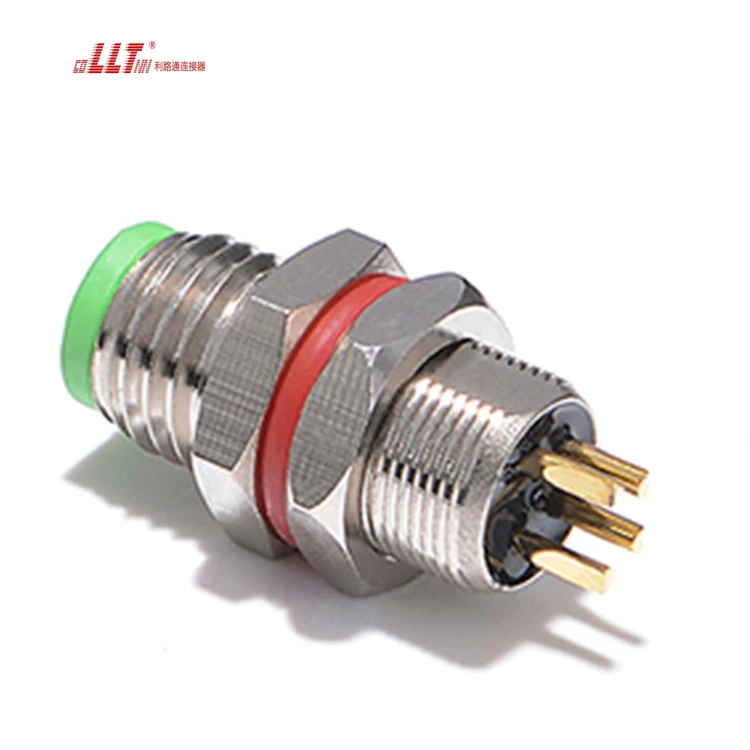

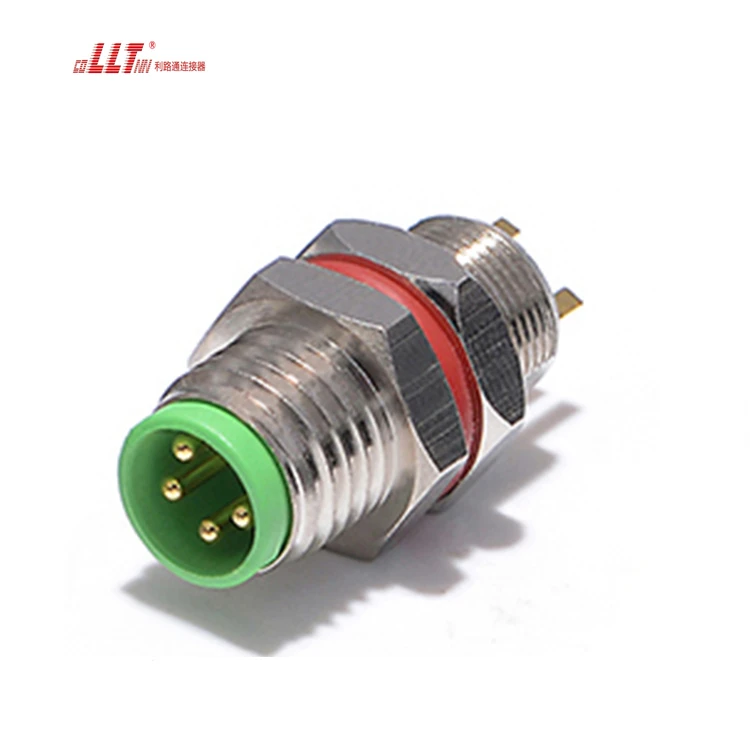

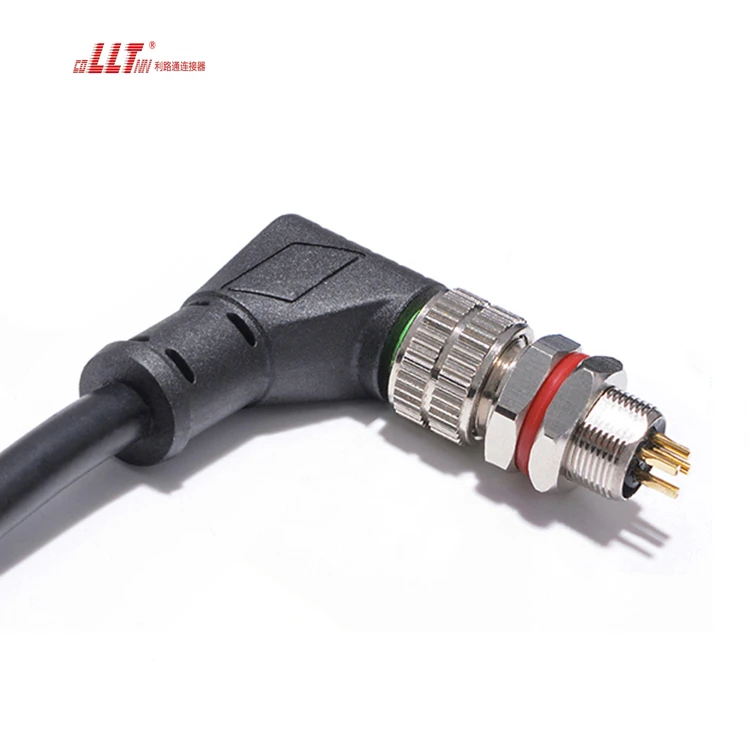

This M8-4pin right angle panel molded cable connector can get IP65/IP67 waterproof rate,male connector mate female connector via thread lock.The body matrial is PA66, V-0 fire retardant. Conduct material is plated gold brass.It can burden 5A/60V This model 2-5pin can be choice, It can mold the outer diameter less than 7mm PVC,Ruber cable.We can produce it with customized cable length following different requirement.The Work temperature is Minus 25℃ to 105℃. It is widely used in Grow light, LED light,Outdoor light,Signal transmission,Power drive,Illuminating industry and et cetera. We have cooperated with domestic and abroad customers, winning many project,such as Beijing Olympic Game Stadium,Bird's Nest,Water Cube,Bangkok New International Airport,Shanghai World Expo and etc, I wish we can win your project,looking forward to cooperating with you.

Application Fit

Typical application directions

  • Control cabinets and machine enclosures requiring front-to-rear sealed interfaces
  • Distributed I/O points where panel thickness and rear-space limits affect part choice
  • Projects targeting IP65/IP67 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 1
LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 2
LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 3
LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 4
LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 5
LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector is currently configured around 2 to 5pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Connector 4pin M8 electrical solder wire cctv accessories panel cable connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
