M19 3+5 Push-Lock Waterproof Connector for Three-Phase Motor Power and Signal Control
M19 3+5 Push-Lock Waterproof Connector for Three-Phase Motor Power and Signal Control is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 20A current range, 3+5 pin layout, push-lok interface. Termination direction is soldering, which should be checked against the actual harness build.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: admin
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M19
Pin
3+5
IP Rating
IP67/IP68
Rated Current
20A
Rated Voltage
600V
Product Series
M19
Wiring Type
Soldering
Interface Type
Push-lok
Complies with product certification:
System certification:
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP67/IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A current requirements.
Technical Resources
Catalog and supporting references

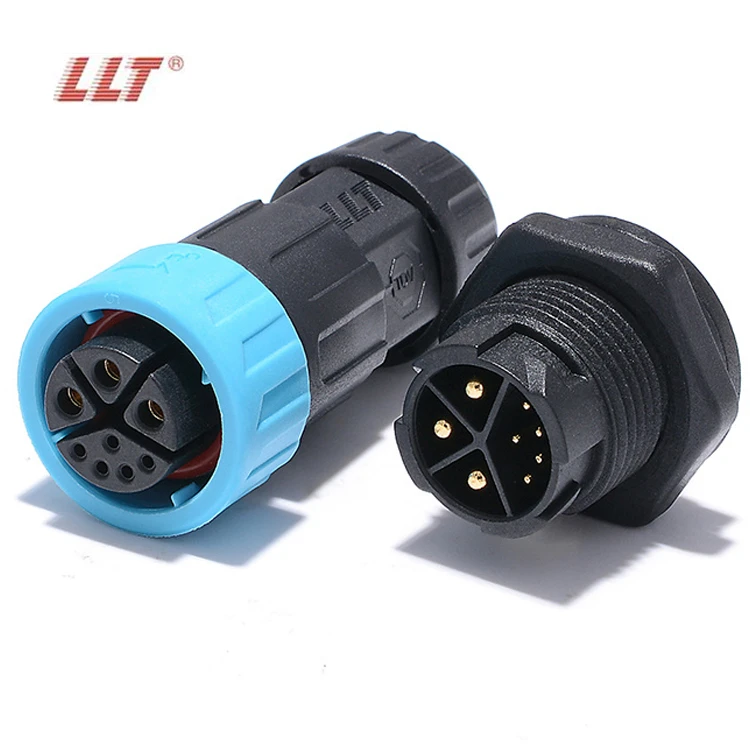

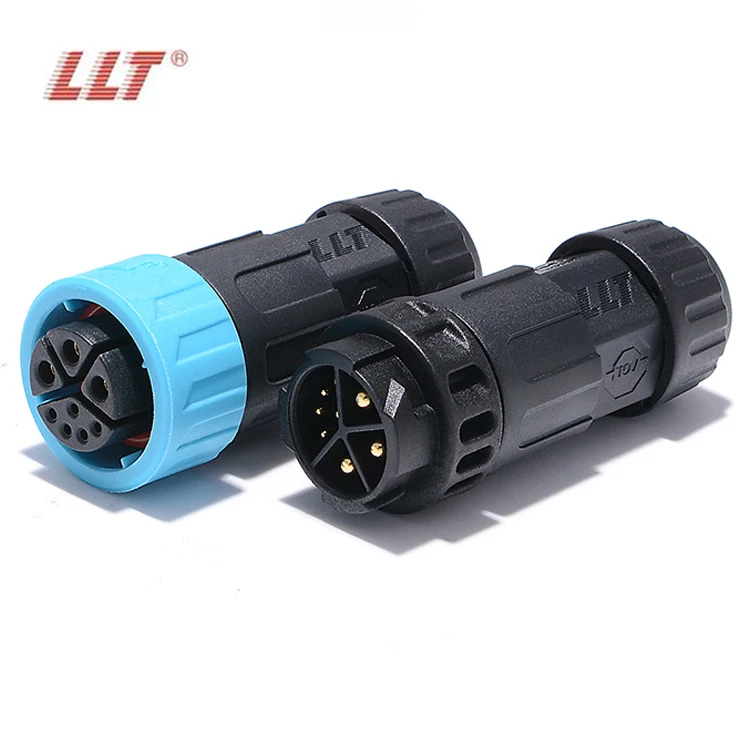

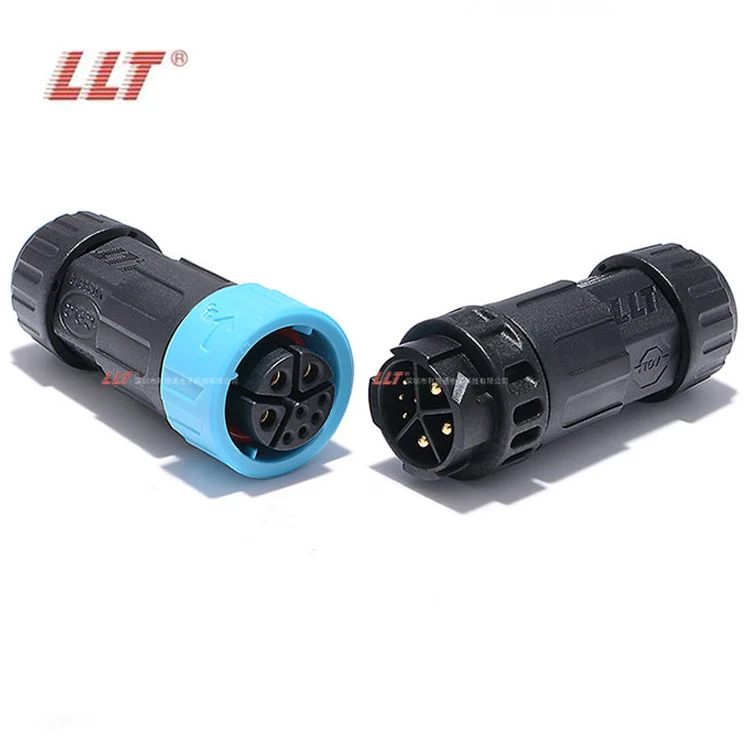

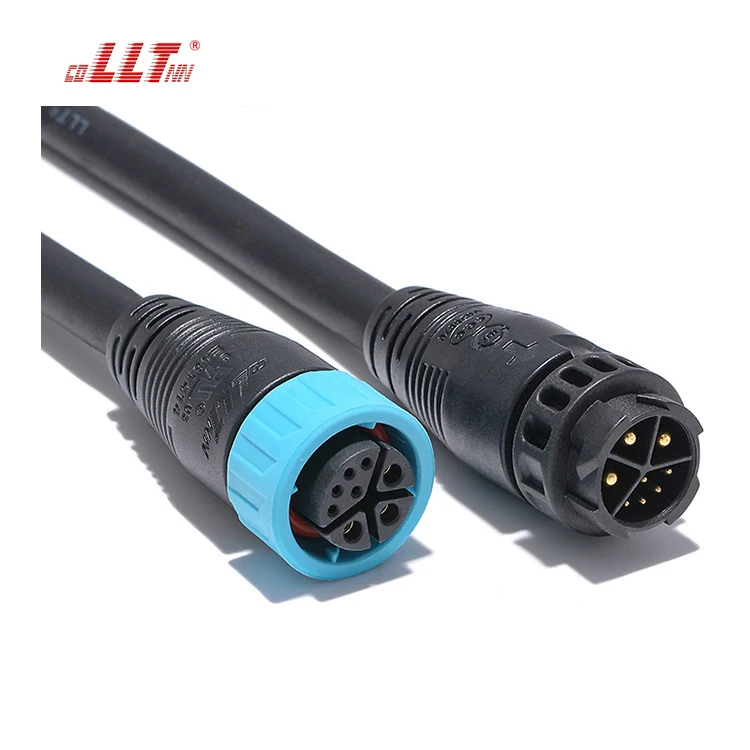

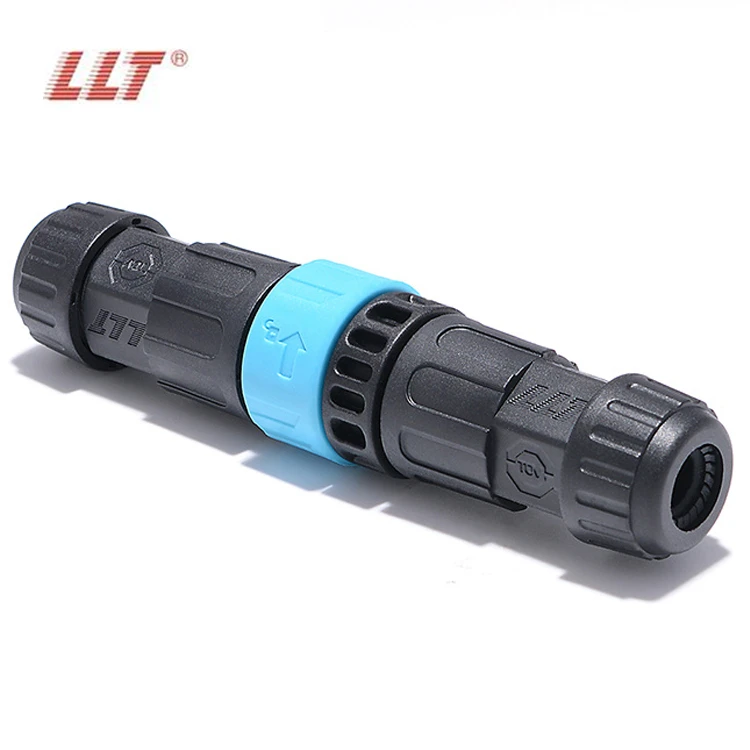

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting M19 3+5 Push-Lock Waterproof Connector for Three-Phase Motor Power and Signal Control?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. M19 3+5 Push-Lock Waterproof Connector for Three-Phase Motor Power and Signal Control is currently configured around push-lok interface direction, so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for M19 3+5 Push-Lock Waterproof Connector for Three-Phase Motor Power and Signal Control?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
