LLT 5pin IP68 Plug Led Light Power Waterproof Connector

LLT 5pin IP68 Plug Led Light Power Waterproof Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP67/IP68, 5A current range, 5pin pin layout, 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface. Termination direction is soldering, which should be checked against the actual harness build.

Waterproof Plug Connectors M16 Threaded Model: LLT-M16-05005F1051
M16 / Threaded LLT 5pin IP68 Plug Led Light Power Waterproof Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

M16

Pin

5pin

IP Rating

IP67/IP68

Rated Current

5A

Rated Voltage

300V

Product Series

M16

Wiring Type

Soldering

Interface Type

2-12pin/2+2/2+3/2+4/3+3/2+8pin

Mating Cycles

>=3000 times

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M16-5pin circular plug is engineered for LED lighting systems, delivering steady power and signal transmission. It adopts threaded locking structure for firm connection against vibration.Rated at 300V AC and 5A, it features IP67/IP68 waterproof and dustproof performance. The flame-retardant PA66 housing and gold-plated brass contacts ensure great durability, anti-oxidation and low resistance. It works stably at -40°C to +105°C, conforms to CE and RoHS. Threaded locking avoids disconnection caused by shaking. Equipped with gold-plated contacts and flame-retardant shell, it features stable conductivity and long service life,It own 5.5/6.5/7.2/8.5mm grommet can meet different outer of this range diameter cable. this practical plug is widely used in all kinds of outdoor and commercial LED lighting facilities.Applied in outdoor LED lights, landscape lamps, architectural and industrial lighting.

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP67/IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 5A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

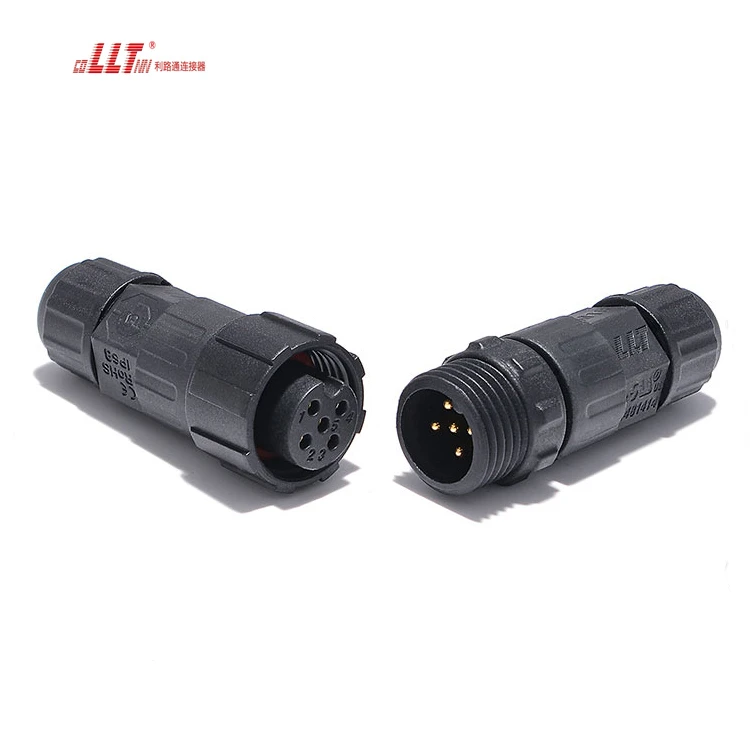

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 1

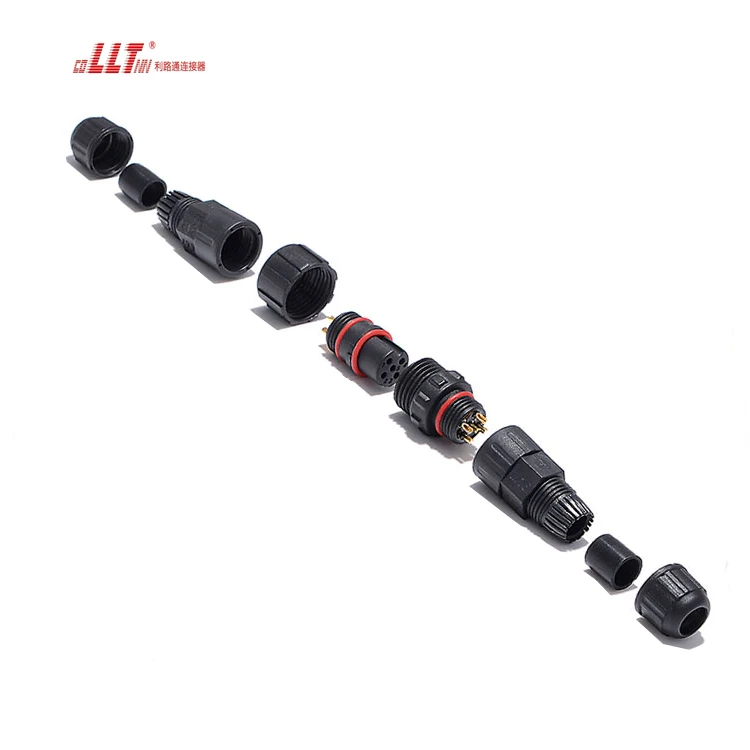

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 2

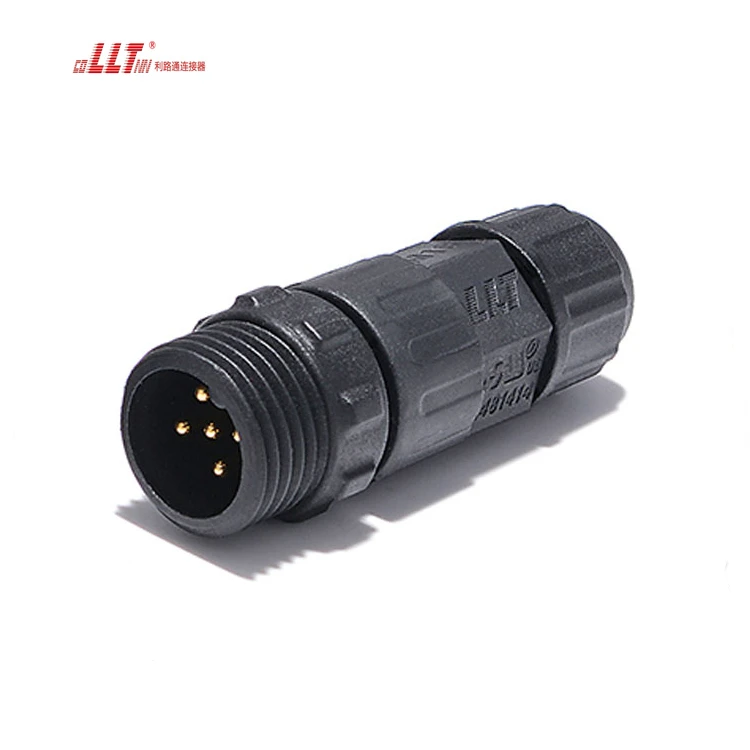

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 3

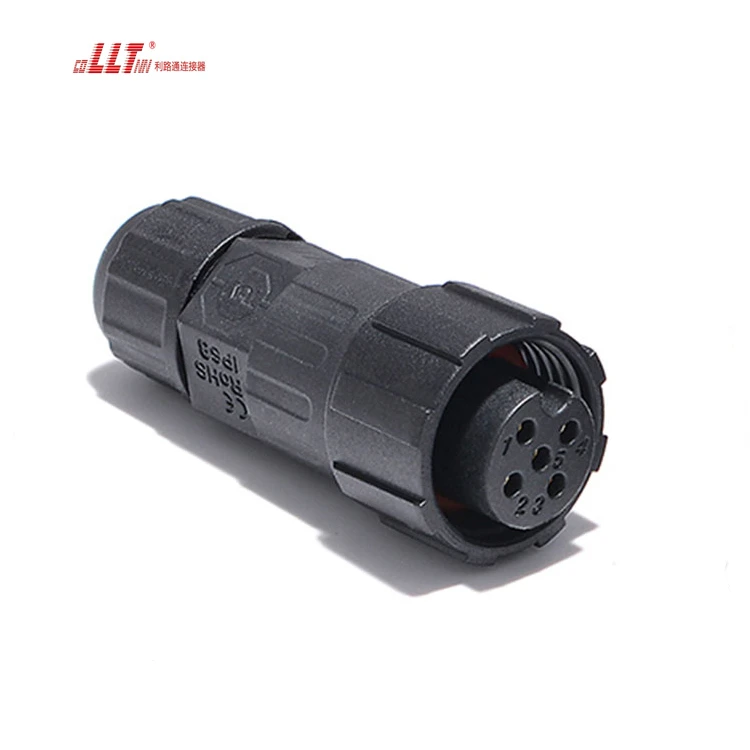

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 4

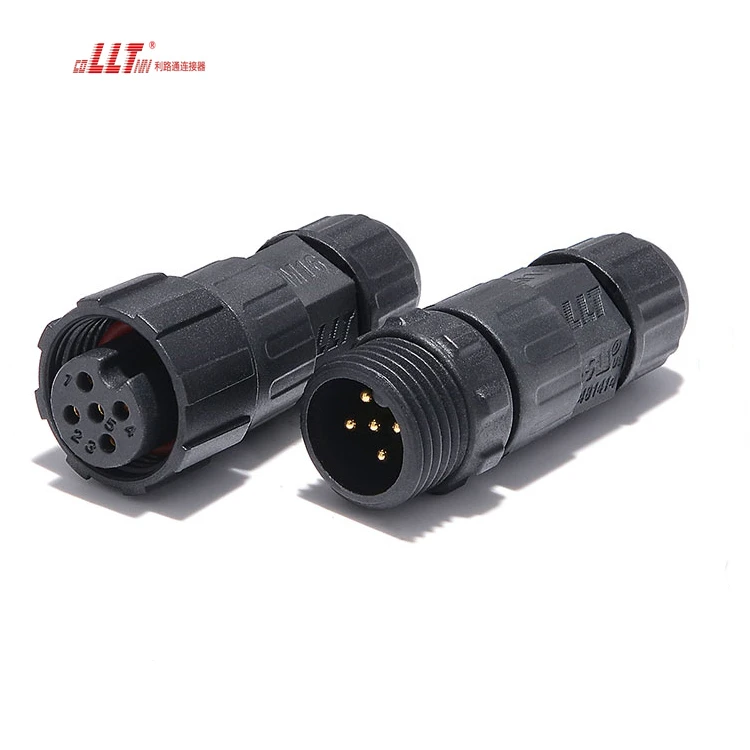

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 5

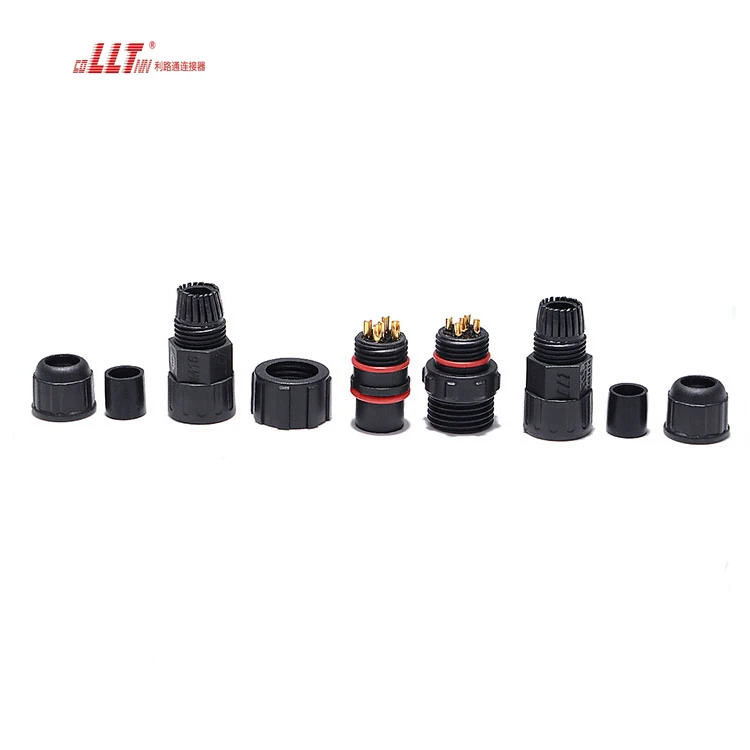

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 6

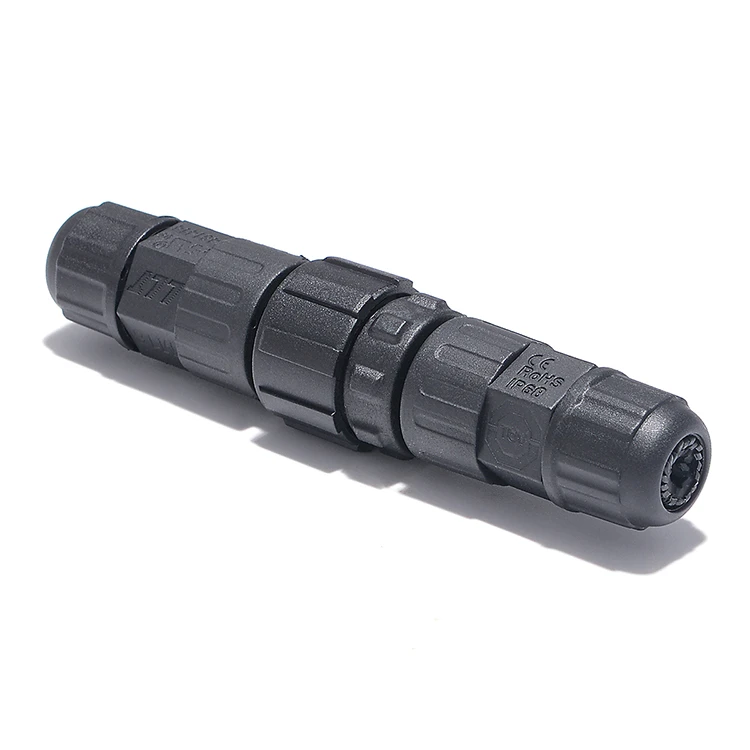

LLT 5pin IP68 Plug Led Light Power Waterproof Connector gallery image 7

Technical FAQ

What should be confirmed before selecting LLT 5pin IP68 Plug Led Light Power Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT 5pin IP68 Plug Led Light Power Waterproof Connector is currently configured around 2-12pin/2+2/2+3/2+4/3+3/2+8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP67/IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 5pin IP68 Plug Led Light Power Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.

Request Quote Open Waterproof Plug Connectors
