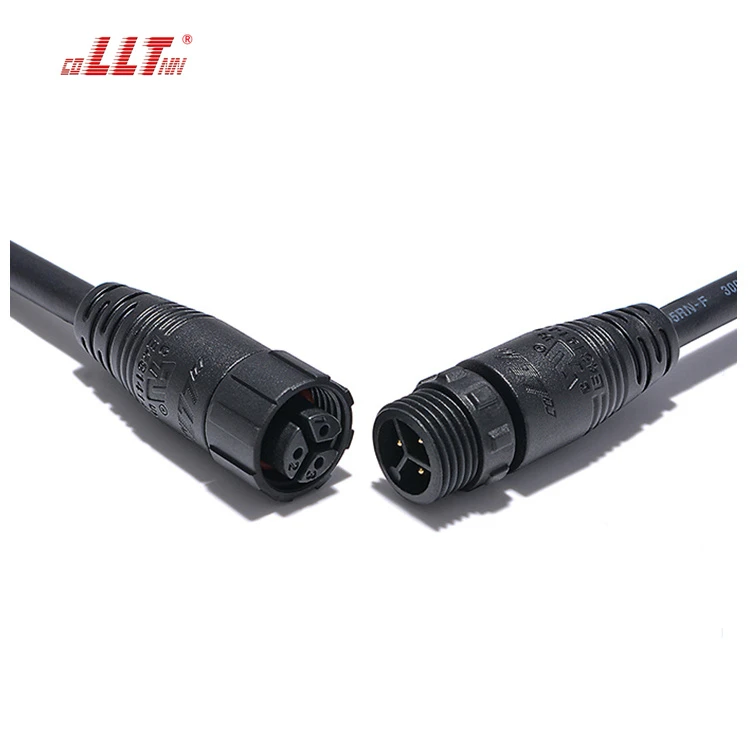

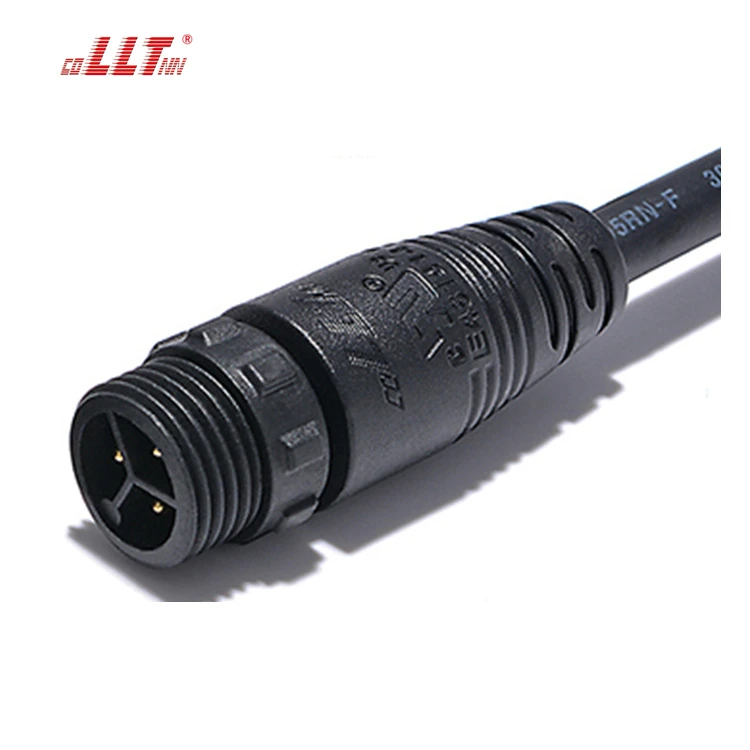

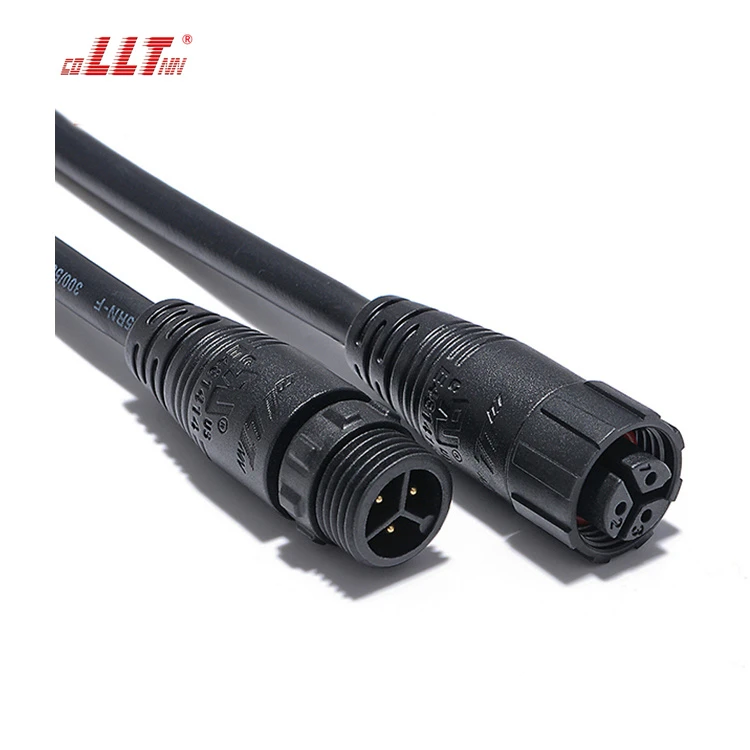

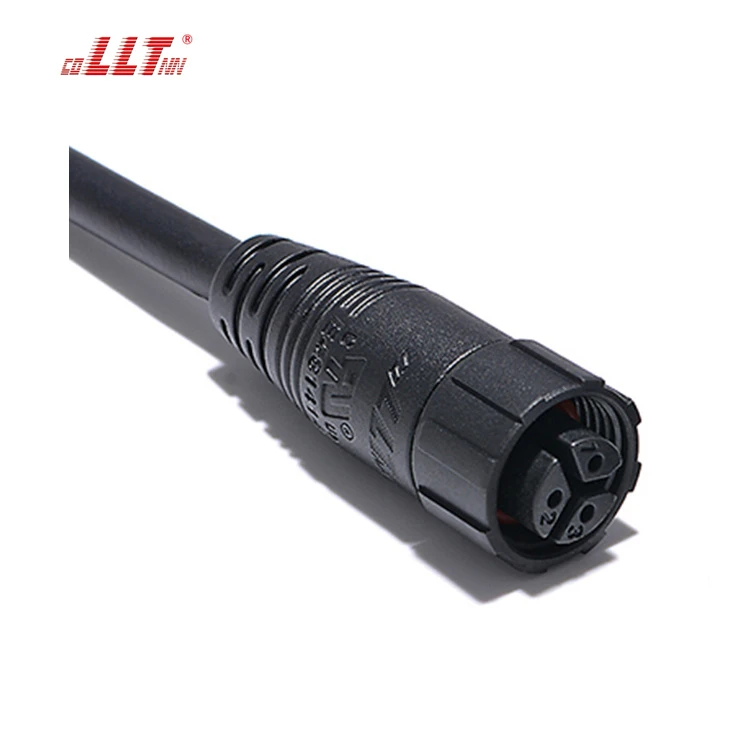

LLT M16 300V 15A 3 Pin Waterproof Cable Connector Male Female Over Molding With Screw Locking
Product Description 1. IP68 waterproof connector 2. Over molding type with cable 3. Screw locking type for quick installation 4. Cable length and specification can be customized as per customer's requirement 5. Waterproof male female connector using for LED lighting
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M16
Pin
2-12 Pin
IP Rating
IP67
Rated Current
15A
Rated Voltage
250V
Product Series
M16
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Cable-to-cable transitions in outdoor and industrial equipment
- Harness assemblies that need strain relief and overmold planning
- Projects targeting IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 15A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M16 300V 15A 3 Pin Waterproof Cable Connector Male Female Over Molding With Screw Locking?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67. Rated current references include 15A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M16 300V 15A 3 Pin Waterproof Cable Connector Male Female Over Molding With Screw Locking?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
