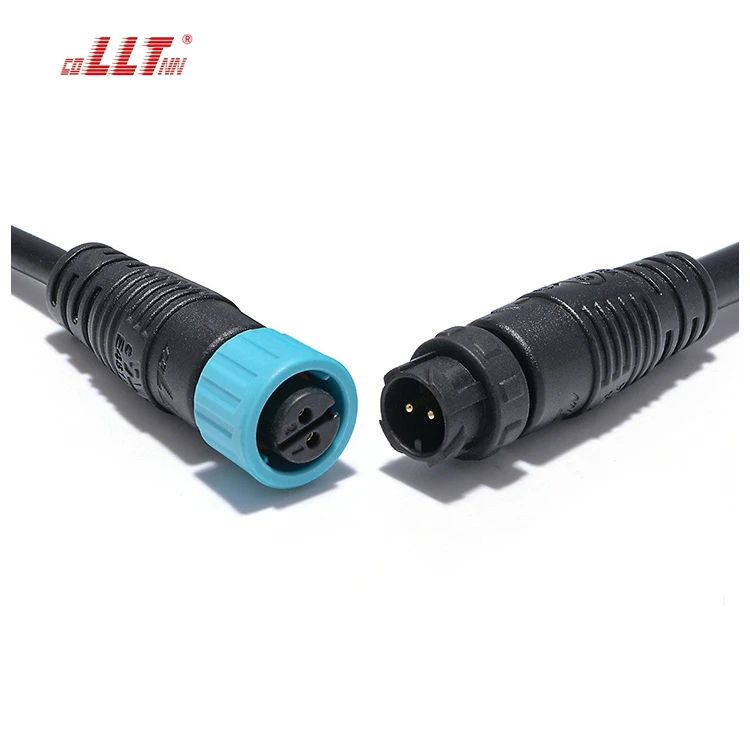

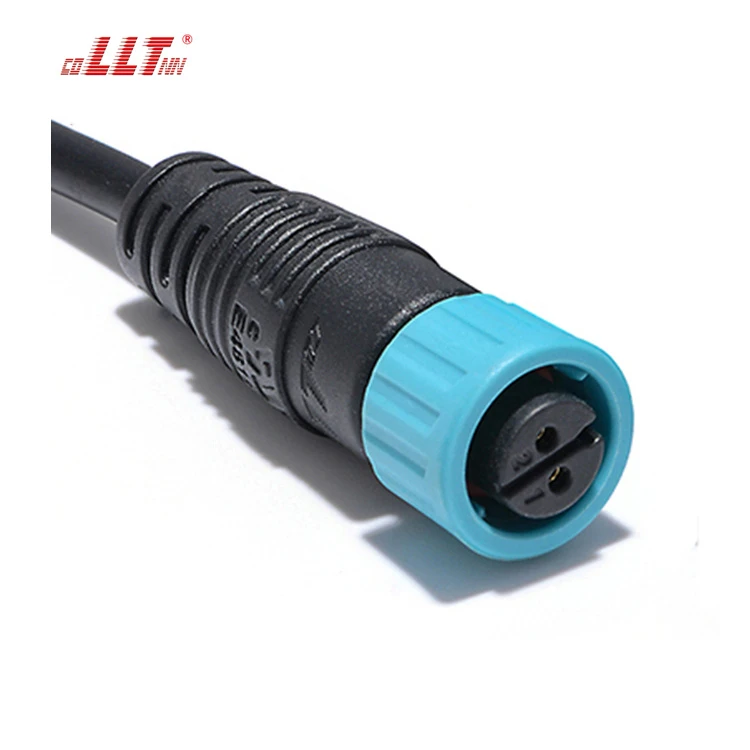

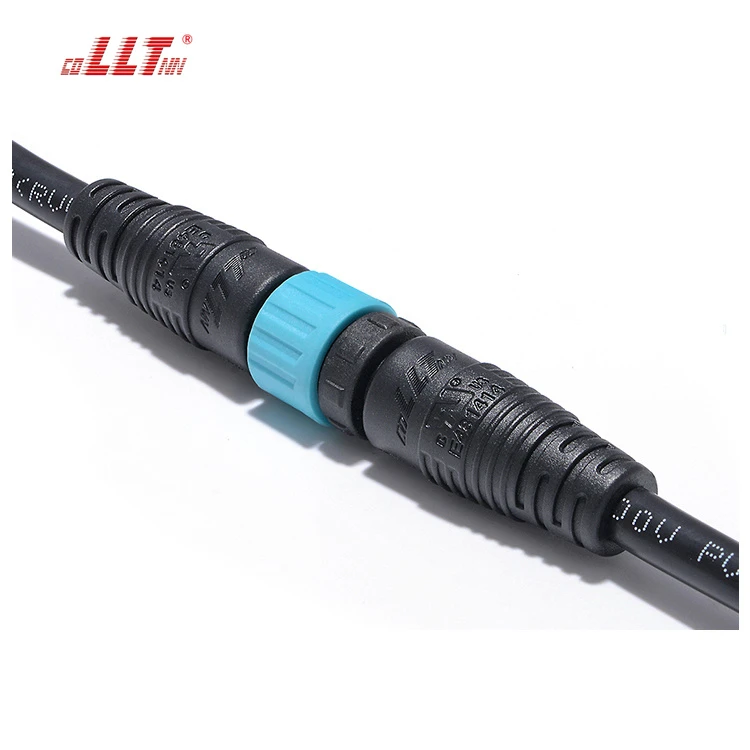

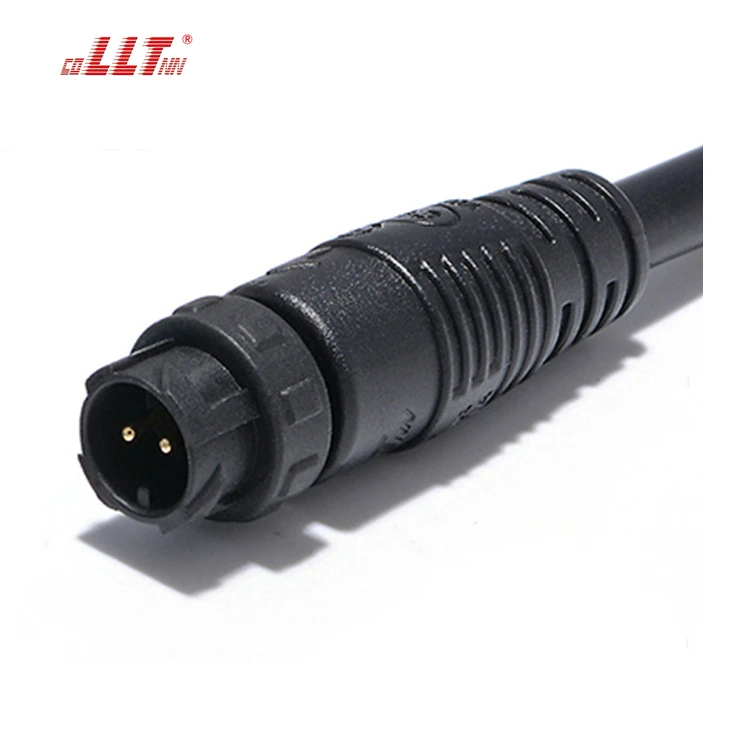

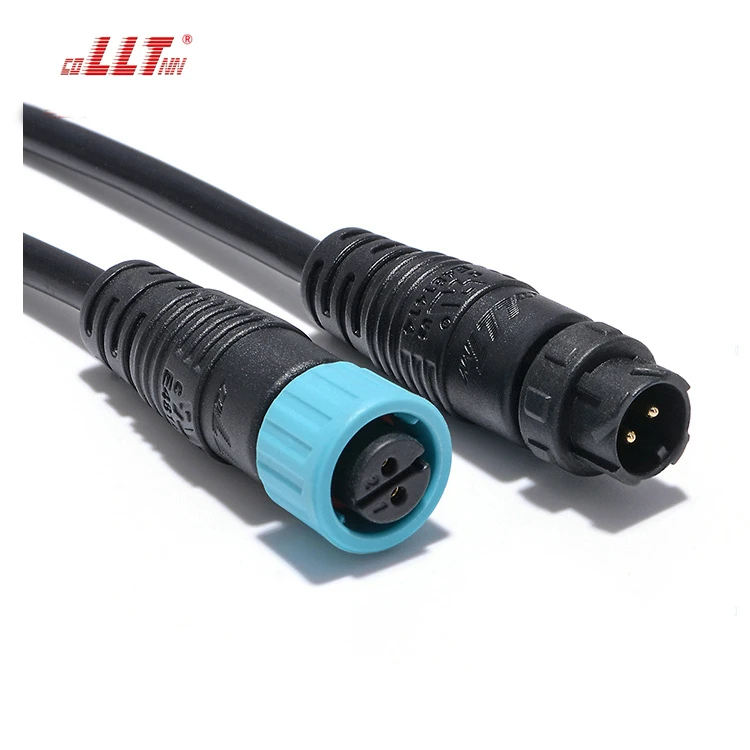

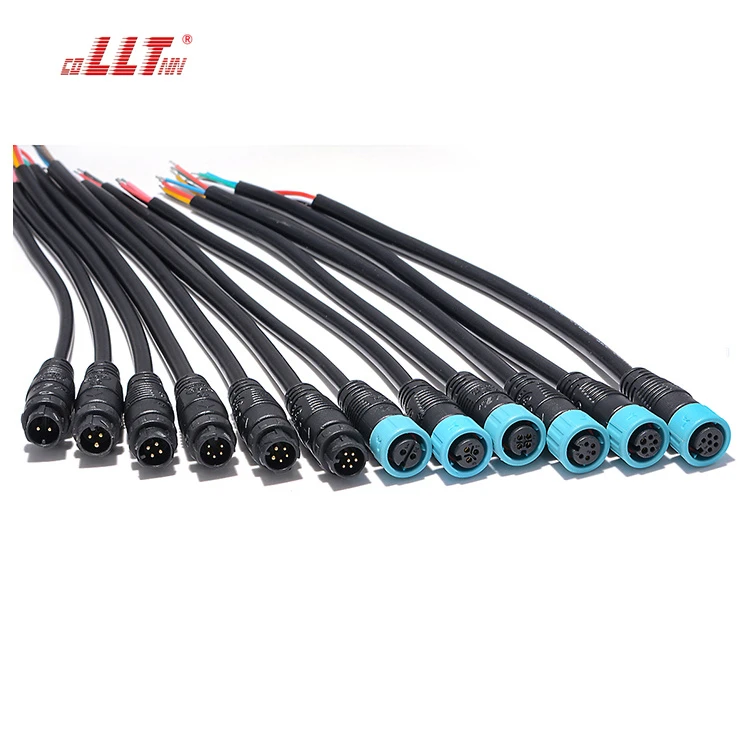

LLT M12 Push Lock Electric Plug Waterproof 2 3 4 5 6 7 8 Pin M12 Cable Connector for LED Lighting Outdoor
LLT M12 Push Lock Electric Plug Waterproof 2 3 4 5 6 7 8 Pin M12 Cable Connector for LED Lighting Outdoor is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP67, 10A current range, 2-12 pin layout.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
M12
Pin
2-12
IP Rating
IP67
Rated Current
10A
Rated Voltage
250V
Product Series
M12
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP67 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 10A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M12 Push Lock Electric Plug Waterproof 2 3 4 5 6 7 8 Pin M12 Cable Connector for LED Lighting Outdoor?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP67. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M12 Push Lock Electric Plug Waterproof 2 3 4 5 6 7 8 Pin M12 Cable Connector for LED Lighting Outdoor?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
