LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector

Name: LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M12-10002F3034

Waterproof Cable Connector M12 Push-Lock Model: LLT-M12-10002F3034

M12 / Push-Lock LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: TonyTang

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

This M12 2-pin circular connector features an integral overmolded cable design and a reliable self-locking structure, widely used for power and signal transmission in industrial control, sensors, LED lighting, automotive electronics and outdoor equipment. Key Features - Connector type: M12 push lock circular connector - Pin count: 2pin - Connection: Molded with cable, one-piece construction - Locking mode: Self-locking / push-lock type for secure mating - Protection level: IP67 / IP68 waterproof and dustproof - Housing material: High-strength engineering plastic - Contact material: Copper alloy with gold-plated pins - Operating temperature: -40°C to +105°C - Mechanical durability: ≥3000 mating cycles - Compliance: RoHS compliant Typical Applications - Industrial sensors and actuators - LED lighting and outdoor electrical equipment - Automotive and motorcycle wiring systems - Small power supply and DC power connection - Automation equipment and instrumentation

Application Fit

Typical application directions

Cable-to-cable transitions in outdoor and industrial equipment
Harness assemblies that need strain relief and overmold planning
Projects targeting IP65/IP67 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 10A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. Complex Multi-Branch Harness Management Harness and branch-management support for cable-ready projects.

Visual Gallery

Product details, interface geometry, and cable integration views

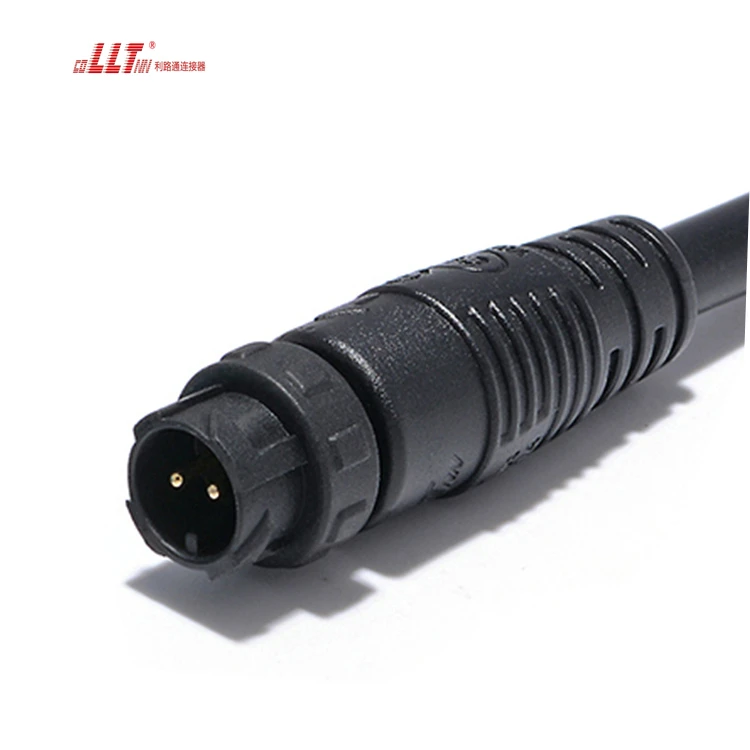

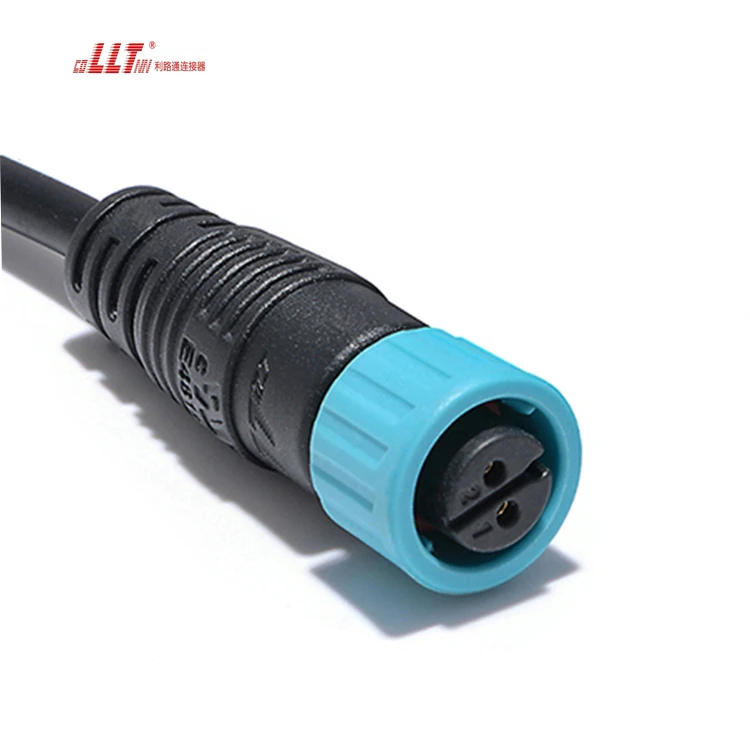

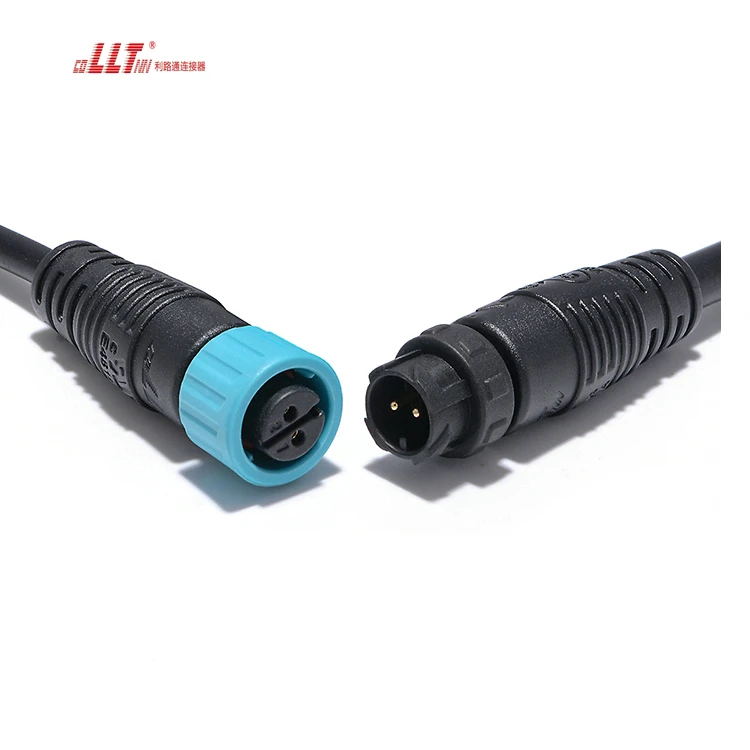

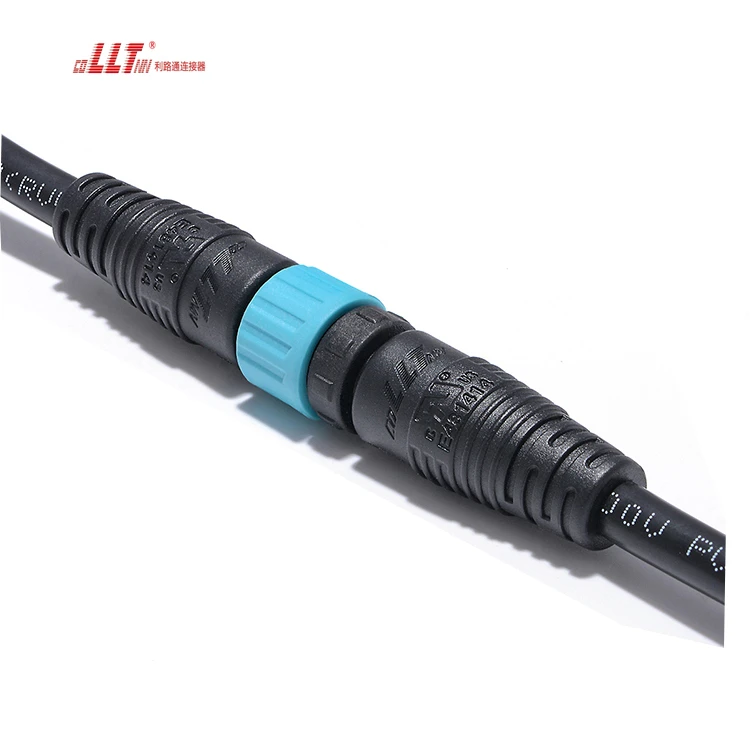

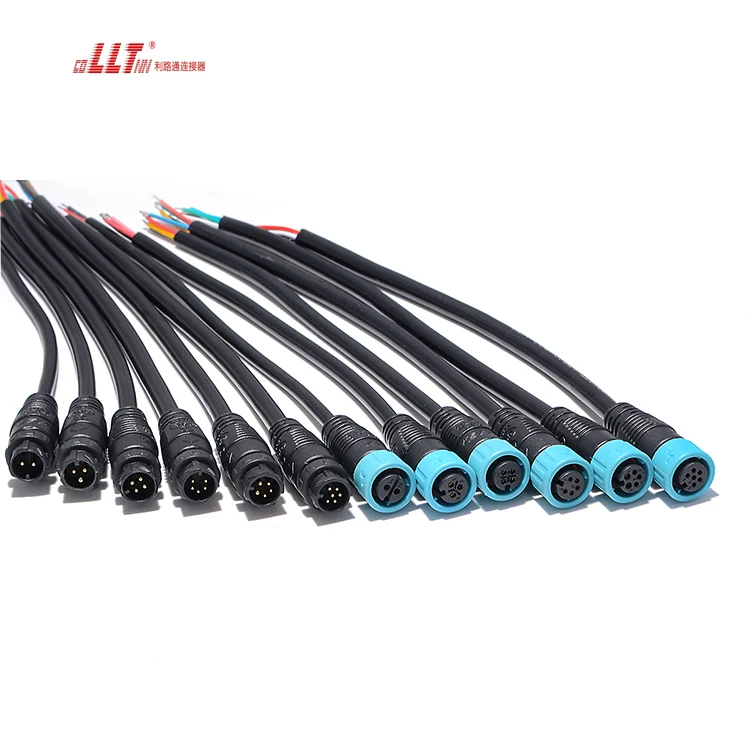

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 1

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 2

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 3

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 4

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 5

LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector gallery image 6

Compare nearby references in this family

Related Families

Move up to adjacent category pages

Waterproof Male Female Connector 13 published products Waterproof Plug Socket 9 published products Waterproof Wire Connectors 5 published products Waterproof Plug Connectors 4 published products

Technical FAQ

What should be confirmed before selecting LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector is currently configured around 2 to 8pin interface direction, so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP65/IP67. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT Factory 2pin M12 Electrical Wire IP67 Waterproof Battery Cable Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
