LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector is a published reference for energy storage cabinets, battery systems, and inverter platforms. The visible configuration highlights sealing around IP68, 20A current range, 2-18 pin layout. Termination direction is soldering or screw fixed, which should be checked against the actual harness build.

Power Connector M19 Push-Lock Model: LLT-M19-20003F1031
M19 / Push-Lock LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 11mm

Pin

2-18

IP Rating

IP68

Rated Current

20A

Rated Voltage

600V

Product Series

M19

Wiring Type

Soldering or screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Waterproof Connectors: 1. We have almost all the pins from 2 to 18 pin, they can transmit power and signals. 2. Good quality, they are certificated by UL,CE,TUV,CQC,RoHS,IP67/IP68. Its quality can pass other certification standards if you want to do it. 3. Both push locking and screw locking are optional. 4. Plenty of options, field assembly connector(straight through & 90 degrees), molded with cable connector(straight through, 90 degrees and T connector), USB and RJ45 connector, 2/3/4 way field assembly connector, circular/square/rhombus socket. 5. Free combination, connect them by male female or panel mount as you like. 6. OEM & ODM are always welcome

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 20A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

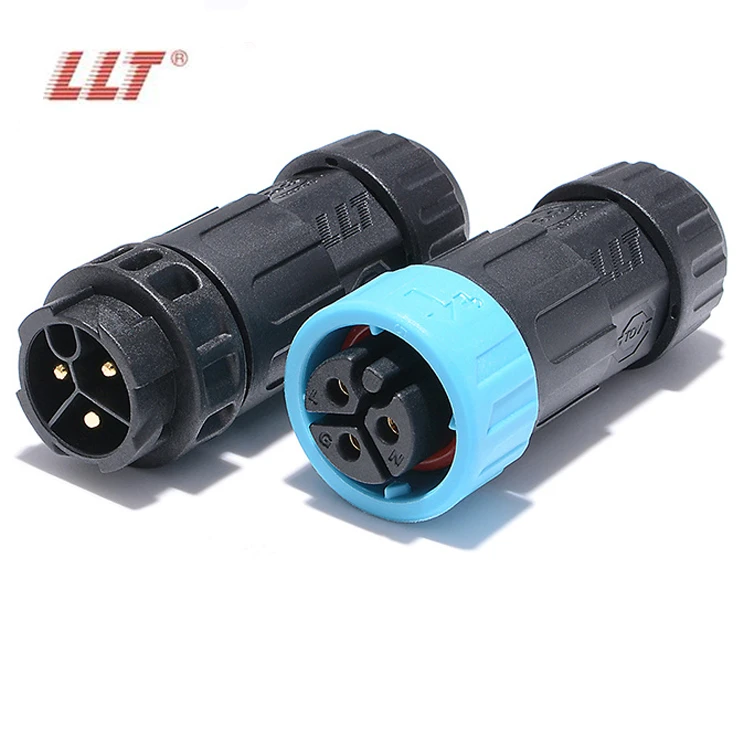

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 1

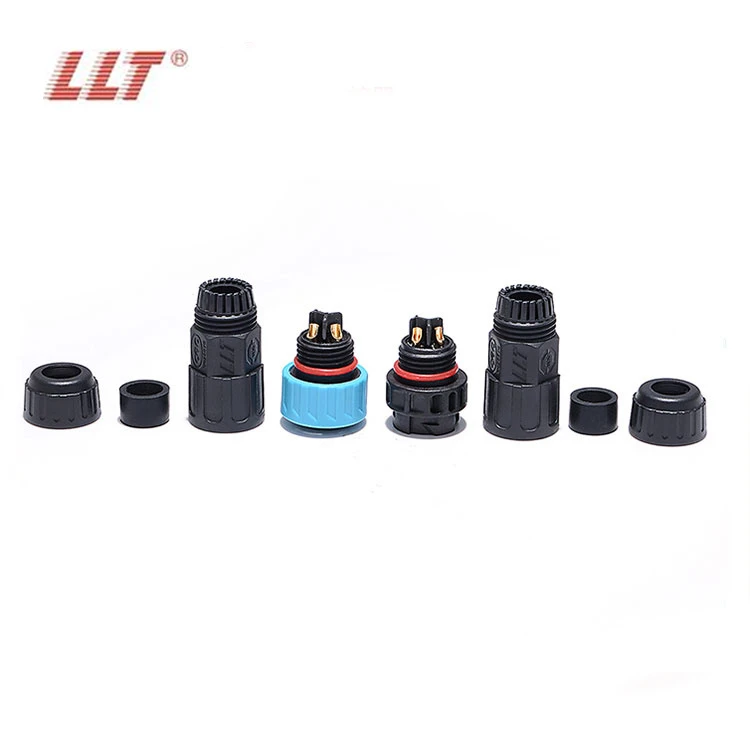

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 2

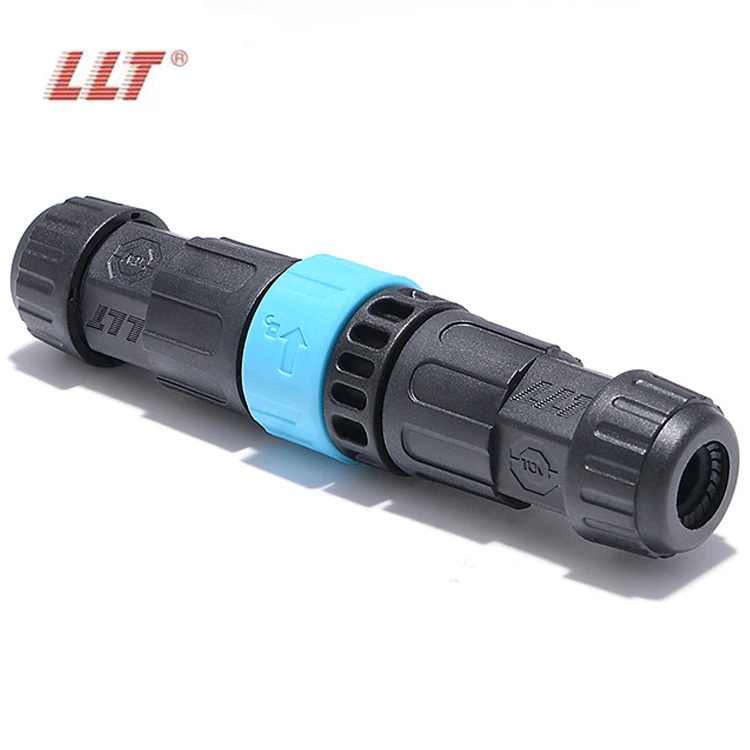

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 3

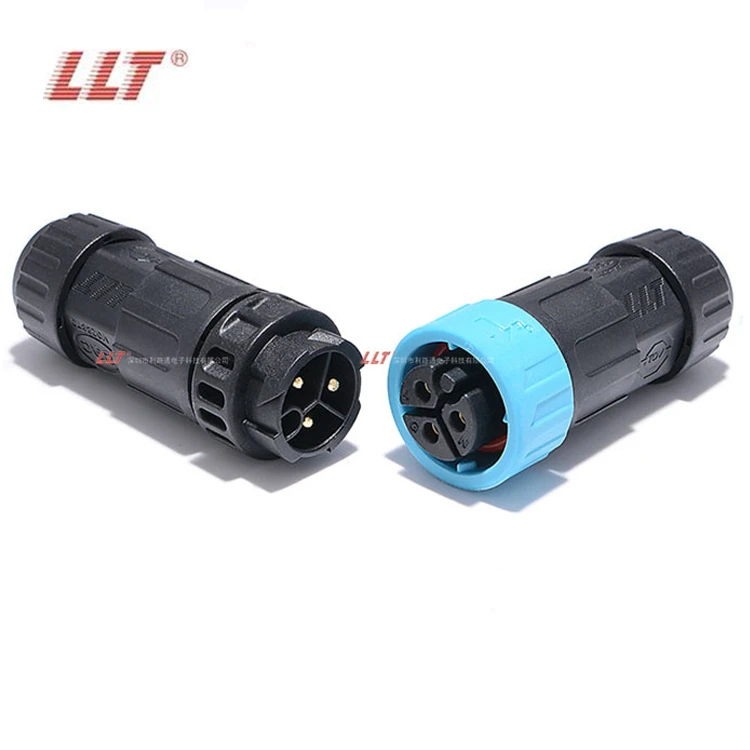

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 4

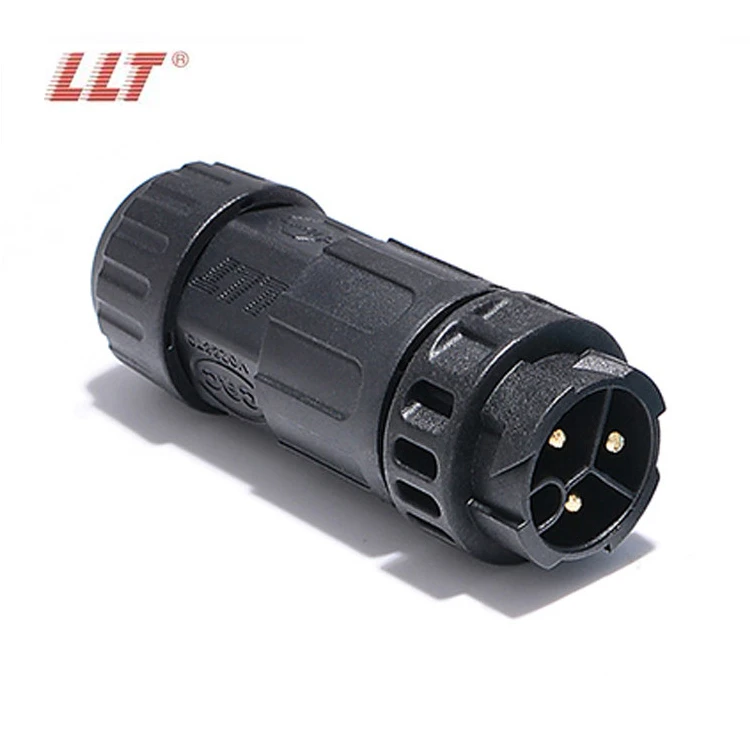

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 5

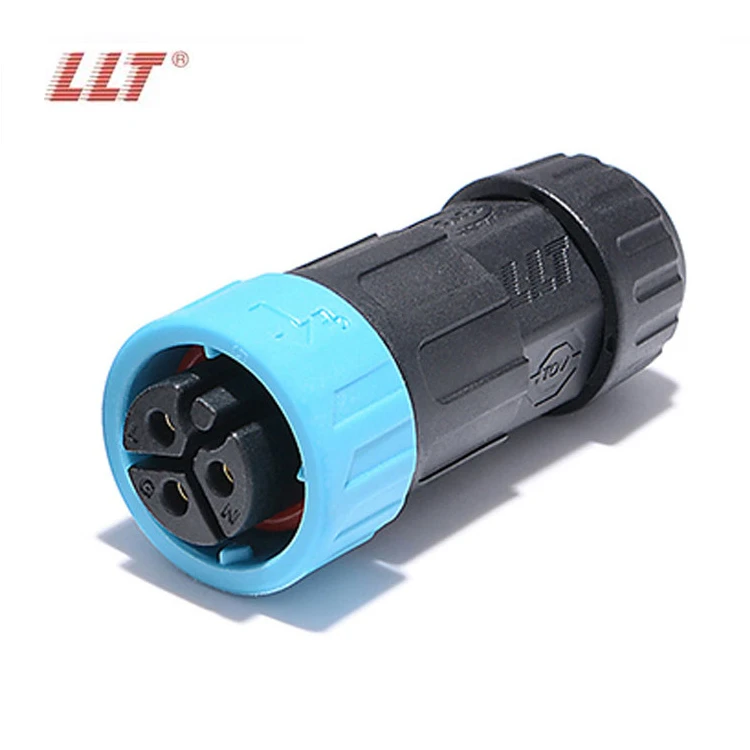

LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector gallery image 6

Technical FAQ

What should be confirmed before selecting LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M19 600V 20A 2 3 4 Pin IP67 IP68 Waterproof Male Female Connector Electric LED Growing Light Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
