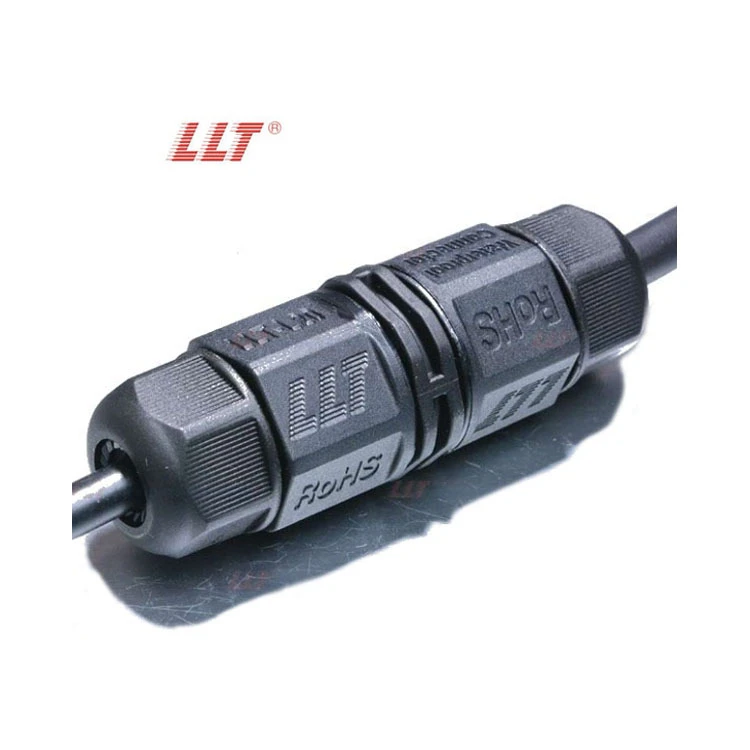

L20 3-Pole Screw Fixing Straight Waterproof Connector IP Connector Cable Joiner
L20 3-Pole Screw Fixing Straight Waterproof Connector IP Connector Cable Joiner is a published reference for cable-to-cable transitions in outdoor and industrial equipment. The visible configuration highlights sealing around IP68, 20A current range, 3P pin layout. Termination direction is screw fixing, which should be checked against the actual harness build.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: PeterPan
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
10mm
Pin
3P
IP Rating
IP68
Rated Current
20A
Rated Voltage
300V
Product Series
L20
Wiring Type
Screw fixing
Mating Cycles
≥3000 times
Complies with product certification:
System certification:
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A current requirements.
Technical Resources
Catalog and supporting references
Visual Gallery

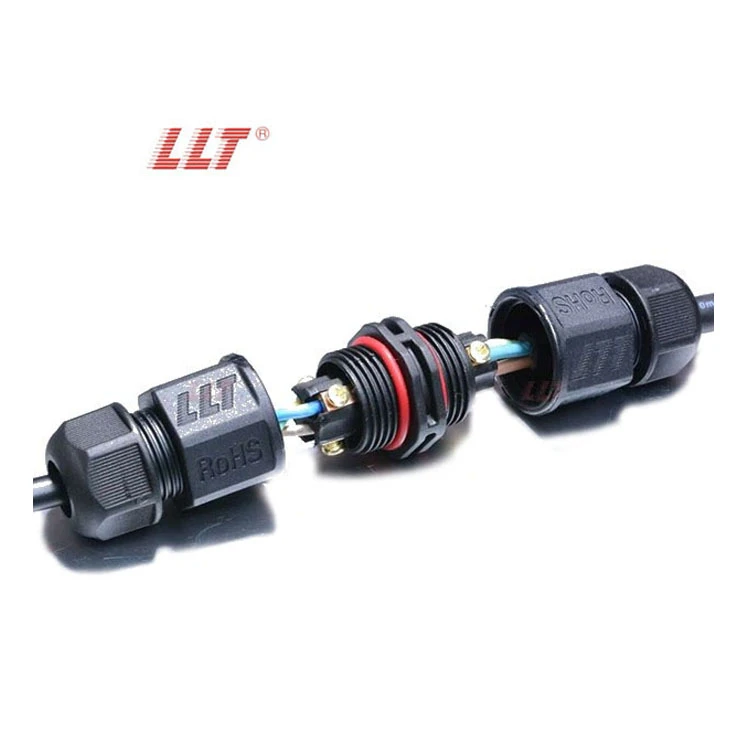

Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting L20 3-Pole Screw Fixing Straight Waterproof Connector IP Connector Cable Joiner?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for L20 3-Pole Screw Fixing Straight Waterproof Connector IP Connector Cable Joiner?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
