LLT M19 Push Lock Waterproof 5 Pin Male Female Connector Assembly Type For Landscape Lights
The M19 Waterproof Aviation Connector provides a secure, industrial-grade seal for power connections. Designed for ease of use, the solderless screw terminal design allows you to create professional-grade, weatherproof connections in minutes, saving significant time during field installations and repairs. This robust connector set is built for performance and longevity. It features a high-strength PA66 Nylon shell and gold-plated brass hardware to ensure optimal signal and power transmission. With an IP68 waterproof rating and a wide operating temperature range of -40°C to 105°C, it is the perfect solution for outdoor LED lighting, marine electronics, and industrial automation systems. Voltage/Current: 600V / 20A for 2-4Pin,100V 5A for multi Pin Pin Configuration: 2-18Pin (Male/Female set) Materials: PA/Nylon Housing, Gold-Plated Brass Pins Cable Range: Φ6.3mm to Φ11mm Interface: AC/DC Compatible
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 11mm
Pin
2-18 Pin
IP Rating
IP68
Rated Current
20A
Rated Voltage
600V
Product Series
M19
Wiring Type
Soldering or screw fixed
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Energy storage cabinets, battery systems, and inverter platforms
- Power distribution interfaces in outdoor electrical equipment
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 20A current requirements.
Technical Resources
Catalog and supporting references

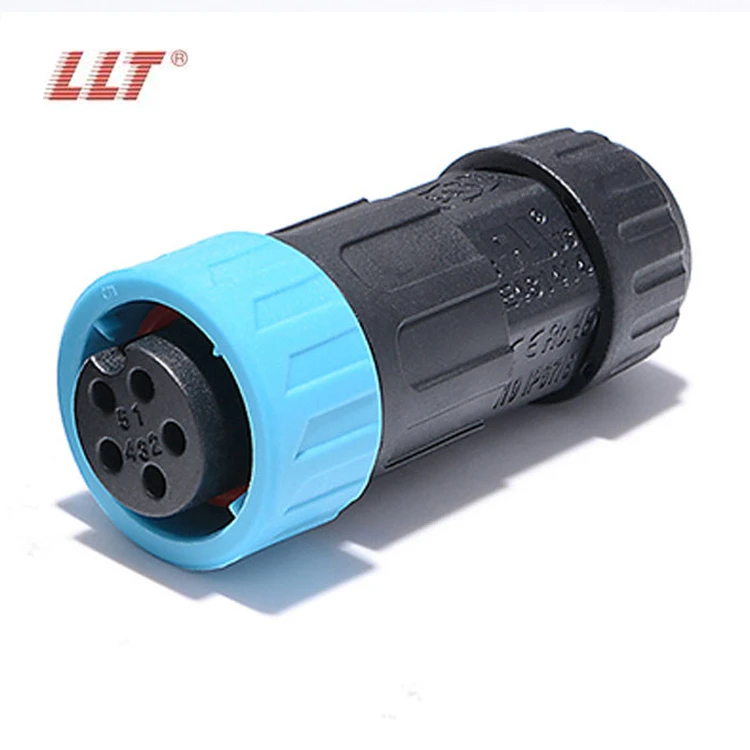

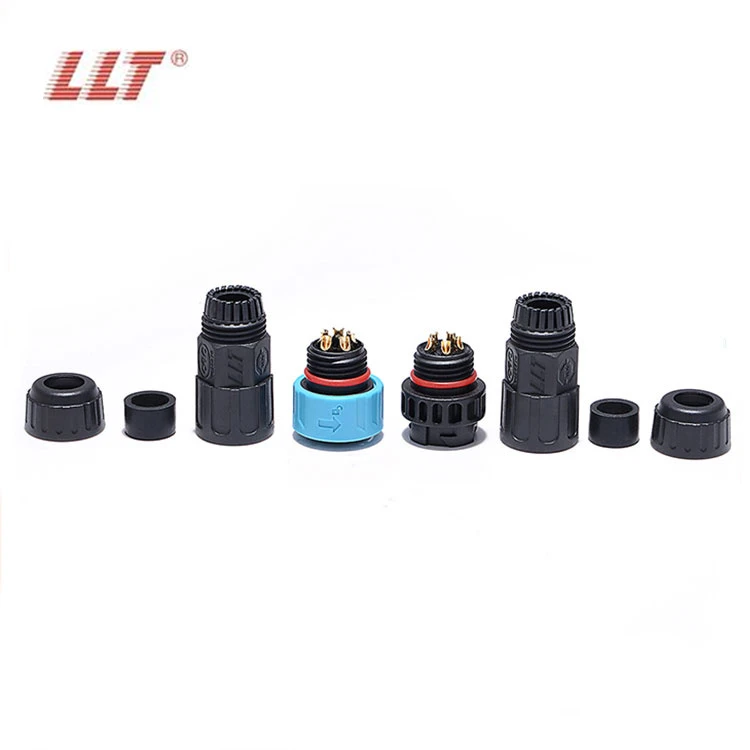

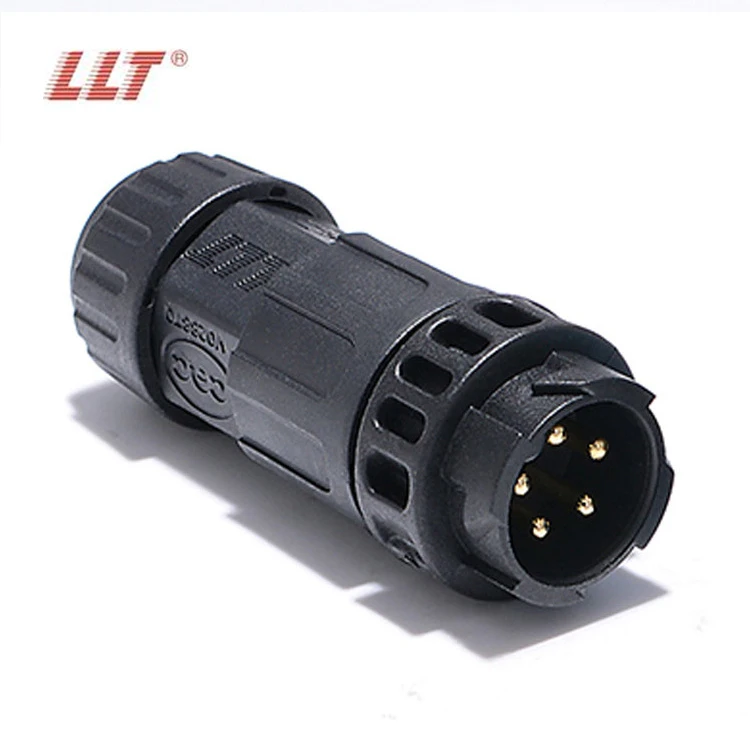

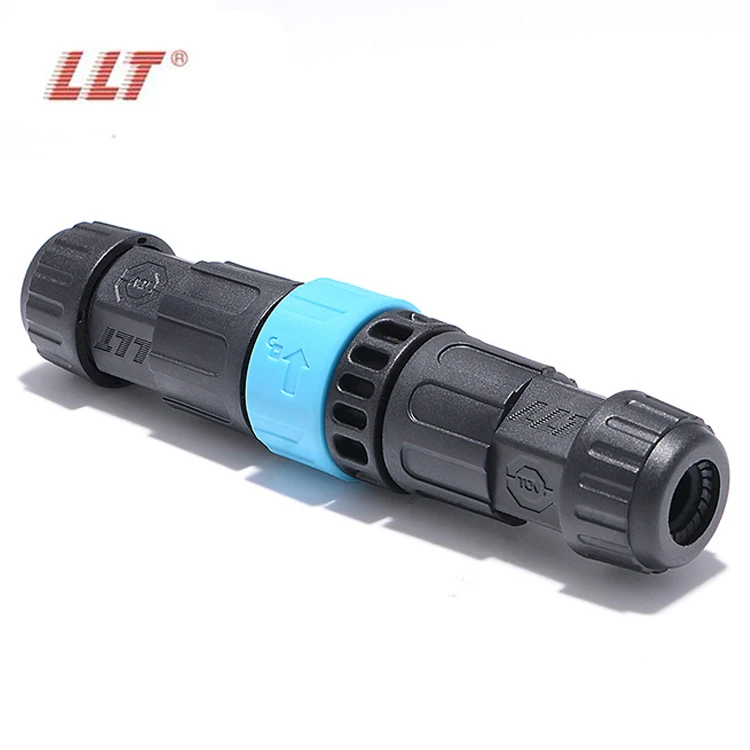

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M19 Push Lock Waterproof 5 Pin Male Female Connector Assembly Type For Landscape Lights?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 20A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M19 Push Lock Waterproof 5 Pin Male Female Connector Assembly Type For Landscape Lights?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
