LLT M19 Panel Type Waterproof Data Connector IP67 5A 14 Pin Male Female Plug With Socket
M19 Panel mount type waterproof connectors could be well installed via screw on PCB, plastic case, control box, easy to assemble and disassemble it. Dust cap is available to protect it when off working.
Request Product Contact
Reveal the sales contact linked to this product page for quotation and technical discussion.
Publisher: HannahHe
Please share your project requirement and quantity for quotation.
Technical Specs
Product Size
MAX. cable OD. 11mm
Pin
2-18 Pin
IP Rating
IP68
Rated Current
5A
Rated Voltage
100V
Product Series
M19
Complies with product certification:
System certification:
Product Overview
Connector application and structure details
Application Fit
Typical application directions
- Industrial Ethernet links in outdoor or washdown-prone equipment
- Control cabinets, gateways, and monitoring nodes that need ingress protection
- Projects targeting IP68 sealing performance and repeatable field mating.
- Applications that need a connector architecture aligned with 5A current requirements.
Technical Resources
Catalog and supporting references

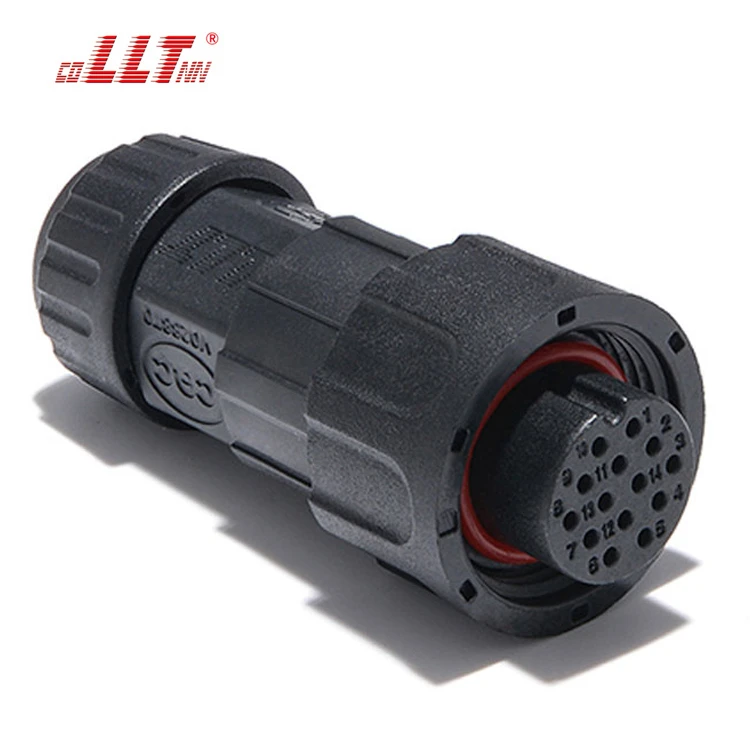

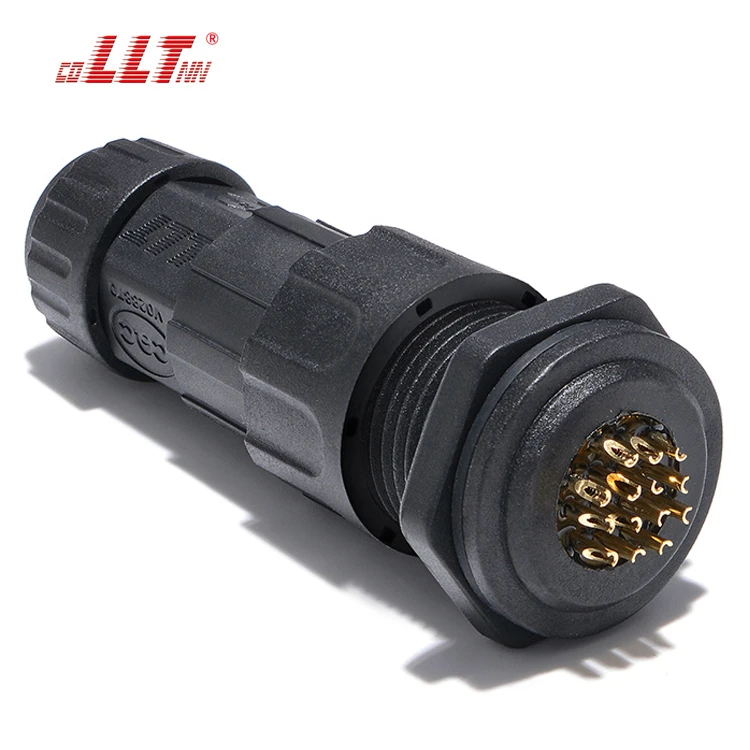

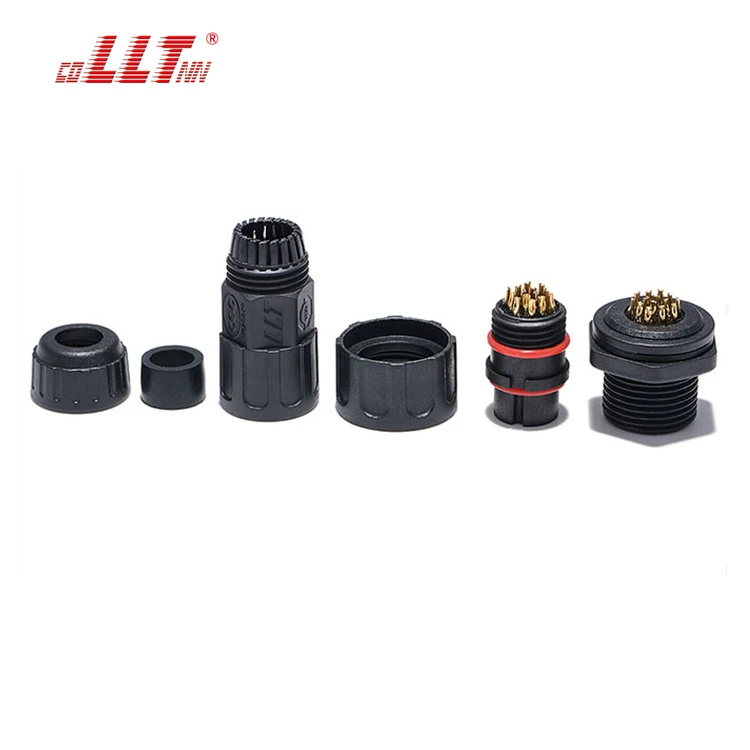

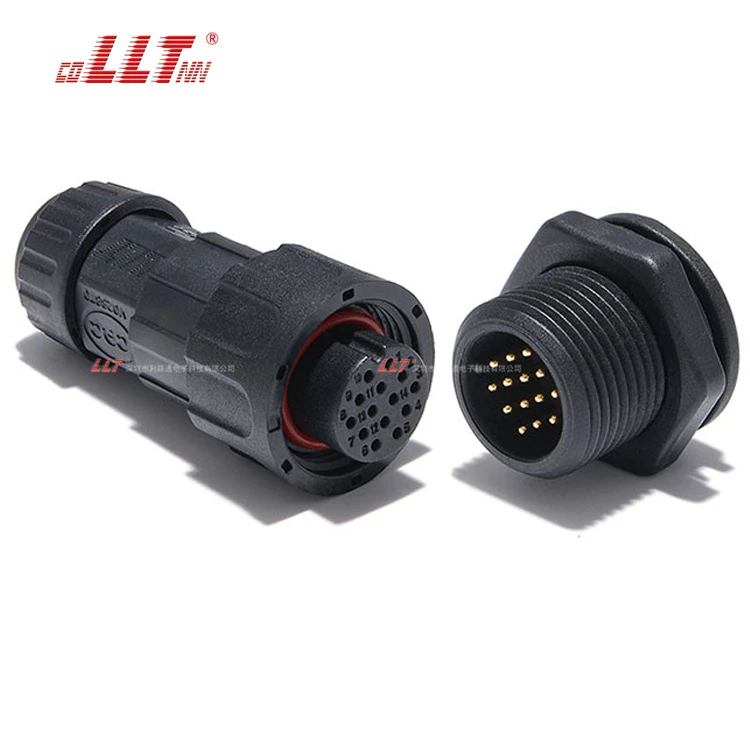

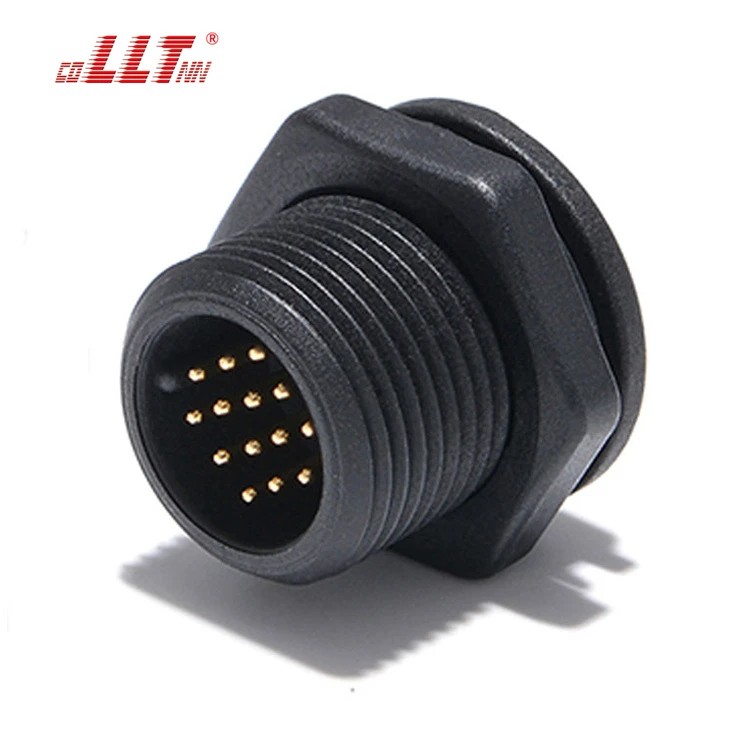

Visual Gallery
Product details, interface geometry, and cable integration views
Related Products
Compare nearby references in this family
Related Families
Move up to adjacent category pages
Technical FAQ
What should be confirmed before selecting LLT M19 Panel Type Waterproof Data Connector IP67 5A 14 Pin Male Female Plug With Socket?
Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.
Which technical details matter most for this model?
Ingress protection in the current profile is listed as IP68. Rated current references include 5A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.
Can LLT support related cable assembly or customized integration for LLT M19 Panel Type Waterproof Data Connector IP67 5A 14 Pin Male Female Plug With Socket?
Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.
Need a quote, sample review, or cable-assembly discussion?
Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
