LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors

Waterproof Design: IP68 rated for use in wet environments. Secure Fit: Designed for reliable connections in demanding industrial applications. High Durability:Built to withstand harsh conditions and heavy use. Copper Connectors:Ensures robust electrical performance and longevity. Round Shape: Optimized for compact installation and easy handling.

Power Connector M29 Threaded Model: LLT-M29-50003F1052
M29 / Threaded LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors

Connector Gallery

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Product Size

MAX. cable OD. 15mm

Pin

2-36

IP Rating

IP68

Rated Current

50A

Rated Voltage

600V

Product Series

M29

Wiring Type

Soldering or screw fixed

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

Feature: * Multi pin optional: 2~36pin * IP67 rating, ensure your safety (waterproof & shockproof & dustproof) * Certificated by UL, CE, TUV, CQC, RoHS * PA66 material, suitable for harsh environment (antiflaming & antioxidant) * Free combination, field assembly or molded with cable, male/female/socket. * After-sale guarantee, 1 years warranty * Quality guarantee, full inspection of incoming materials, and at least 3~6 full inspections during the production process according to field assembly series or molded with cable series

Application Fit

Typical application directions

  • Energy storage cabinets, battery systems, and inverter platforms
  • Power distribution interfaces in outdoor electrical equipment
  • Projects targeting IP68 sealing performance and repeatable field mating.
  • Applications that need a connector architecture aligned with 50A current requirements.

Visual Gallery

Product details, interface geometry, and cable integration views

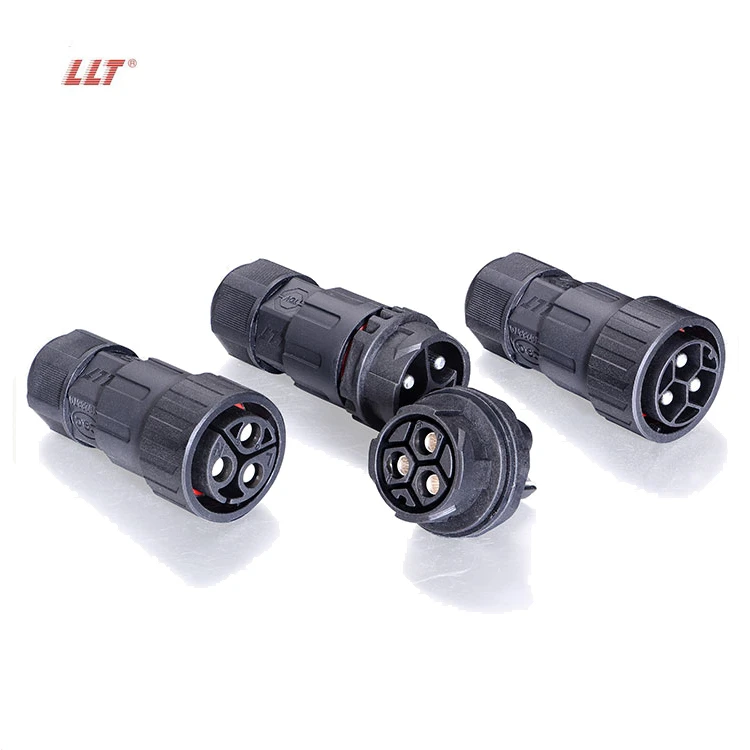

LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors gallery image 1

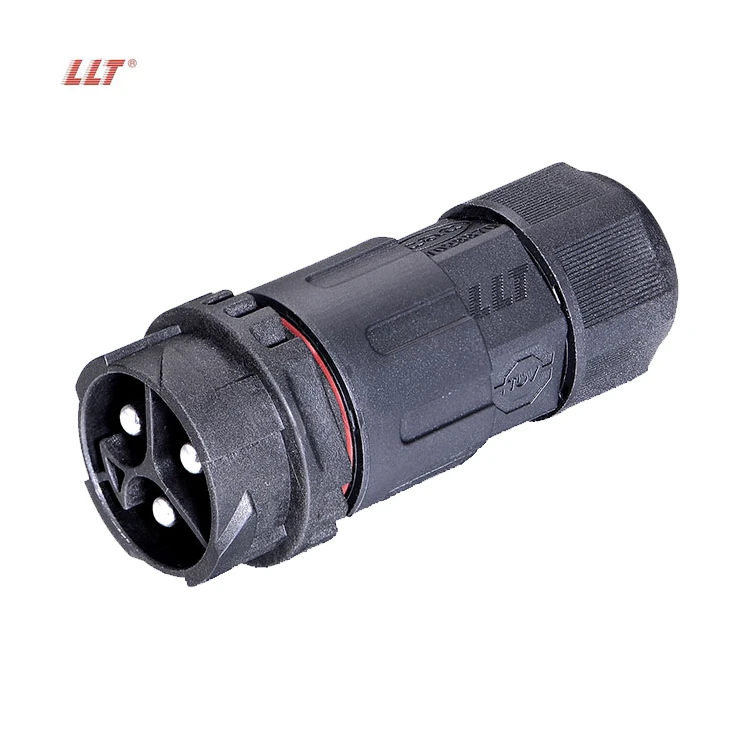

LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors gallery image 2

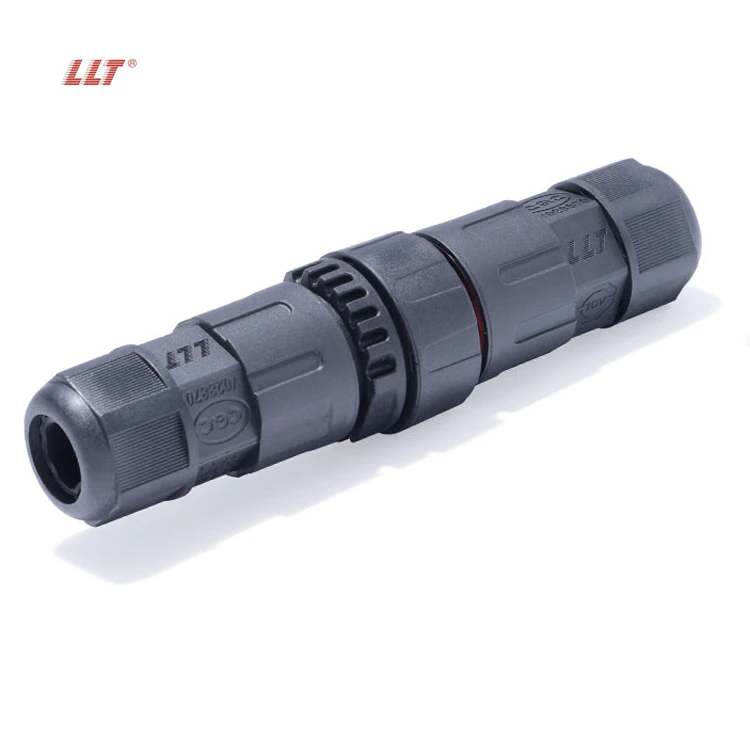

LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors gallery image 3

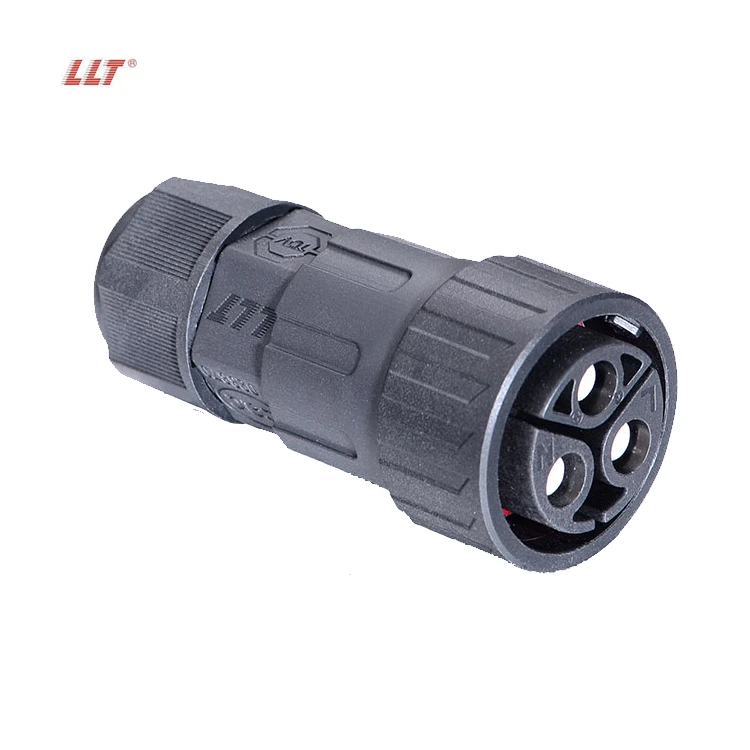

LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors gallery image 4
LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors gallery image 5

Technical FAQ

What should be confirmed before selecting LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 50A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT M29 Waterproof IP67 Connector 2 3 4 Pin High Voltage Power Connector 50A Current Power Storage Batteries Connectors?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
