LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector

Name: LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector
Brand: Shenzhen LLT Connector Co., Ltd.
SKU: LLT-M12-10002M2861

10A Waterproof Connectors M12 Threaded Model: LLT-M12-10002M2861

M12 / Threaded LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector

Request Product Contact

Reveal the sales contact linked to this product page for quotation and technical discussion.

Publisher: HannahHe

Please share your project requirement and quantity for quotation.

Technical Specs

Complies with product certification:

UL TUV CQC CE RoHS REACH

System certification:

IATF 16949 ISO 13485 ISO 9001 ISO 14001 ISO 50001 ISO 45001

Product Overview

Connector application and structure details

IP68 Waterproof Aviation Plug & Socket Connector Features • IP68 Waterproof & Dustproof – Ideal for harsh outdoor environments • 2/3-Pin Male-Female Configurations – Flexible wiring solutions • Panel Mount with Front/Back Nut – Secure locking mechanism • Screw Terminal Wiring – Easy and reliable installation • Aviation-Grade Durability – Reinforced PA66 shell with copper contacts Technical Specs • Model: M12 Series • Pins: 2-12Pin (male/female pairs) • Rated Current: 10A • Rated Voltage: 250V AC/DC • Material: Flame-retardant PA66 + Copper terminals • IP Rating: IP68 (submersible up to 1m for 30 mins) • Mounting Type: Panel-mounted • Temperature Range: -25°C to +85°C • Certification: CE, RoHS compliant Applications • Industrial control cabinets • Outdoor LED lighting systems • Solar power equipment • Marine and RV electrical systems • Heavy machinery and robotics • Harsh environment power connections

Application Fit

Typical application directions

Energy storage cabinets, battery systems, and inverter platforms
Power distribution interfaces in outdoor electrical equipment
Projects targeting IP68 sealing performance and repeatable field mating.
Applications that need a connector architecture aligned with 10A current requirements.

Technical Resources

Catalog and supporting references

LLT Connector Master Catalog Overview catalog for core connector families and manufacturing capability. Miniature Power and Signal Connectors Reference for compact circular connector families and mixed power-signal layouts. PV and Energy Storage Multi-Core High Current Connectors Connector direction for PV, inverter, and energy-storage projects.

Visual Gallery

Product details, interface geometry, and cable integration views

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 1

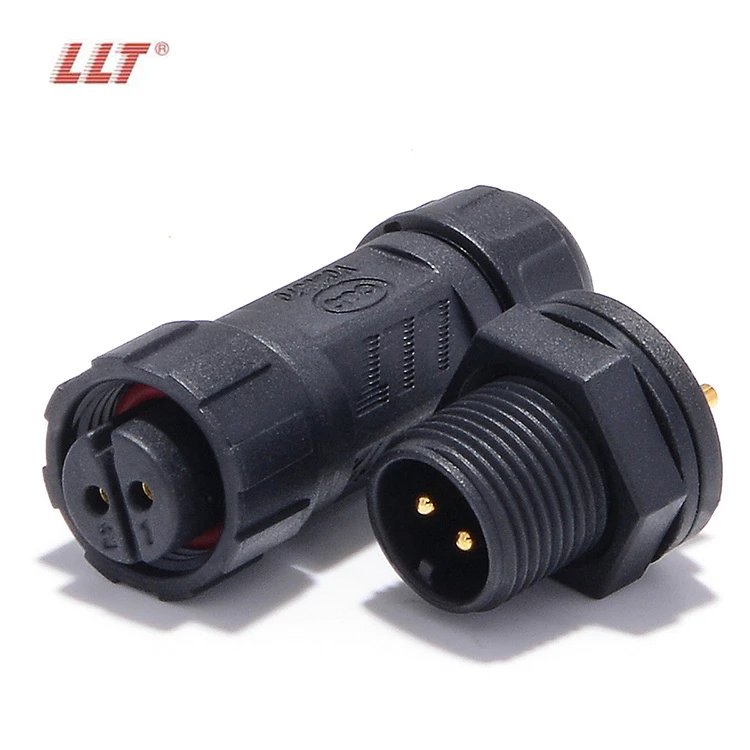

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 2

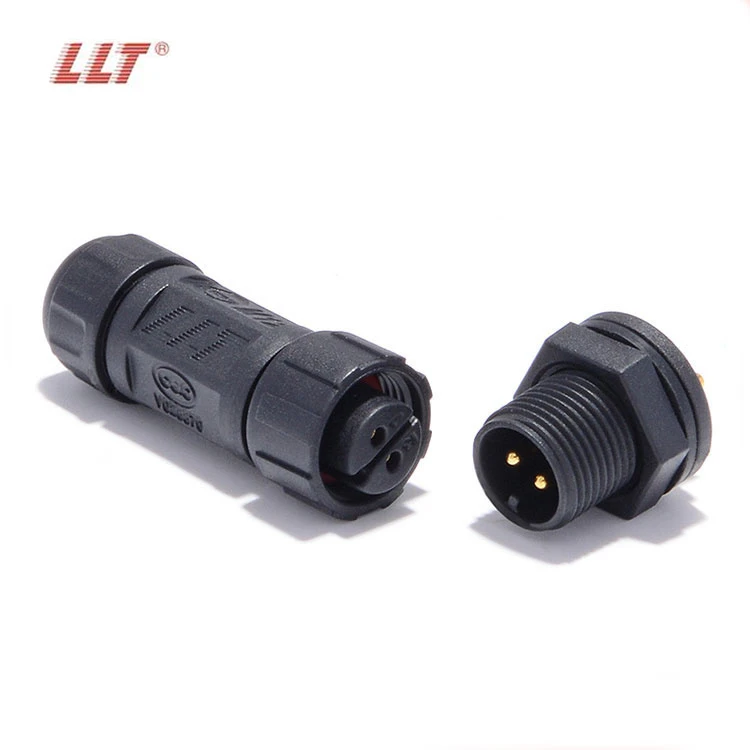

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 3

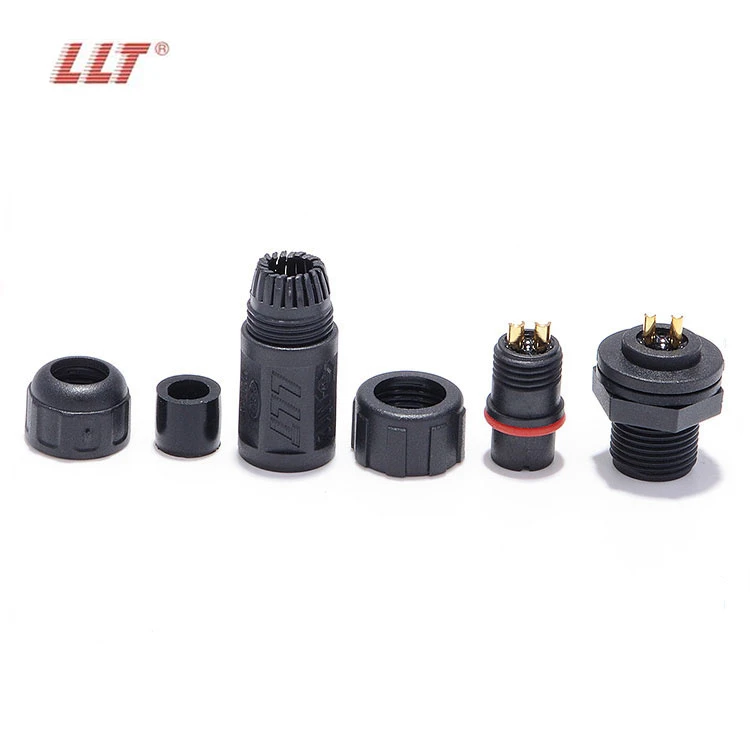

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 4

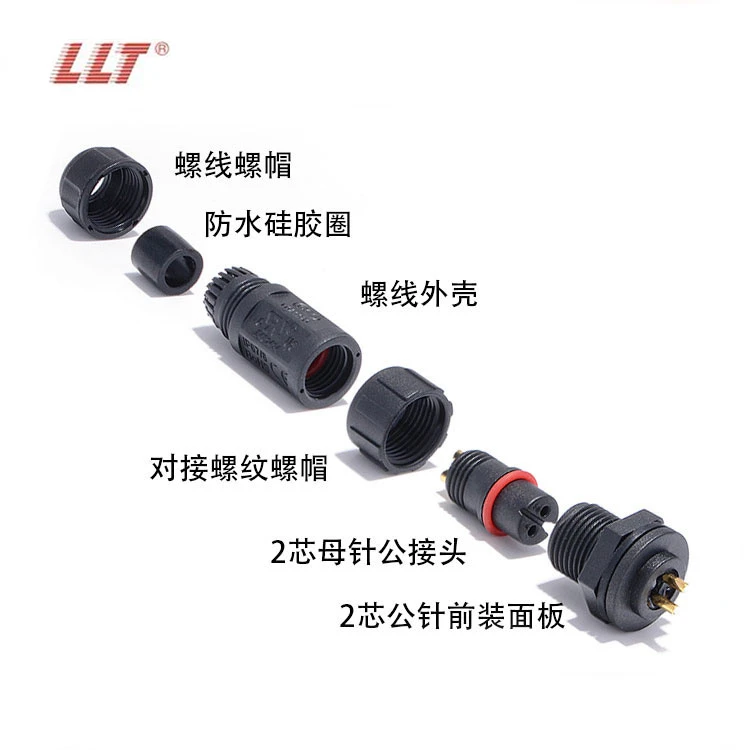

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 5

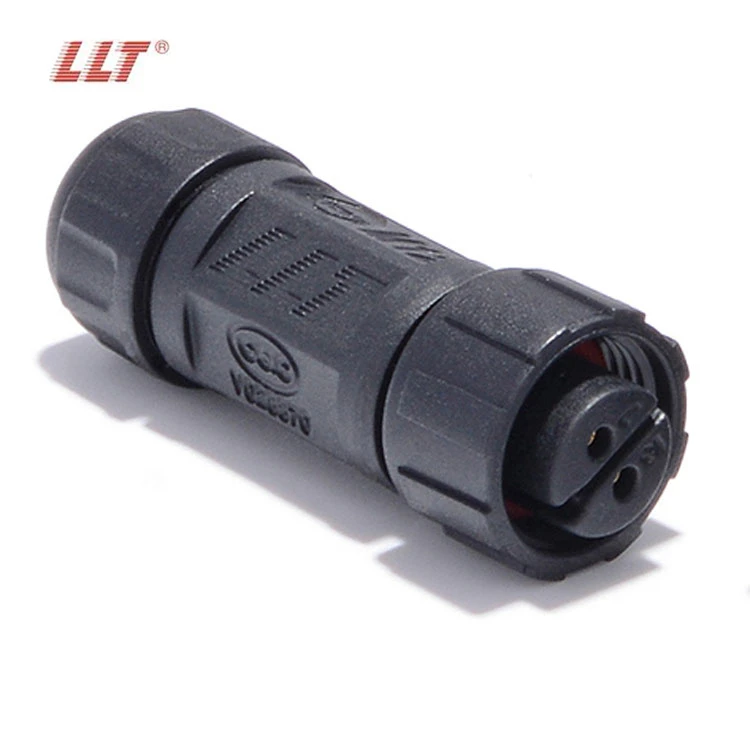

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 6

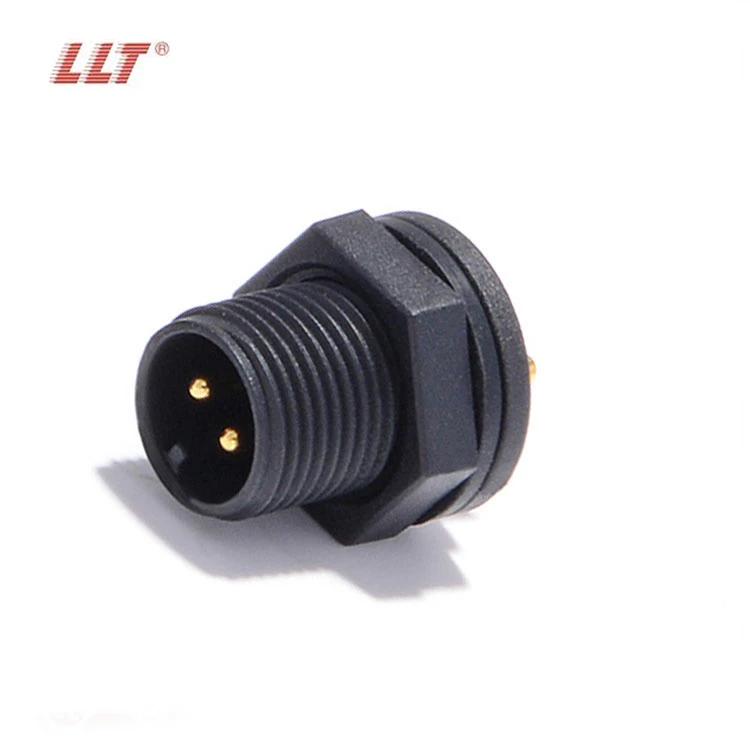

LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector gallery image 7

Compare nearby references in this family

Related Families

Move up to adjacent category pages

20A Waterproof Connectors 11 published products High Current Waterproof Connectors 10 published products Waterproof Power Connector 9 published products Waterproof Circular Connectors 41 published products

Technical FAQ

What should be confirmed before selecting LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector?

Confirm the sealing target, panel or cable interface, electrical load, and maintenance method together. so the enclosure fit and mating environment should be checked before final approval.

Which technical details matter most for this model?

Ingress protection in the current profile is listed as IP68. Rated current references include 10A. Review pin layout, termination method, cable OD, and lock structure together rather than choosing only by shell size or model name.

Can LLT support related cable assembly or customized integration for LLT 110V 10A M12 IP68 Male Female 2 3 4 Pin Panel Mounting Low Voltage Waterproof Connector?

Yes. LLT can discuss cable exit direction, overmolding, harness routing, and adjacent product alternatives when this model is part of a wider equipment interface or custom assembly project.

Need a quote, sample review, or cable-assembly discussion?

Share your sealing target, electrical range, enclosure interface, and cable constraints. LLT can help compare this model with adjacent options and plan the next engineering step.
